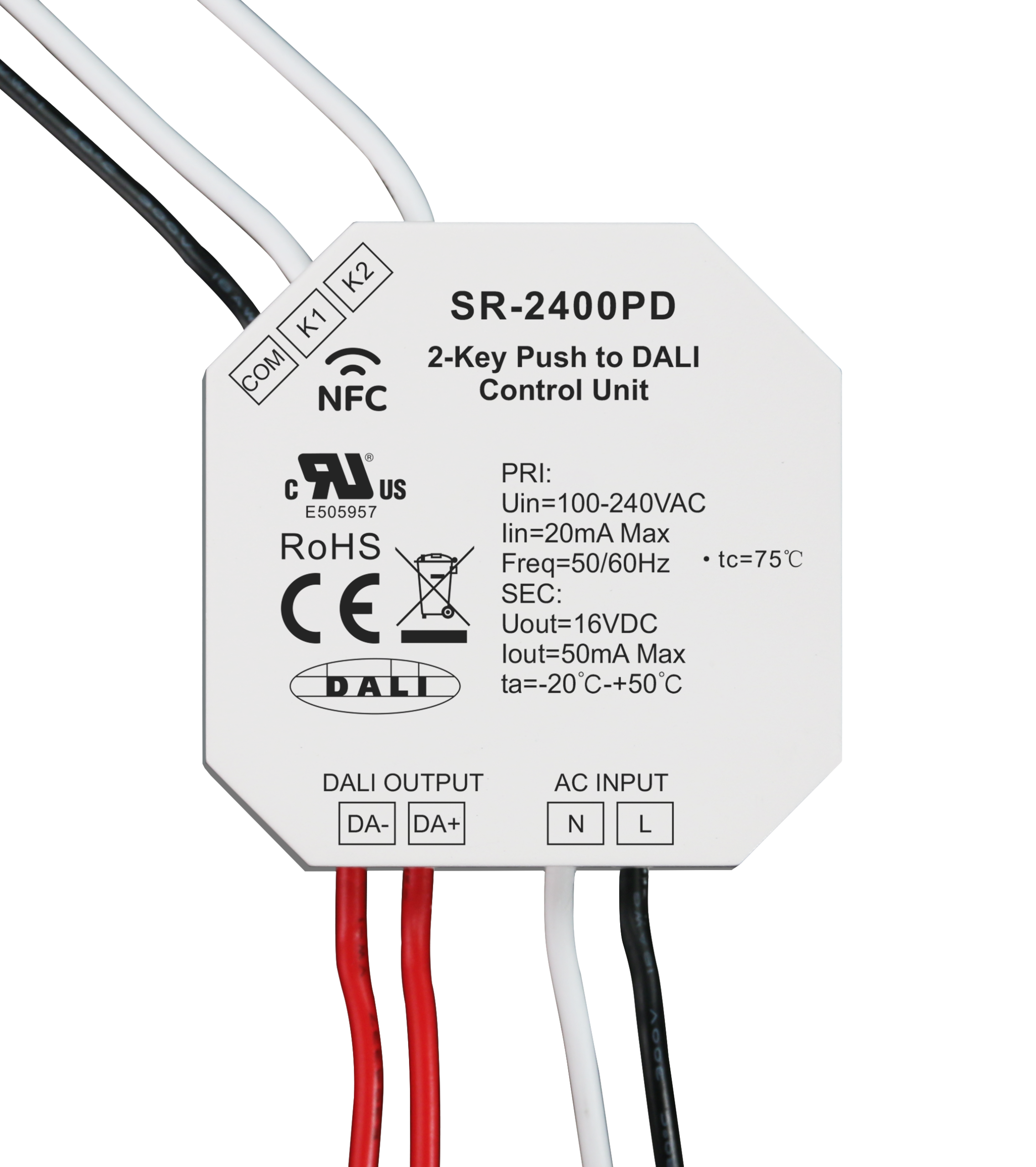

2 Tuşlu Basmalı DALI Kontrol Ünitesi DALI Basmalı Düğme / Kuru Kontak Hareket Sensörü Bağlayıcı NFC Programlanabilir SR-2400PD

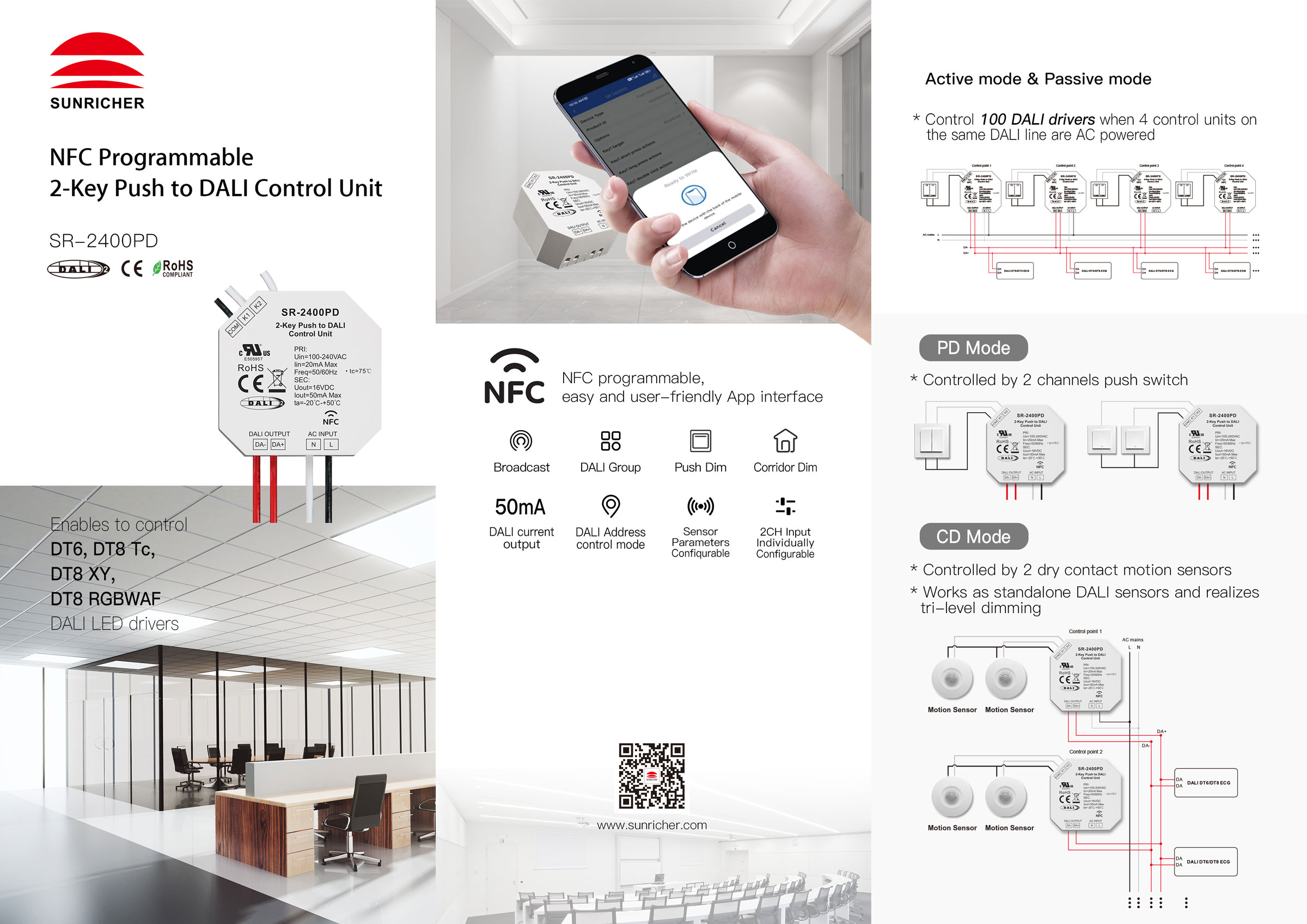

The NFC programmable 2-key push to DALI control unit offers versatile lighting control with push switch or dry contact motion sensor inputs. It supports Push Dim (PD) and Corridor Dim (CD) modes, easily configurable via NFC. With built-in 50mA DALI bus power, it controls up to 25 DALI devices, or up to 100 when linked with four units on AC mains. Compatible with DT6, Tc, XY, and RGBWAF, it allows flexible broadcast, group, or single-device control. Each switch supports short press, long press, and double click, with customizable DALI commands via the NFC App for smart, scalable lighting management.

Product Features:

• NFC programmable 2-key push to DALI control unit
• 2 channels push switch input or dry contact motion sensor input
• PD (Push Dim) mode with push switch input or CD (Corridor Dim) mode with dry contact motion sensor input
• PD mode or CD mode can be set through NFC
• Can work as standalone DALI sensors when connecting with dry contact motion sensors and set as CD mode
• 100-240VAC power supply (active mode) or DALI bus powered (passive mode)
• Built-in 50mA DALI bus power supply to control up to 25 DALI DT6/DT8 control gears
• Up to 100 DALI control gears can be controlled while 4 control units connected to AC mains
• DALI current consumption less than 4mA
• Controlled DALI device type can be freely configured through NFC App
• Supported device types: DT6, Tc, XY coordinates, RGBWAF
• Controlled object of each push switch can be freely configured through NFC App
• Supports broadcast, single address, and group control
• Each push switch supports three different operations: short press, long press, double click
• DALI command triggered by the a push switch operation can be freely configured through NFC App
• Each DALI line can install multiple control units for multi control points
• Su geçirmezlik derecesi: IP20
