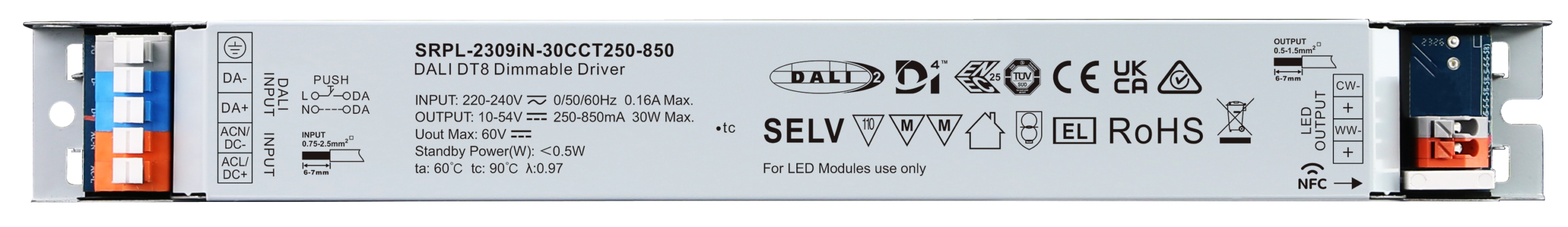

30W DALI D4i DT8 NFC LED Driver (Constant Current) SRPL-2309iN-30CCT250-850

SRPL-2309iN-30CCT250-850 is a D4i & DALI-2 certified linear metal casing 30W dimmable LED driver. It is designed with 2 channels constant current output with adjustable current from 250mA to 850mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC / 176-280VDC input. Power factor of the driver can be over 0.97 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise. One DALI address for two channels output can be manually assigned via “SR NFC Tool” APP or automatically assigned by DALI masters. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Başlıca Özellikler

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 30W
• 250-850mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• To switch and dim LED lighting luminaries, color temperature
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-250/251/252/253 Enabled, DALI data inside.
• Integrated Max.56mA DALI BUS supply,enabled to powered DALI-2 sensors.
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
• 5 yıl garanti
