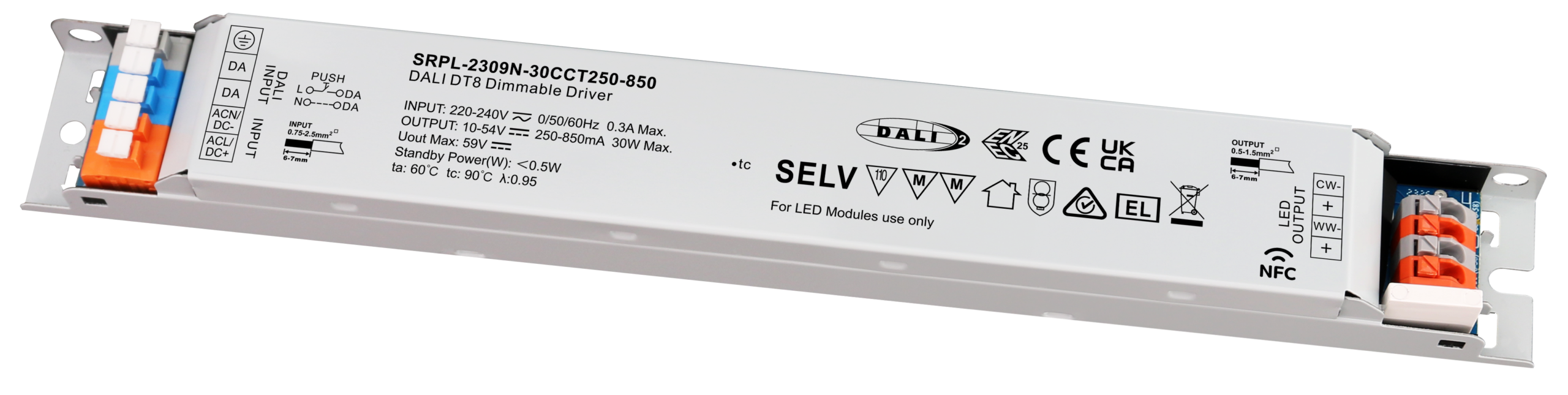

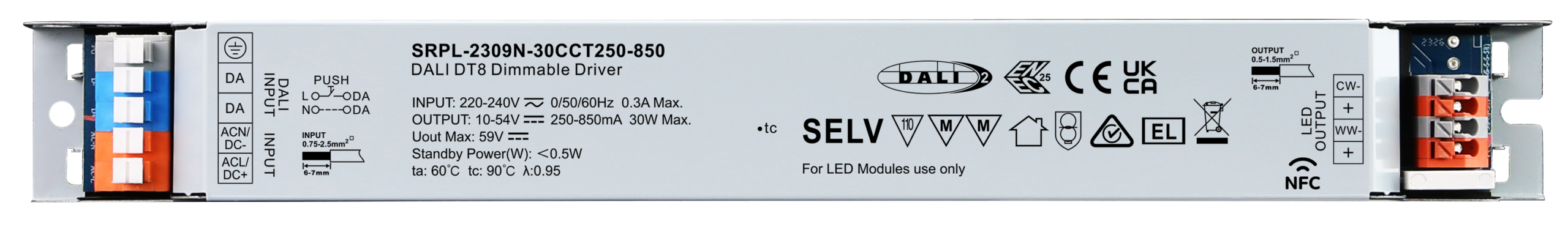

SRPL-2309N-30CCT250-850 is a DALI-2 certified long metal casing 30w DT8 NFC dimmable LED driver. It is designed with 2 channel constant current output with adjustable current from 250mA to 850mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.96 and efficiency is higher than 83%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Başlıca Özellikler
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Built-in DALI-2 interface, DALI DT6 device
- Dimmable LED driver with linear metal housing. Max. output power 30W
- 250-850mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
- DALI Address/Group/Scene setting via NFC program tool.
- Class Ⅱ power supply, isolated design
- Yüksek güç faktörü ve verimlilik
- To switch and dim LED lighting luminaries
- Amplitude/CCR dimming, smooth and deep dimming
- Compatible with universal DALI masters that support DT6 commands
- DALI-250/251/252/253 Enabled，DALI data inside
- Integrated Max.56mA DALI BUS supplu,enabled to powered DALI-2 sensors.
- 5 yıl garanti
- IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Maksimum Çıkış Gücü | Çıktı DC Voltage | Boyut (mm) |
|---|---|---|---|---|---|
| SRPL-2309N-30CCT250-850 | 220-240VAC | 250mA-850mA | 30W |
10-54V
|
245x30x21
|
Ürün Boyutları
Kablolama Şeması
