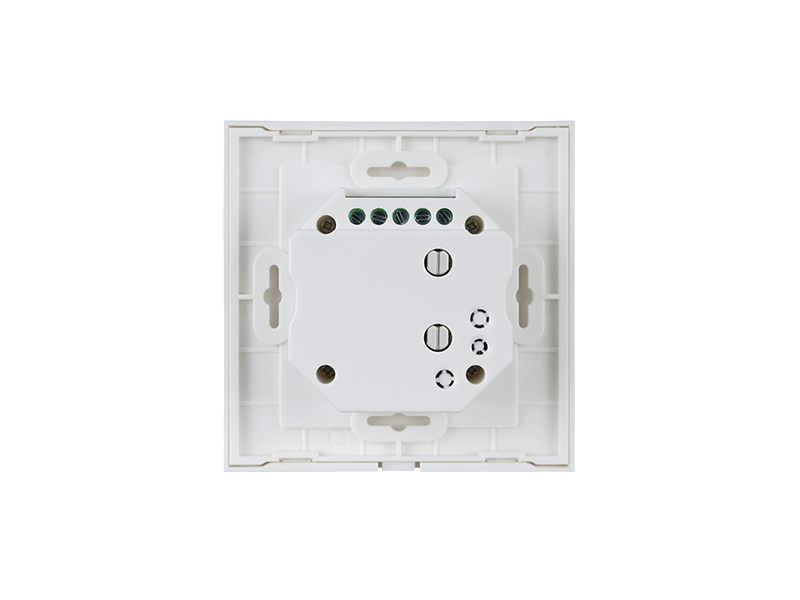

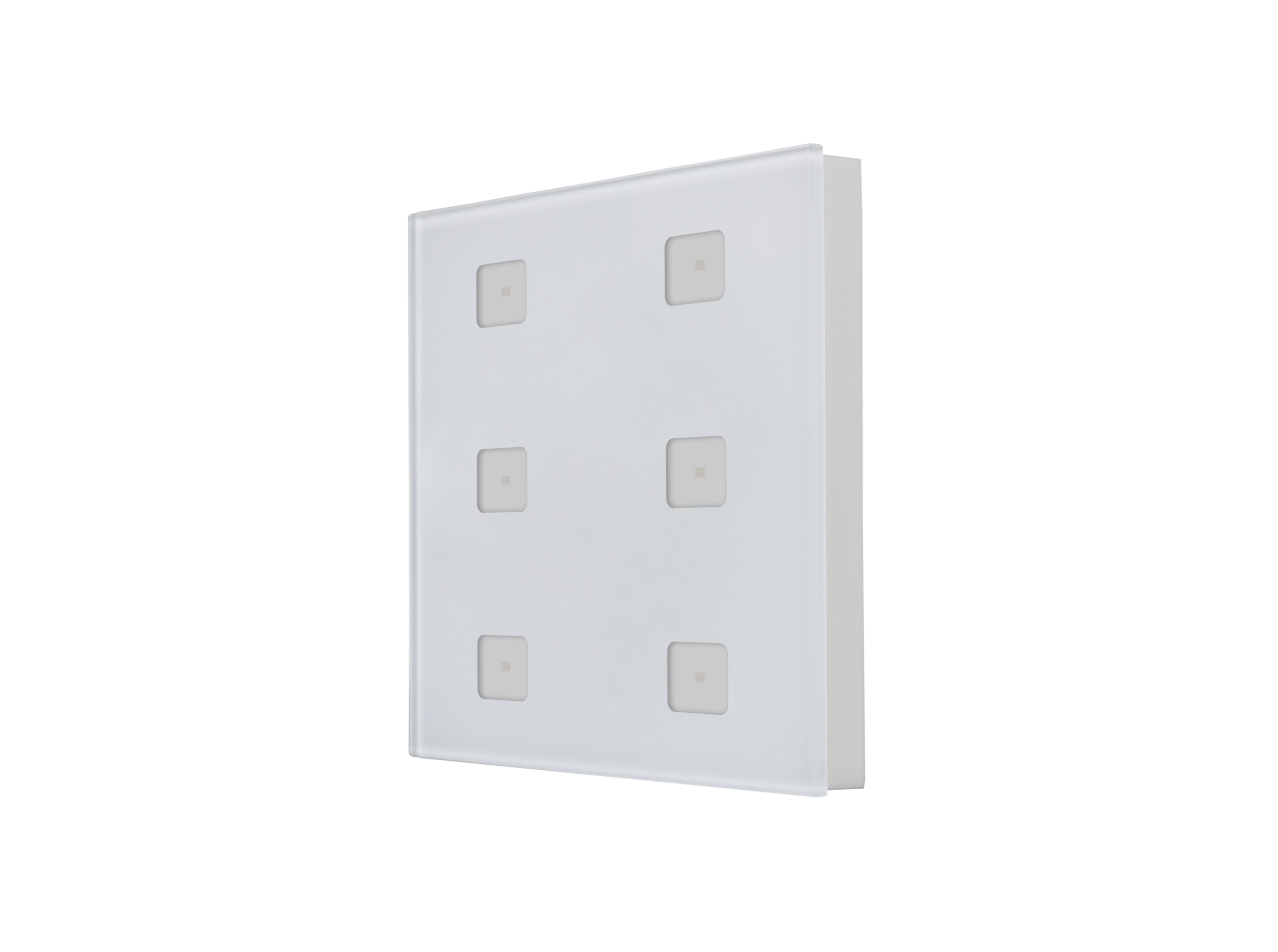

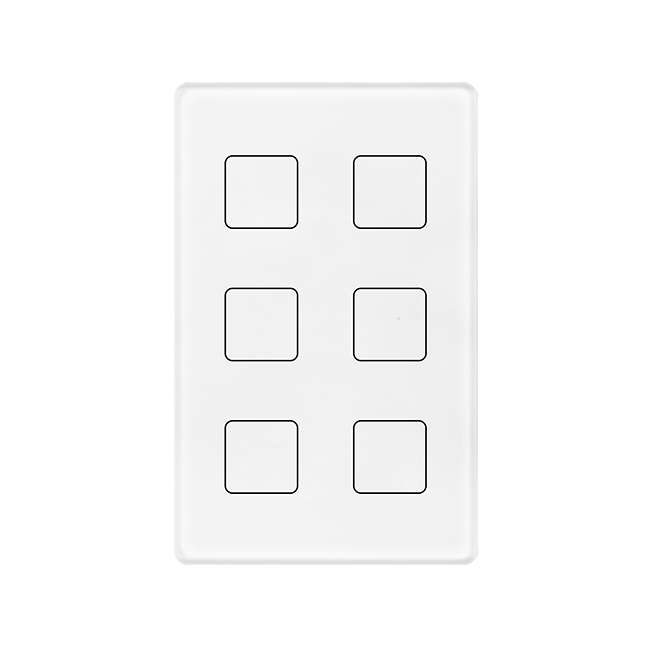

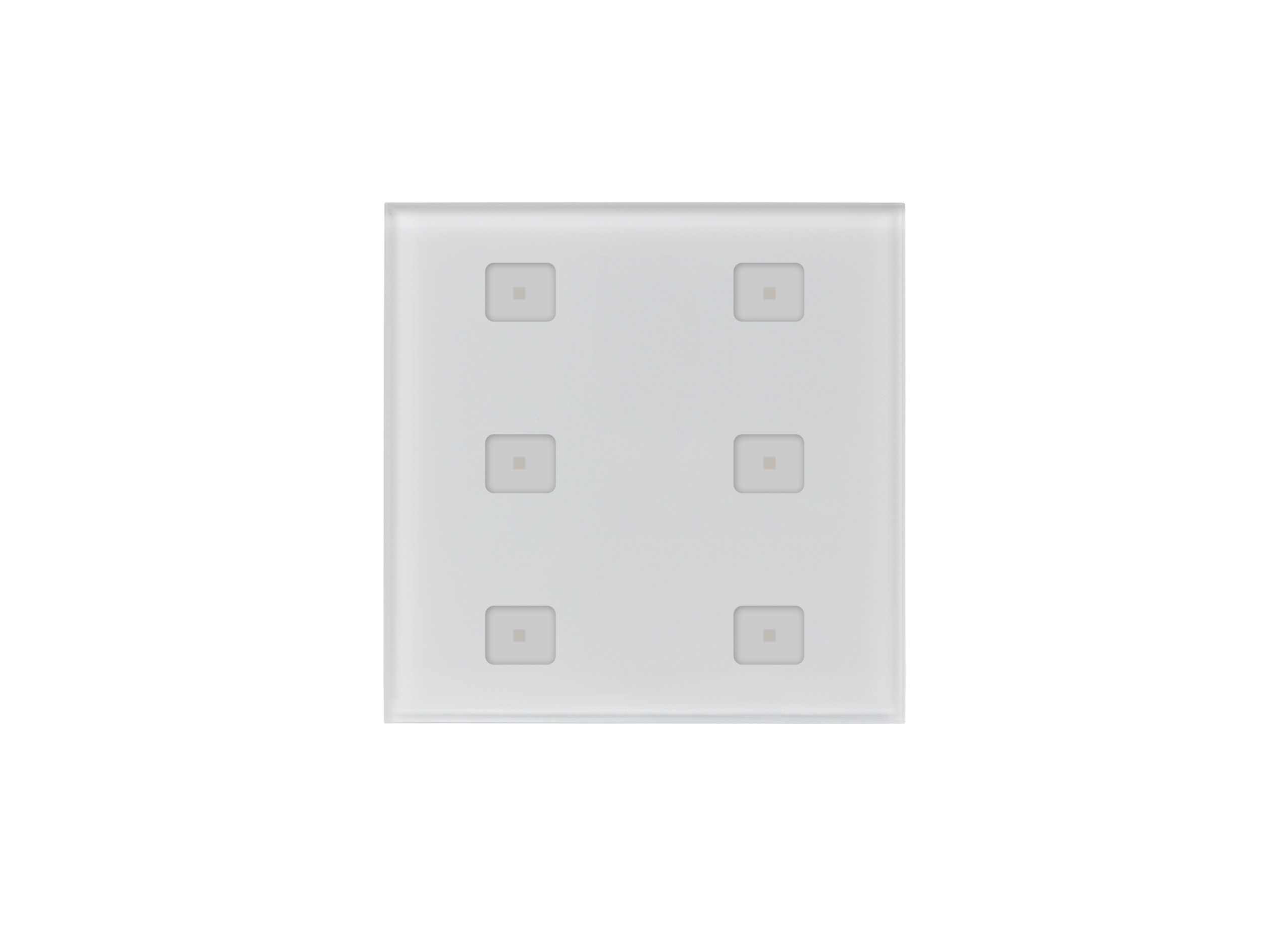

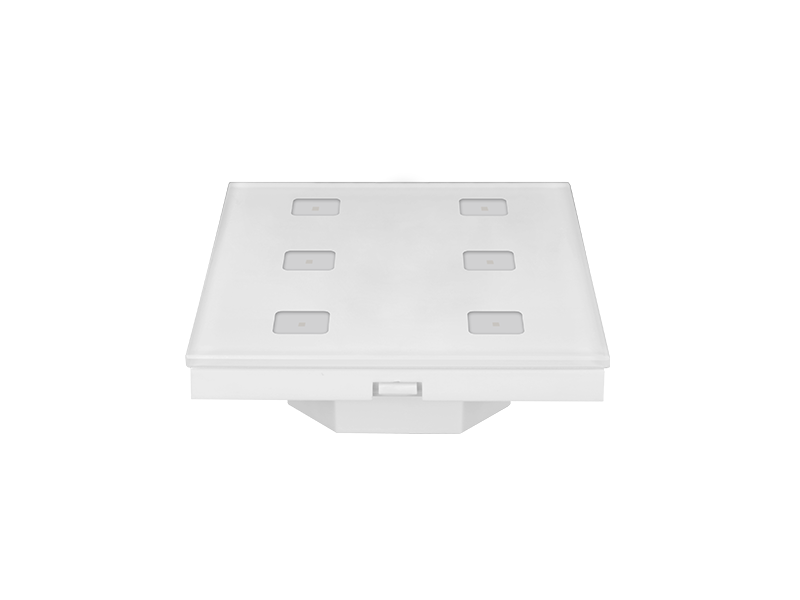

This 6-Key DALI Wall Switch Touch Panel is a DALI-2 control device with 6 touch buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. This device supports feedback functionality, provides 12 LEDs, and is suitable for integration and in combination with DALI-2 compliant central control units. It is multimaster capable, and its multiple modules allow it to be installed on the DALI- line. Moreover, this panel is powered by DALI bus, and no extra power supply is required. It can also be configured via DALI-2 compliant central controller USB interface, and is compatible with universal 55mm frames.
Başlıca Özellikler
• DALI-2 control device with 6 touch buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
• Supports feedback functionality, provides 6 LEDs
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
• Compatible with universal 55mm frames
Teknik Özellikler
| Input Type |
Input Voltage Range |
Typ. Current Consumption |
Max. Current Consumption |
Number of Instance |
Number of Feedback |
|---|---|---|---|---|---|
|
DALI |
12VDC – 22.5VDC |
2mA |
10mA |
6 programmable touch buttons |
6 programmable LEDs |
Ürün Boyutları
-Dimension.png)
