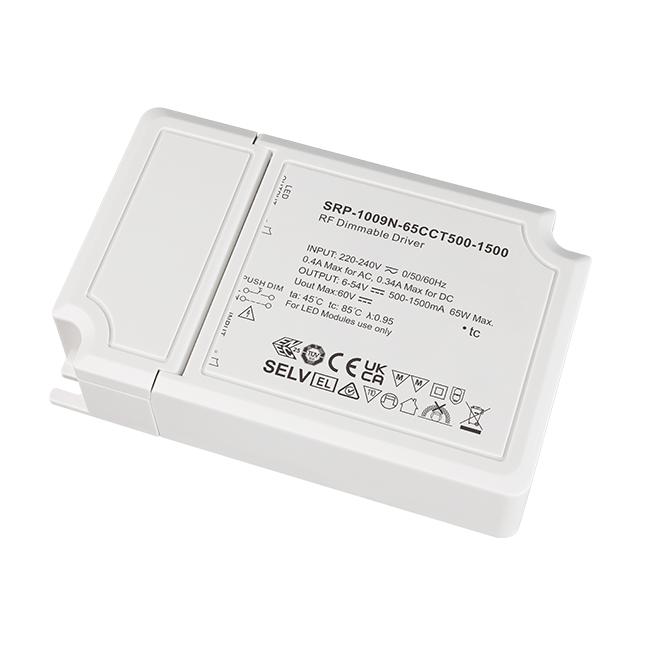

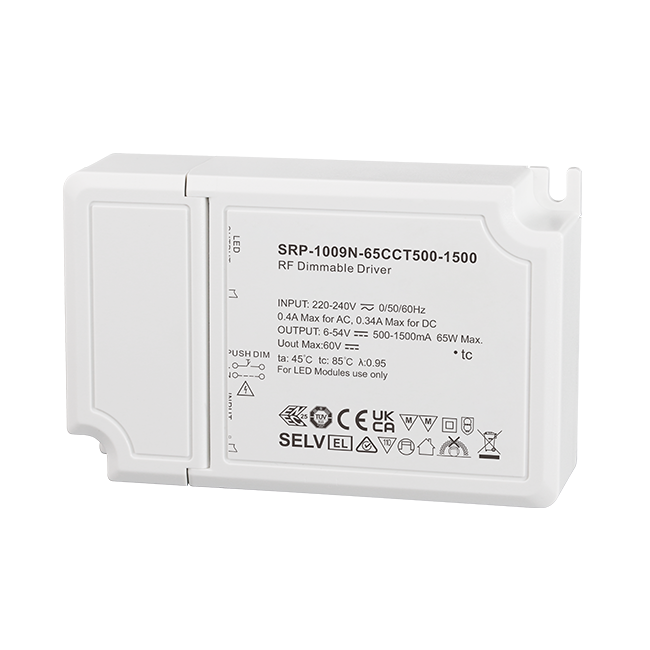

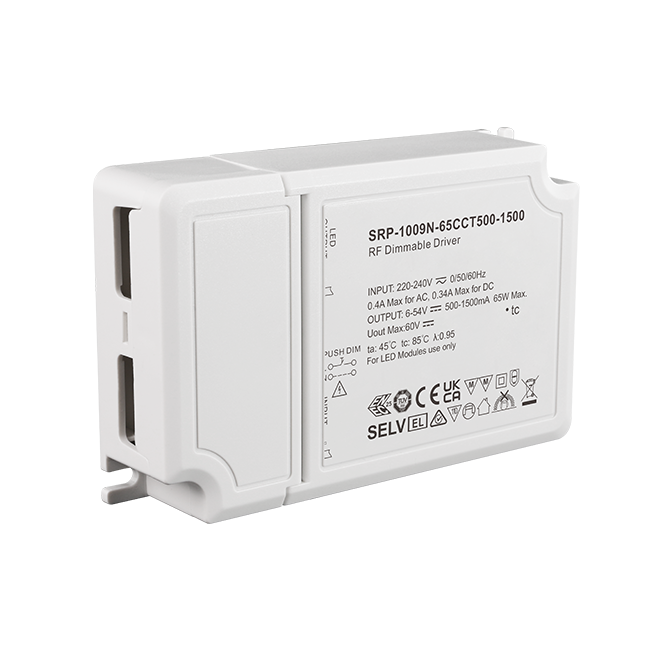

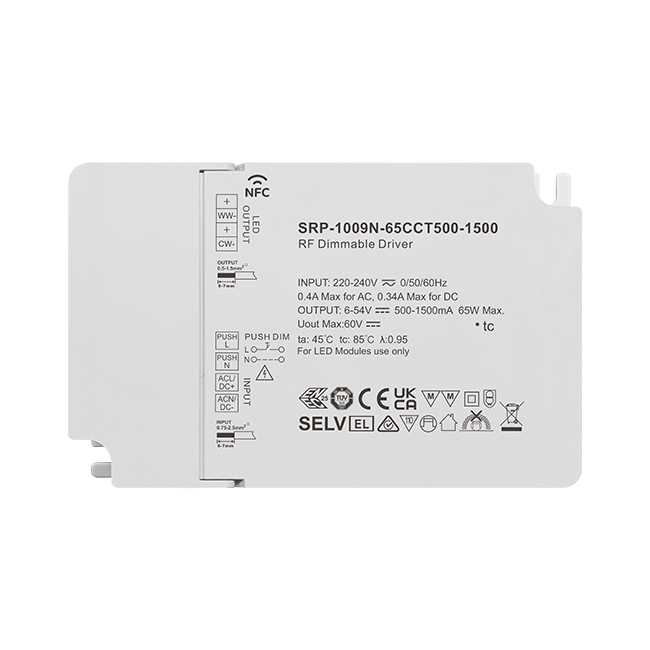

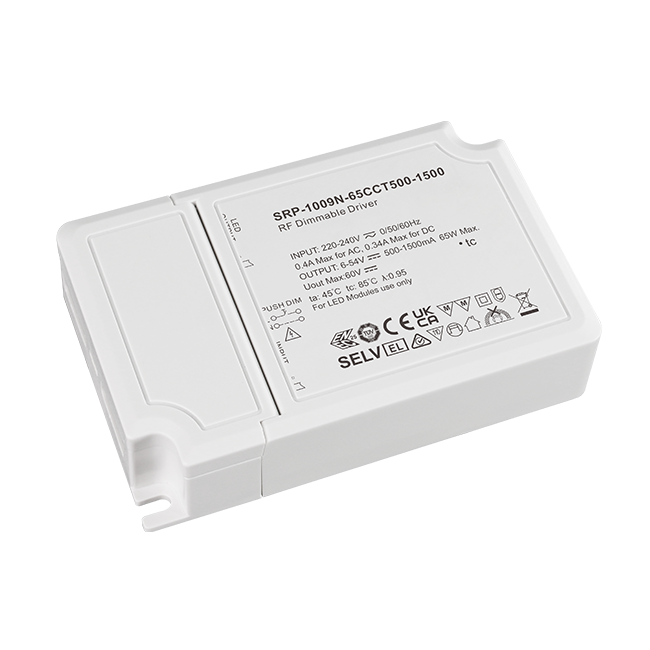

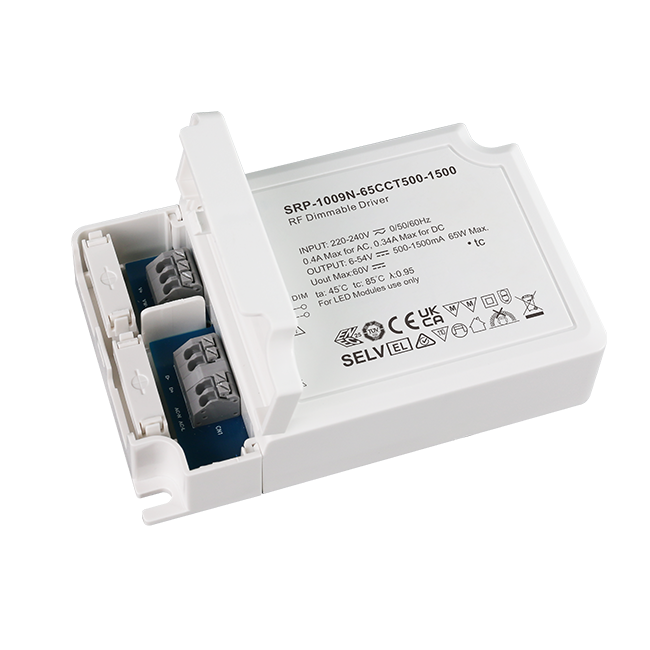

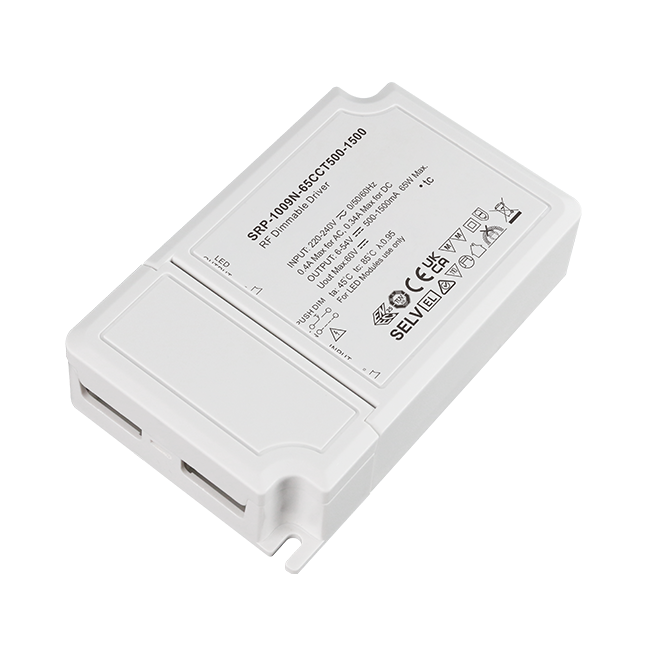

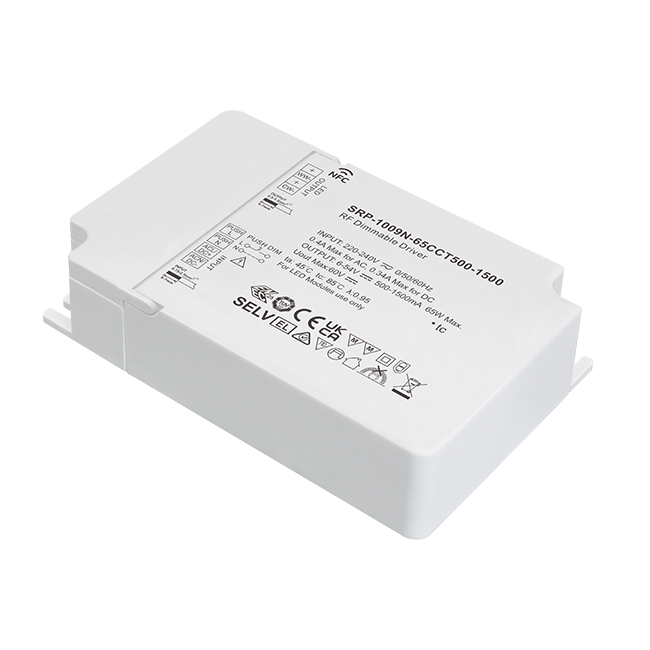

Ürün Açıklaması
This 65W NFC programmable RF LED Driver can be programmed with NFC programming APP or tool, the output current can be configured with 0.1mA stepping between 500-1500mA, which ensures high current accuracy and helps to reduce stocks. The driver is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 65W. With Class Ⅱ power supply and full isolated plastic case, this driver can switch on / off, dim up / down and change color temperature of the LED lighting fixtures. It features flicker free and deep dimming to 0.01%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Başlıca Özellikler
• Dimmable LED driver. Max. output power 65W
• 500-1500mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curves/Target current/Power-on behavior settings via NFC program tool.
• II. sınıf güç kaynağı, tamamen yalıtımlı plastik kasa
• High power factor and efficiency
• Radio Frequency : Default 869.5/916.5(1009 Version) ,Available 868/434mhz(2504 Version)
• To switch and dim Tunable White LED lighting fixtures
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with a variety of RF remotes
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
• 5 yıl garanti
Teknik Özellikler
|
Parça No. |
Giriş Gerilimi |
LED Kanalı |
Nominal Güç |
Akım |
Voltage |
Size (LxWxH) |
|---|---|---|---|---|---|---|
|
SRP-1009N-65CCT500-1500 |
220-240VAC/220-240VDC |
2 |
Max.65W |
500-1500mA |
6-54V |
123.9×78.8x30mm |
Ürün Boyutları
Kablolama Şeması
