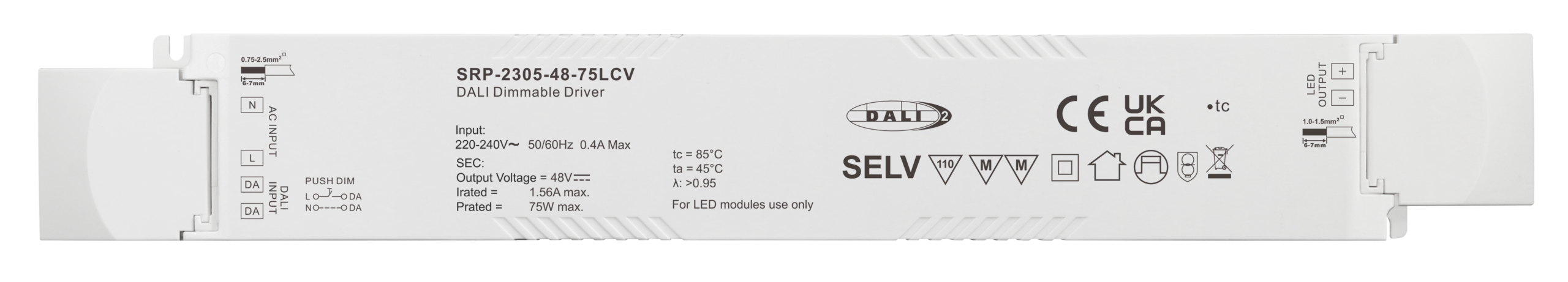

This 1-channel 48VDC constant voltage output DALI LED Driver is in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2. With built-in DALI-2/Push interface and class Ⅱ power supply, this DALI DT6 device has full isolated plastic case. Besides, with built-in active PFC function, its PF > 0.9 and its efficiency > 86%. This driver’s dimming method is PWM digital dimming, with standard DALI logarithmic dimming curve. Moreover, it is compliant with Safety Extra Low Voltage standard, coupled with over load, over temperature protection. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.
Başlıca Özellikler
- Dimmable LED driver, max. output power 75W total
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
- Built-in DALI-2/Push interface, DALI DT6 device
- 1 channel DC 48V constant voltage output
- Yüksek güç faktörü ve verimlilik
- Built-in DALI interface, DALI DT6 device, each device is controlled via a single DALI address
- PWM dimming,smooth and deep dimming to 0.1%
- Compatible with universal DALI masters that support DT6 commands
- Hata raporlama fonksiyonu
- IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
- 5 yıl garanti
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Nominal Güç | LED Kanalı | DC Gerilimi | Maks. Akım | Boyutlar (Uzunluk*Genişlik*Yükseklik) |
|---|---|---|---|---|---|---|
| SRP-2305-48-75LCV | 220-240VAC | Max. 75W | 1 Kanal | 48V DC | Max. 1.56A | 306.6*43*30 mm |
Ürün Boyutları
Kablolama Şeması
