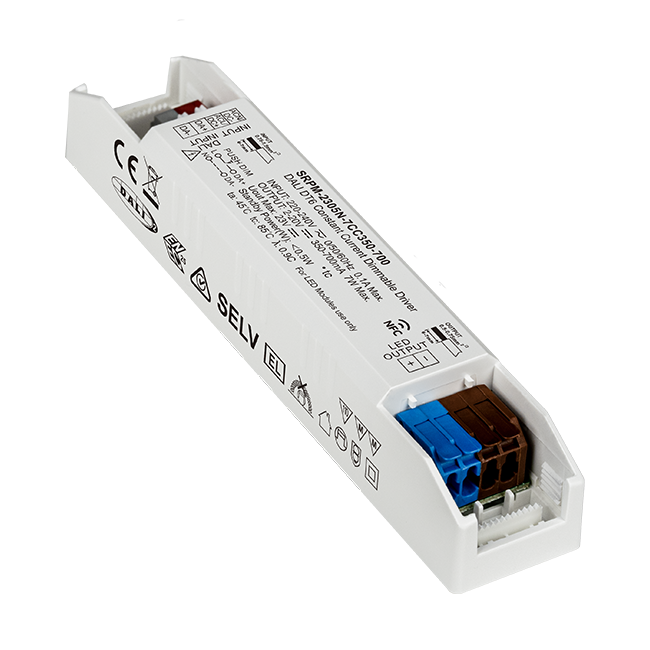

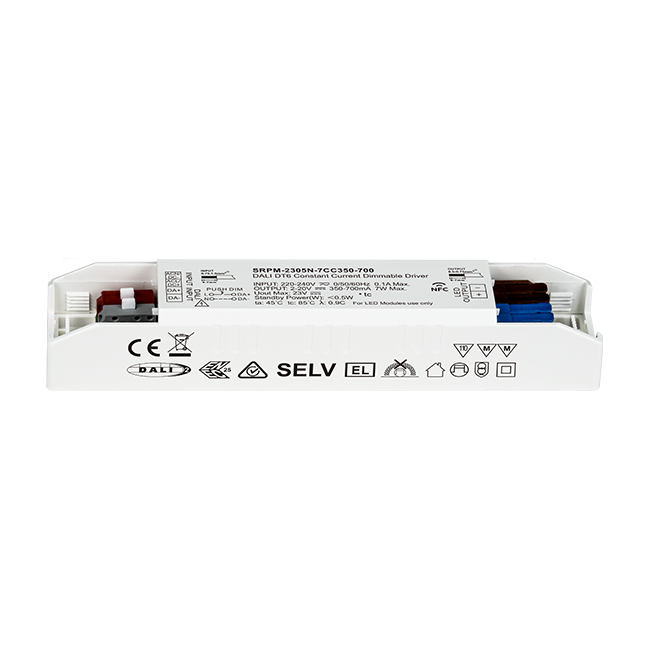

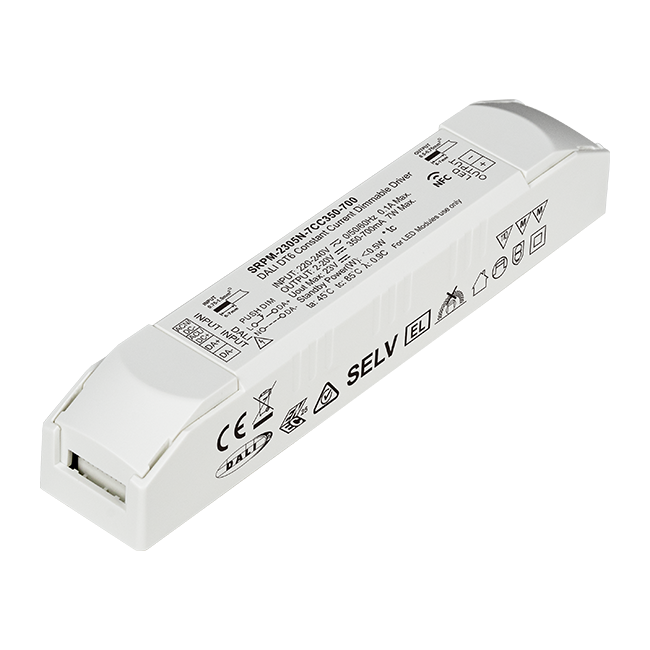

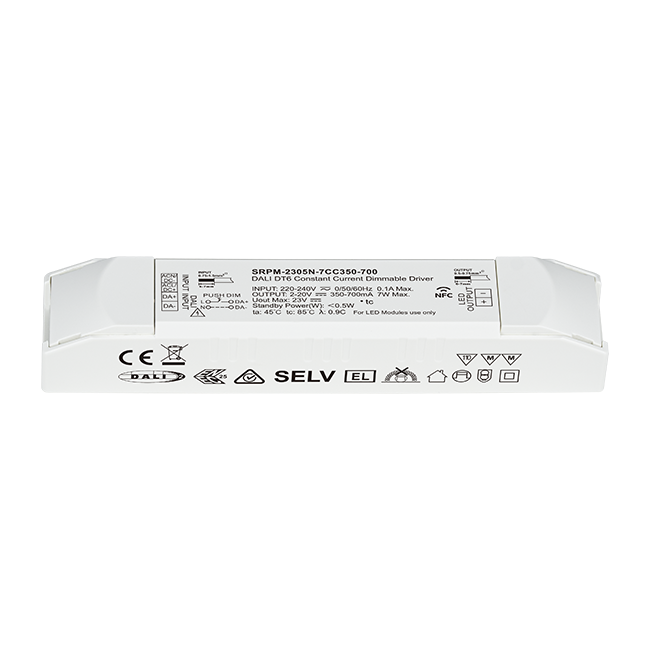

7W Mini DALI DT6 NFC LED Sürücüsü (Sabit Akım) SRPM-2305N-7CC350-700

Ürün Açıklaması

This 7W NFC programmable DALI DT6 LED Driver is DALI-2 certified and in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and compatible with universal DALI masters that support DT6 commands. The driver can be programmed with NFC programming APP or tool, the output current can be configured with 0.1mA stepping between 350-700mA, which ensures high current accuracy and helps to reduce stocks. DALI configurations such as addressing, grouping, scene setting, power on level, system fail level, fade time, fade rate etc. can also be configured through NFC. With built-in DALI-2/Push interface, this DALI DT6 device is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 7W. With Class Ⅱ power supply and full isolated plastic case, this driver can switch and dim LED lighting fixtures. It features flicker free and deep dimming to 0.01%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.

Başlıca Özellikler

• IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2 standartlarına uygun olarak
• Dahili DALI-2 arayüzü, DALI DT6 cihazı
• Dimmable LED driver. Max. output power 7W
• 350-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• NFC program aracı aracılığıyla DALI Adresi/Grubu/Sahne ayarı.
• II. sınıf güç kaynağı, tamamen yalıtımlı plastik kasa
• Yüksek güç faktörü ve verimlilik
• To switch and dim single color LED lighting luminaries
• Genlik/CCR karartma, yumuşak ve derin karartma
• DT6 komutlarını destekleyen evrensel DALI master'larıyla uyumludur.
• DALI-251/252/253 Etkin, DALI verileri içeride
• Hata raporlama işlevi
• LED Sürücüsü, Energy-star düzenlemelerine göre A sınıfı ses kalitesi derecesine sahiptir.
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
• 5 yıl garanti
