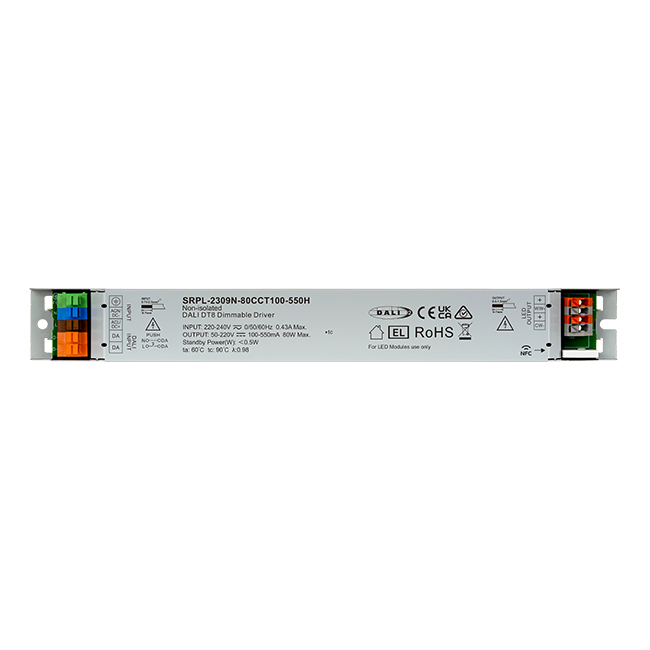

80W DALI DT8 Non-SELV NFC LED Driver (Constant Current) SRPL-2309N-80CCT100-550H

SRPL-2309N-80CCT100-550H is a DALI-2 DT8 certified long metal casing 80w Non-SELV NFC dimmable LED driver. It is designed with 2 channels constant current output with adjustable current from 100mA to 550mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.98 and efficiency is higher than 92%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address for 2 channels output are assigned by DALI Master controller automatically, or by NFC Programming devices. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.

Başlıca Özellikler

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 80W
• 100-550mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool
• For luminaires of protection class I and protection class II
• High power factor and efficiency. Non-SELV rated driver
• To switch and dim LED lighting luminaries, Tunable White control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-251/252/253 Enabled, DALI data inside
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
• 5 yıl garanti
