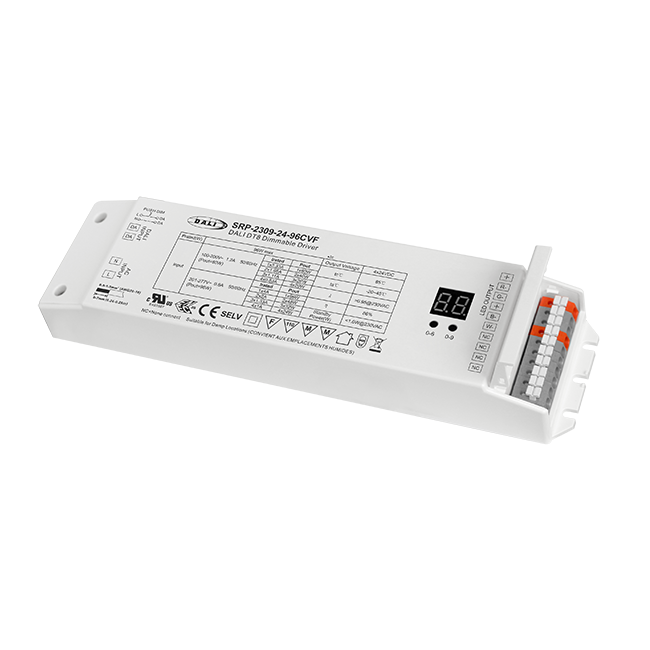

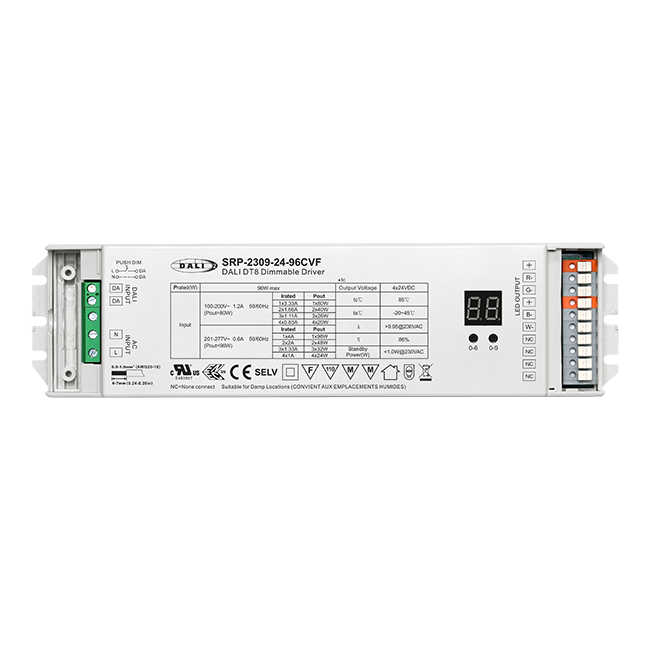

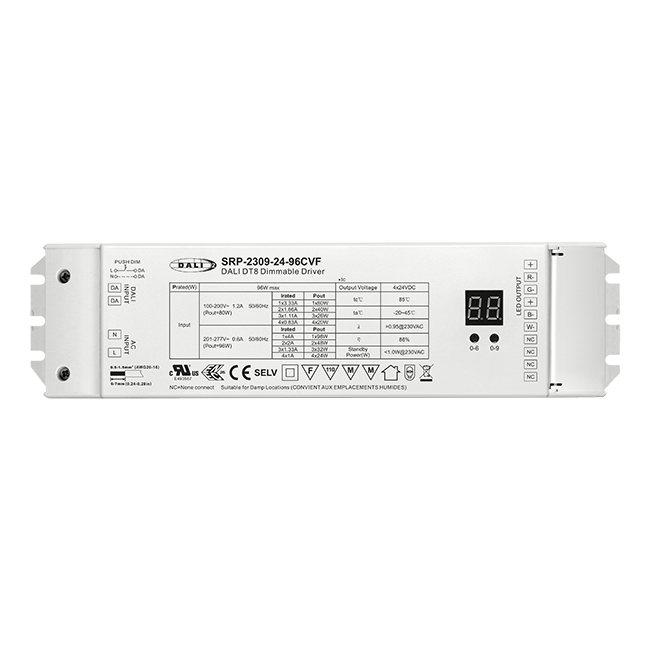

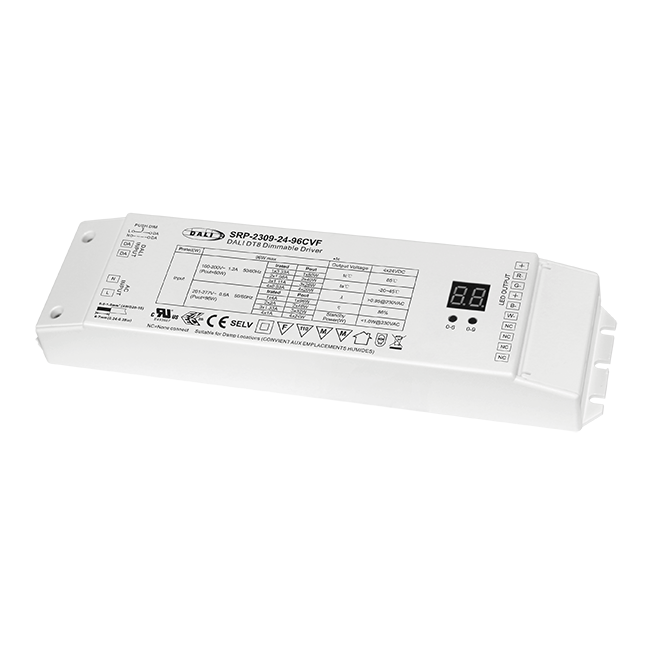

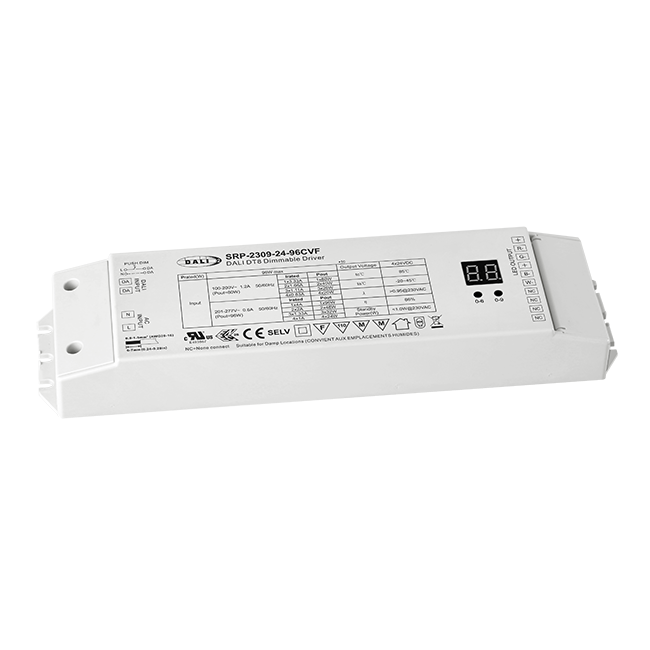

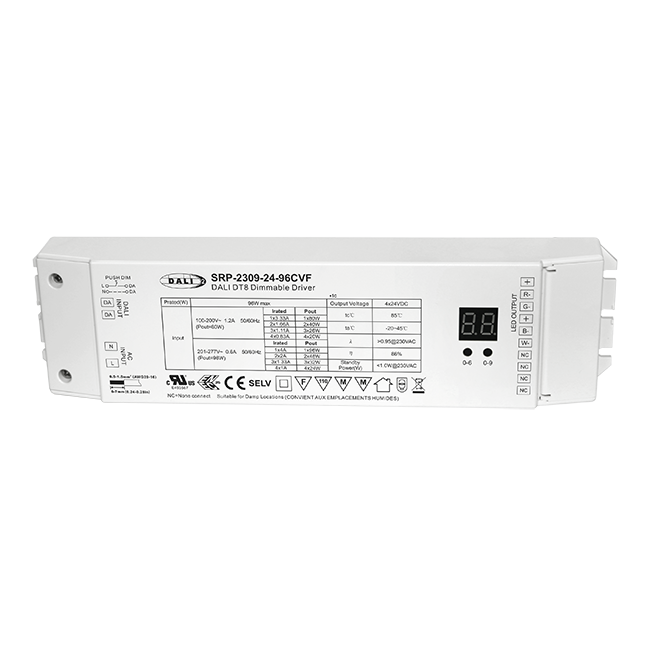

SRP-2309-24-96CVF is a DALI-2 certified 96W LED driver with 4 parallel connected channels with 2 common anodes and 24VDC constant voltage output. It is designed with 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. UL and ENEC approval ensure safe and reliable performance of this driver. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-209:2011, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Başlıca Özellikler
• Dimmable LED driver, max. output power 96W total
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• 100-277VAC wide input voltage
• 4 channels DC 24V constant voltage output
• II. sınıf güç kaynağı, tamamen yalıtımlı plastik kasa
• High power factor and efficiency
• DALI DT8 device, each device is controlled via a single DALI address
• Any one of three DT8 color types RGBW, XY Coordinate, Tc can be preset by factory setting
• Color control according to DALI specifications of device type 8
• Compatible with universal DALI masters that support DT8 commands
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Gerilimi | Maksimum Çıkış Gücü | LED Kanalı | Çıkış Akımı | Boyut (mm) |
|---|---|---|---|---|---|---|
| SRP-2309-24-96CVF | 100-277VAC | 24VDC | 96W | 4 Channels | 4A max. | 244*64*32 |
Kablolama Şeması
