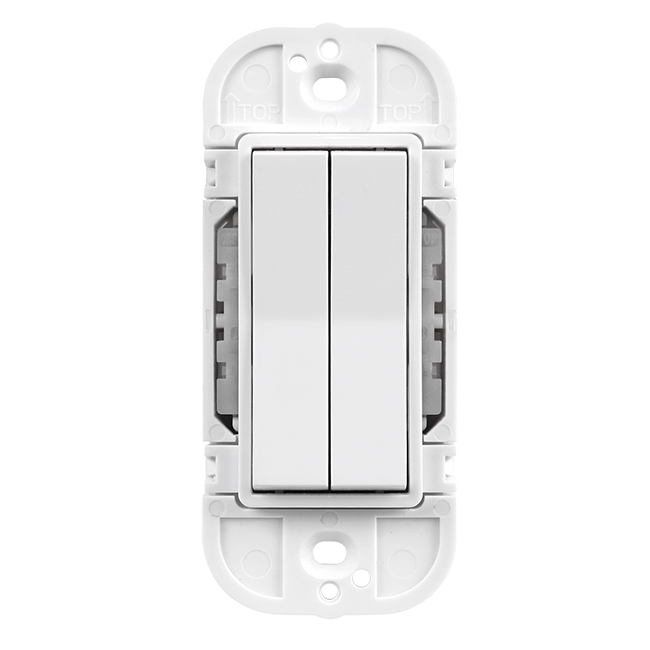

The BLE Battery Powered Push Button Switch is a versatile and energy-efficient solution designed for seamless integration into Bluetooth® Mesh networks. Powered by ultra-low consumption batteries, it boasts an impressive lifespan of over 1 million presses, ensuring long-lasting reliability. Pairing is quick and simple through a user-friendly app, and its mesh network functionality extends the control range by allowing receivers to relay signals to each other. Operating on the 2.4 GHz frequency band, the switch offers a transmission range of up to 30 meters between neighboring devices, making it ideal for a wide variety of applications. With a standard size compatible with existing US frames, it works seamlessly with our BLE driver, controller, signal converter, and sensor products. The switch is equipped with an on-board antenna and is rated IP20 for protection against dust and water ingress. Backed by a 5-year warranty, it provides both durability and peace of mind.
Başlıca Özellikler
• CCT wall remote based on Bluetooth® Mesh network
• Battery powered, Ultra-low power consumption
• Ultra long lifetime, more than 1 million times pushing
• Easy & quick pairing through APP
• Mesh network for further control distance, receivers can transmit signal to each other
• 2,4 GHz küresel çalışma
• Transmission range between every two neighbor devices up to 30m
• Standard size, compatible with existing US size frame
• Working with our BLE driver, controller, signal converter, sensor series product
• Dahili anten
• Su geçirmezlik derecesi: IP20
• 5 yıl garanti
Teknik Özellikler
| Protocol | Güç Kaynağı | Transmission Frequency | Transmission Range(free field) | Dimming Range | Boyutlar (Uzunluk*Genişlik*Yükseklik) |
|---|---|---|---|---|---|
| Bluetooth® mesh | 3VDC(1xCR2430 Battery) | 2.4GHz | Min. 30m | 0.1%-100% | 44.9×106.2×19.2mm |
Fonksiyon Tanıtımı
-Dimension.png)
