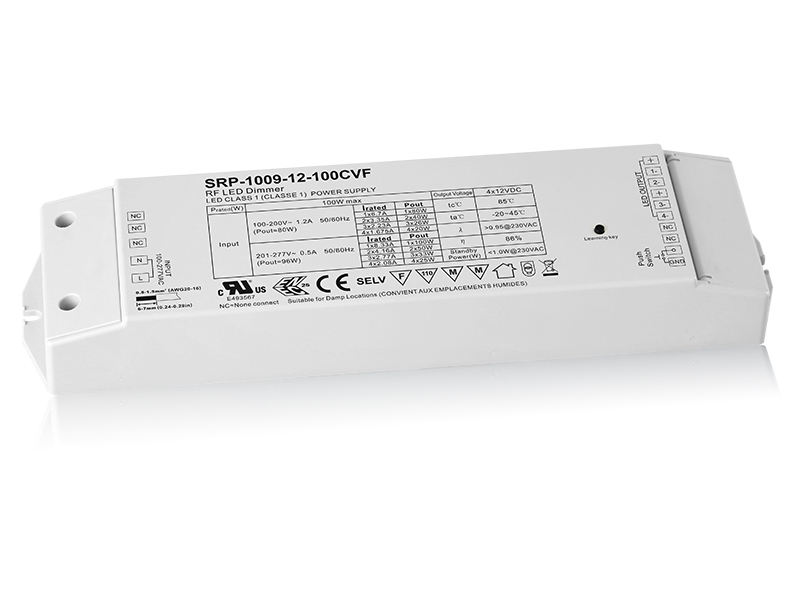

Constant Voltage 100W Dimmable PWM RGB LED Driver with RF SRP-1009-12-100CVF

SRP-1009-12-100CVF is an UL and ENEC approved 100W dimmable PWM RGB LED driver with 4 channels 12VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. The driver can control single color, tunable white, RGB/RGBW LED lighting. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.

Başlıca Özellikler

• Dimmable 12V PWM RGB LED Driver, Max. output power 100W
• UL ve ENEC sertifikasyonu
• 100-277VAC universal input
• 4 channels 12VDC constant voltage output
• II. sınıf güç kaynağı, tamamen yalıtımlı plastik kasa
• Rubycon kapasitörleri
• Dahili iki aşamalı aktif PFC fonksiyonu
• Yüksek güç faktörü ve verimlilik, PF > 0,9, Verimlilik > 90%
• RF control interface and can be compatible with a variety of SR-1009 series RF remotes
• Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
• Sabit voltajlı tek renkli, ayarlanabilir beyaz, RGB/RGBW LED aydınlatmayı kontrol etmek için.
• Titreşimsiz ve vızıltı sesi olmadan 0,1%'ye kadar yumuşak ve derin karartma.
• IP20 derecesi, iç mekan LED aydınlatma uygulamaları için uygundur.
• Kullanılabilir radyo frekansları: 869.5/434/916.5MHz
