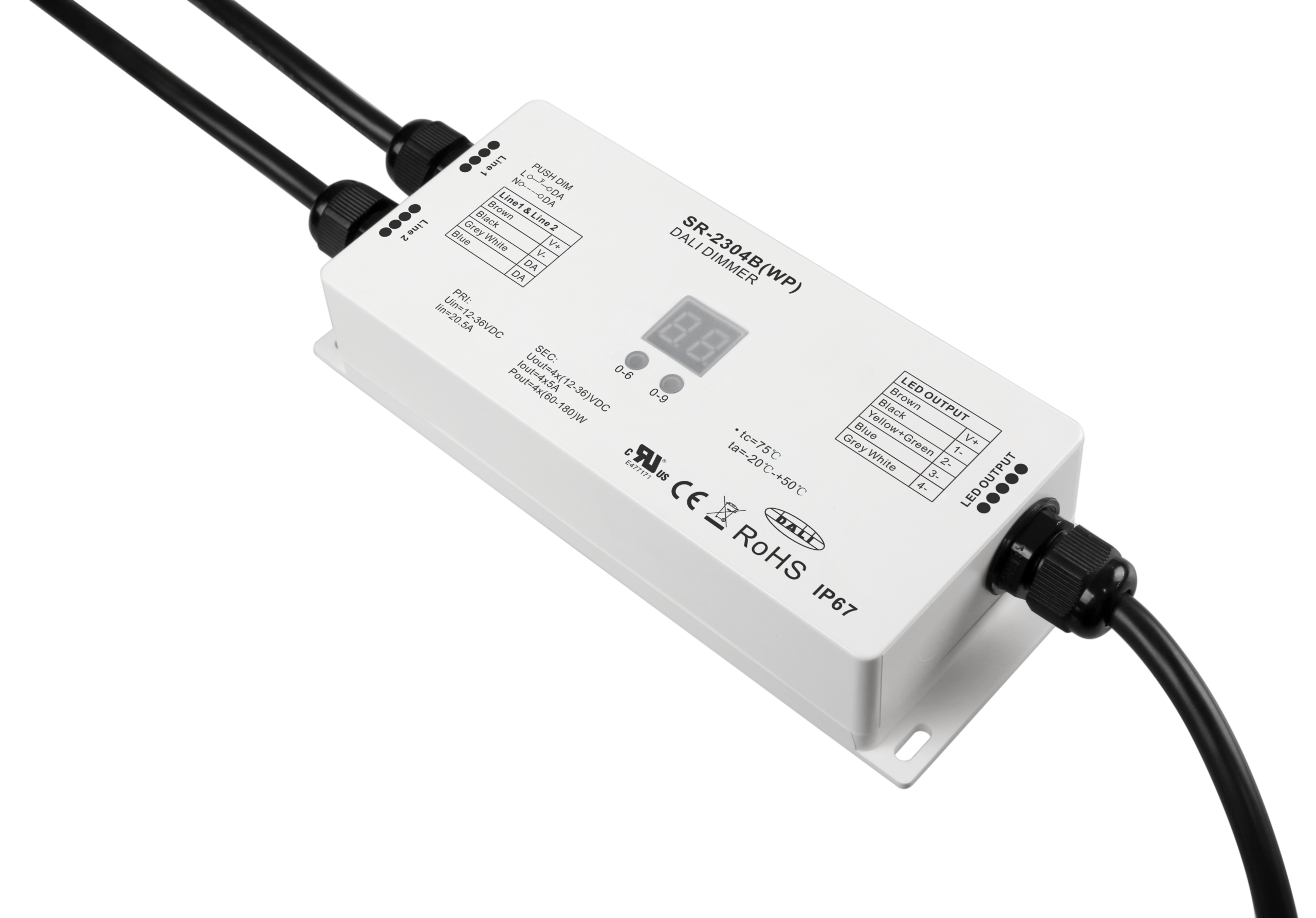

Sabit Voltajlı DALI Su Geçirmez Dimmer SR-2304B(WP)

The DALI Dimmer SR-2304B(WP) is a constant voltage waterproof of dimming controller with 4 channel, 5A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1-4 DALI addresses can be configurable for 4 channels to work synchronously or separately. 0.1%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human’s vision. The DALI dimmer can not only be compatible with DALI masters, but also push switch to get dim and switch functions under the situation without DALI signal.

Başlıca Özellikler

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Manual /automatically DALI address setting
• DALI address digital indicate
• Four channels, can set addresses from one to four
• To work with power repeater to expand output power unlimitedly
• Waterproof grade:IP67
