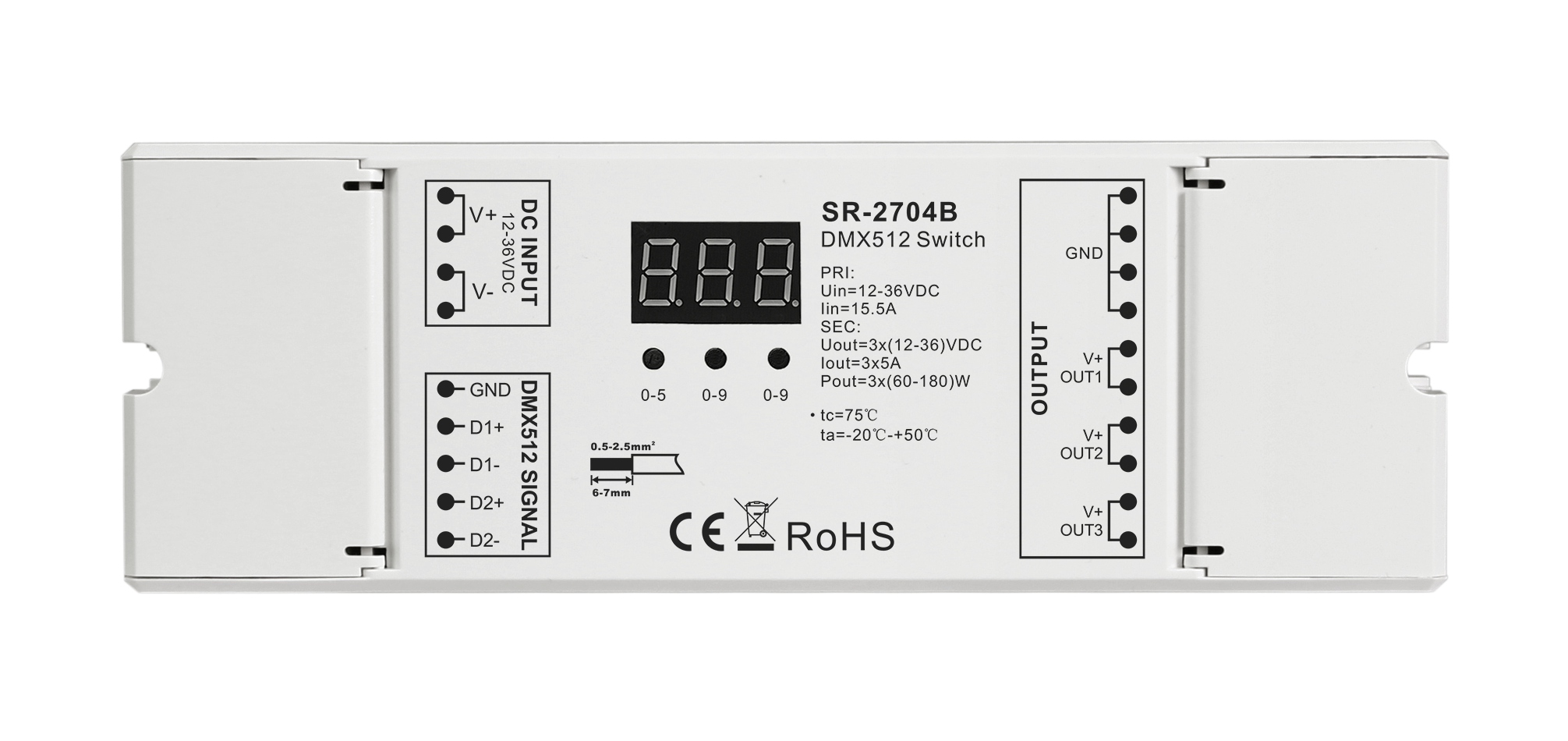

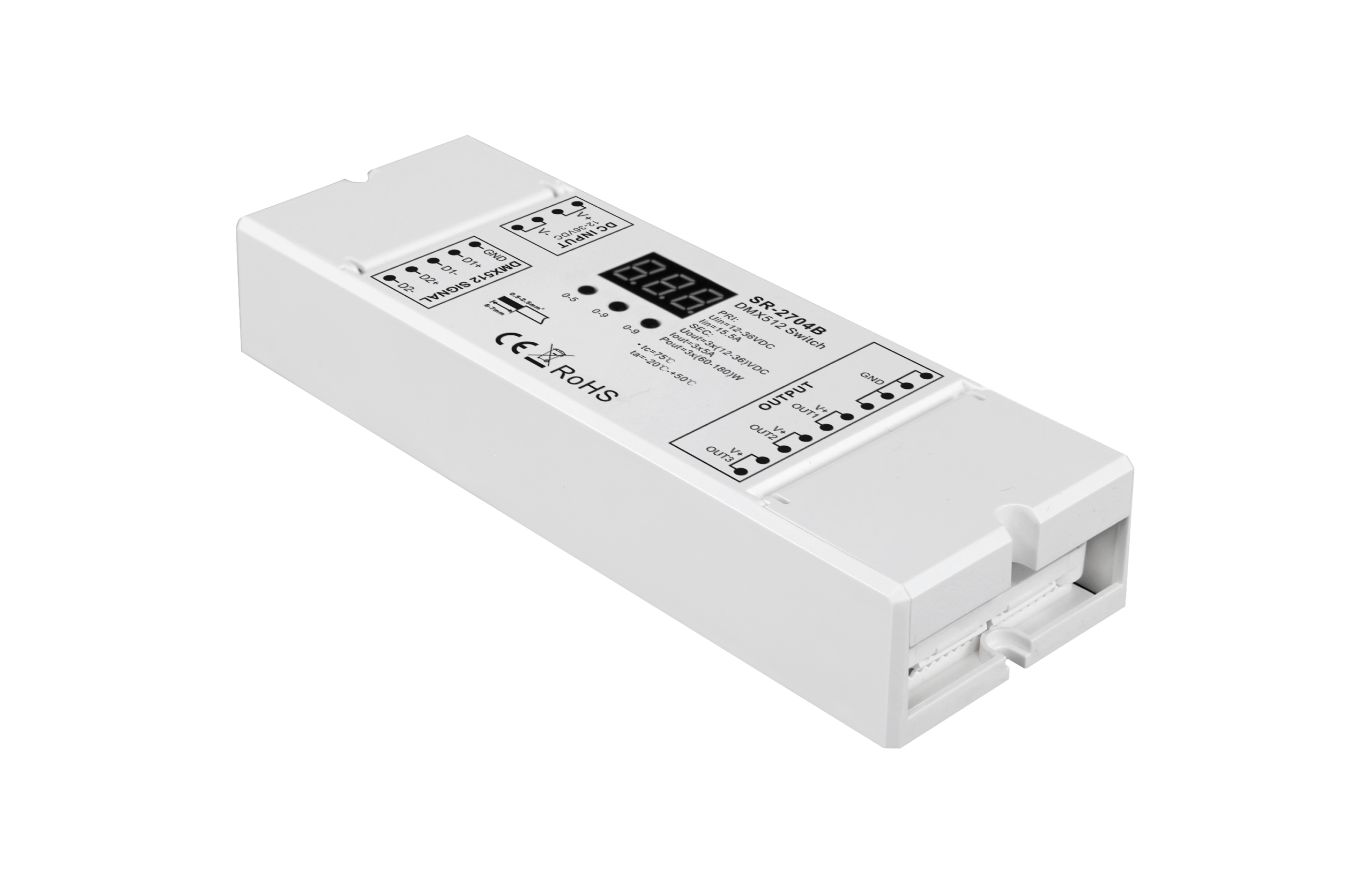

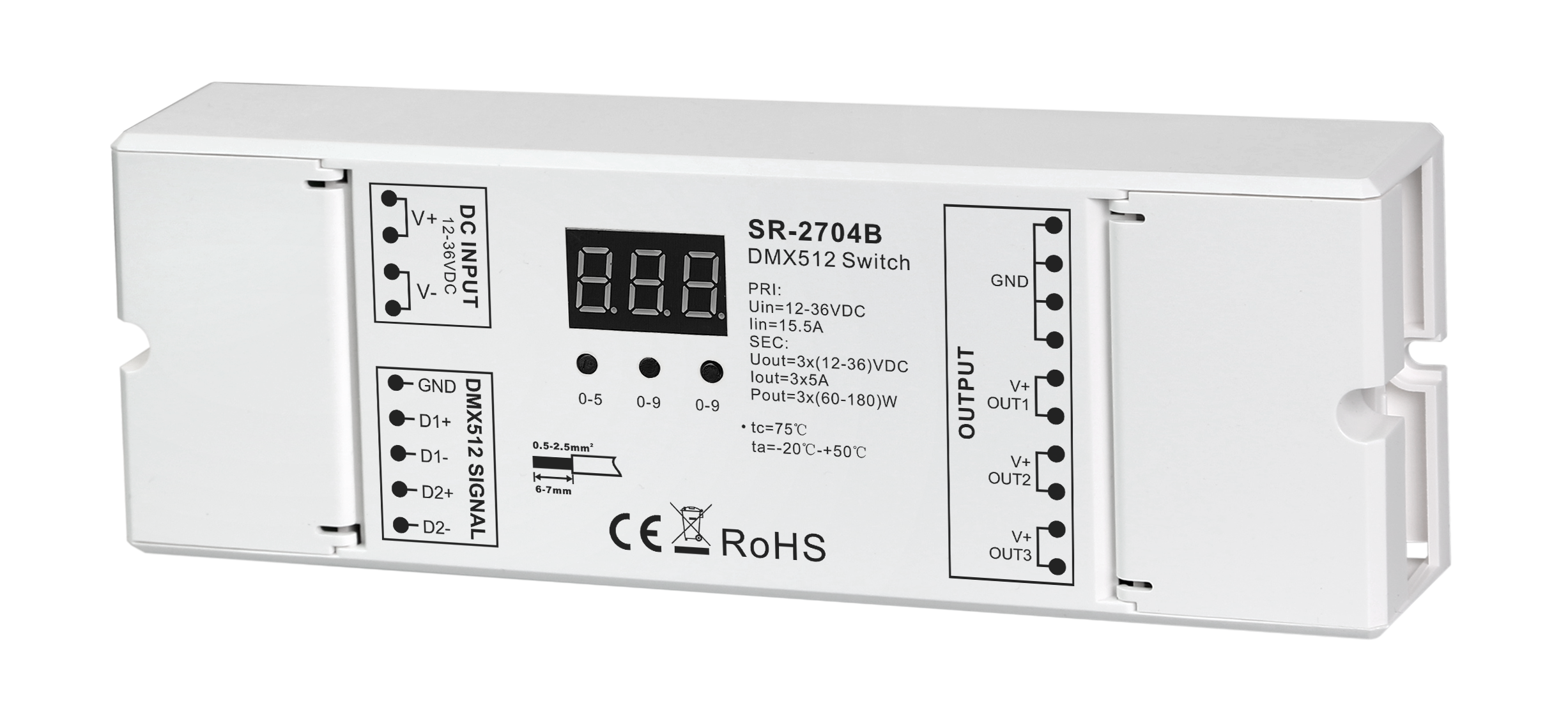

The SR-2704B is a DMX512 switch that complies with standard protocol DMX512(1990) with DC 12-36V input and 3 channel output. The DMX address can manually assigned and shown on the numeric digital display or automatically assigned by the master controller. DMX512 master controller is to control power on/off to cater for unwanted dimming lighitng system. The DC DMX512 switch is compatible with a variety of DMX512 master controllers.
Başlıca Özellikler
- DMX dimmer switch
- Comply with standard protocol DMX512(1990) and compatible with DMX products from other international incorporations
- DMX address can be manually assigned and shown on the digital numeric display or automatically assigned by master controller
- DMX512 master controller is to control power on/off to cater for unwanted dimming lighitng system
- Compatible with a variety of DMX512 master controllers
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Çıkış Gücü | Çıktı Türü | Boyut (mm) |
|---|---|---|---|---|---|
| SR-2704B | 12-36VDC | 3CH, 8A/CH | 3*(96-288)W | constant voltage | 59*170*29 |
Product Dimension for SR-2704B
Wiring Diagram for 2704B
