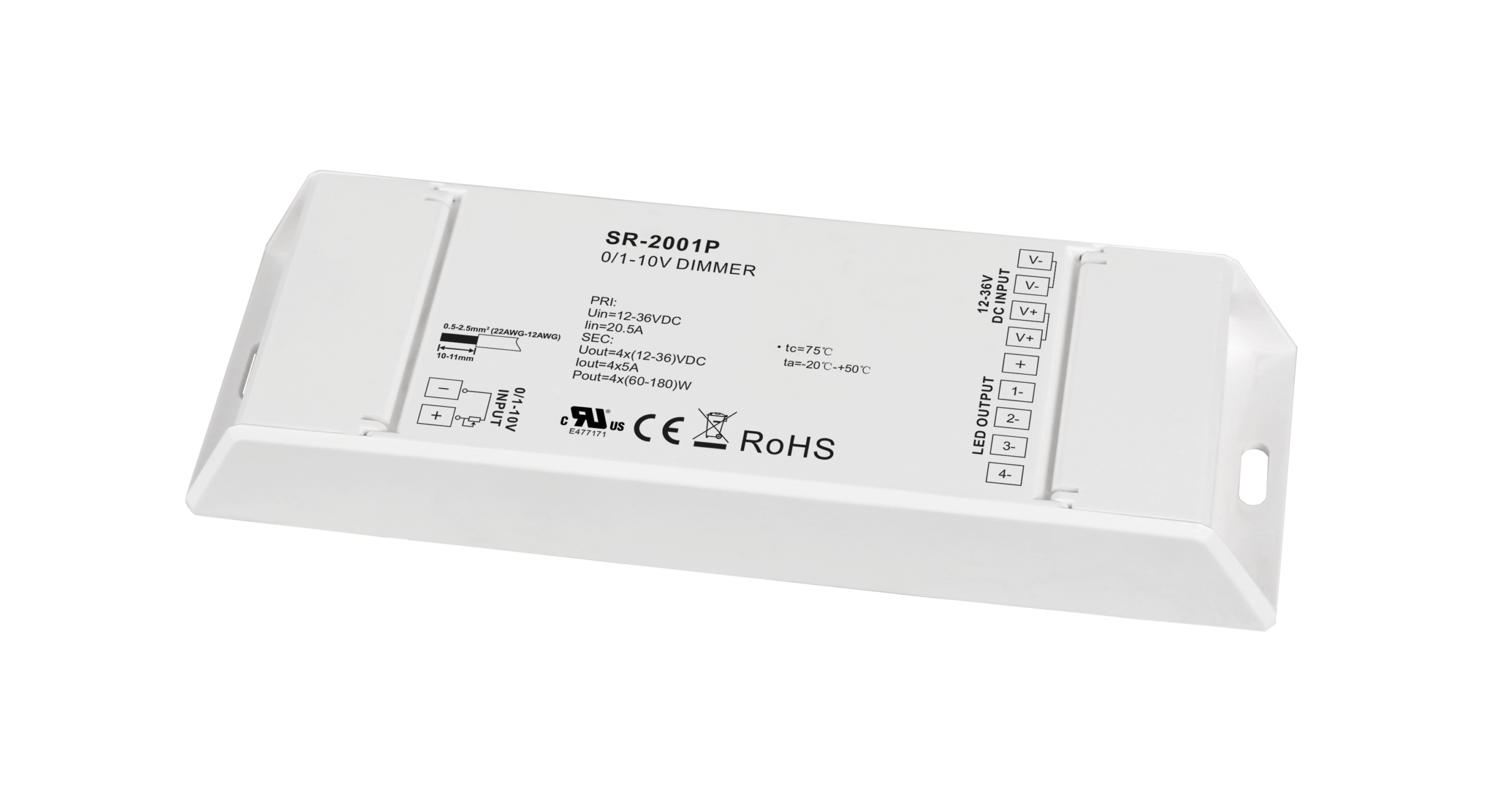

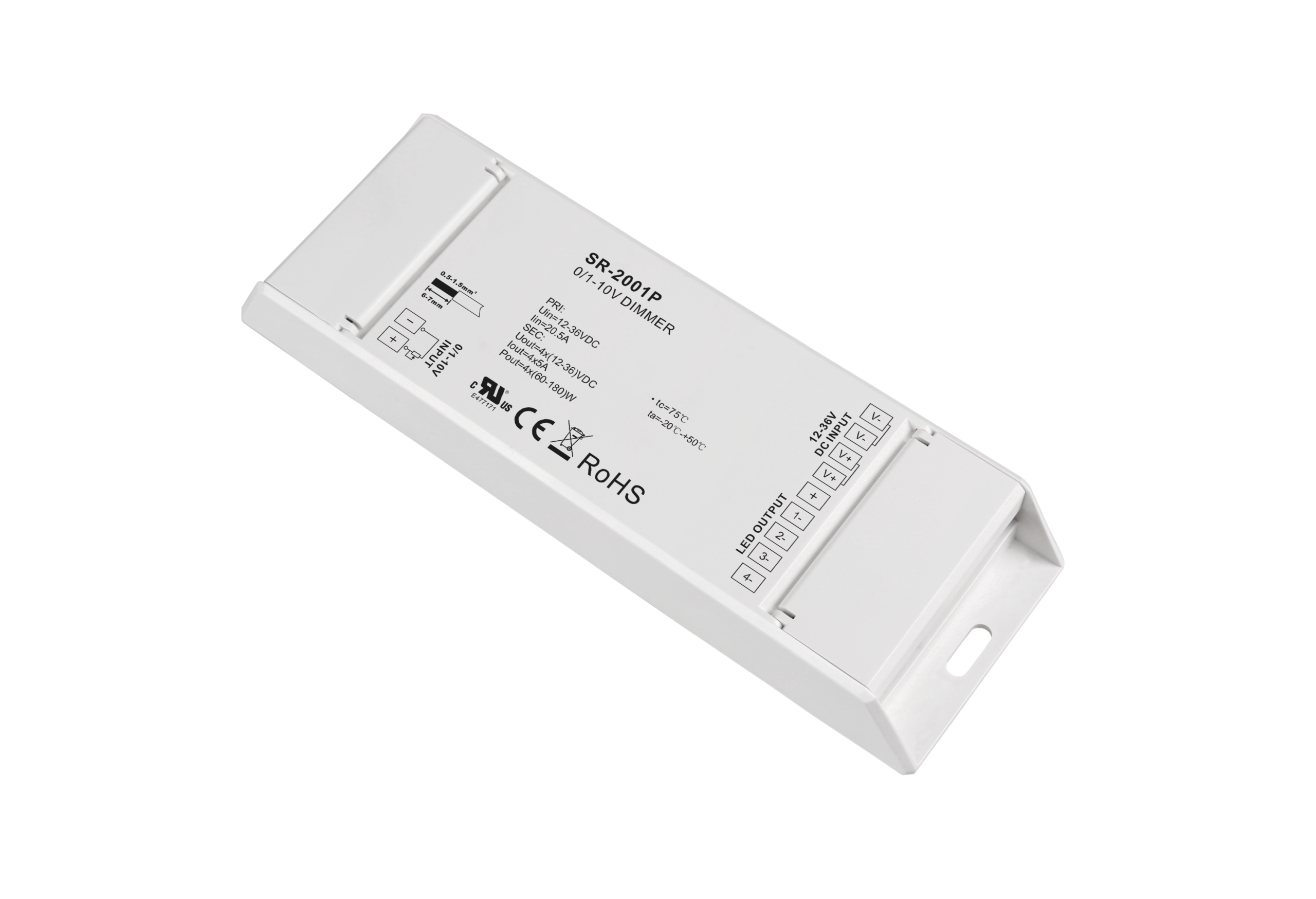

The SR-2001P is a constant voltage 0/1-10V LED dimmer with 4 channel, maximum 5A per channel output and available in 12VDC, 24VDC and 36VDC output, which receives standard 1-10V dimming signal and outputs PWM signal. The LED dimmer is designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection. The 1-10V dimmer is designed with 1 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Başlıca Özellikler
- Constant voltage 0/1-10V LED dimmer with 4 channel, maximum 5A per channel output and available in 12VDC, 24VDC and 36VDC output
- Designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 1 channel 1-10V input and 4 channel PWM output
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- Çıkışı sınırsız bir şekilde genişletmek için güç tekrarlayıcı ile birlikte çalışmak.
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Çıkış Gücü | Çıktı Türü | Boyut (mm) |
|---|---|---|---|---|---|
| SR-2001P | 12-36VDC | 4CH, 5A/CH | 240-720W | Sabit Gerilim | 46*178*18 |
Ürün Boyutları
Kablolama Şeması
