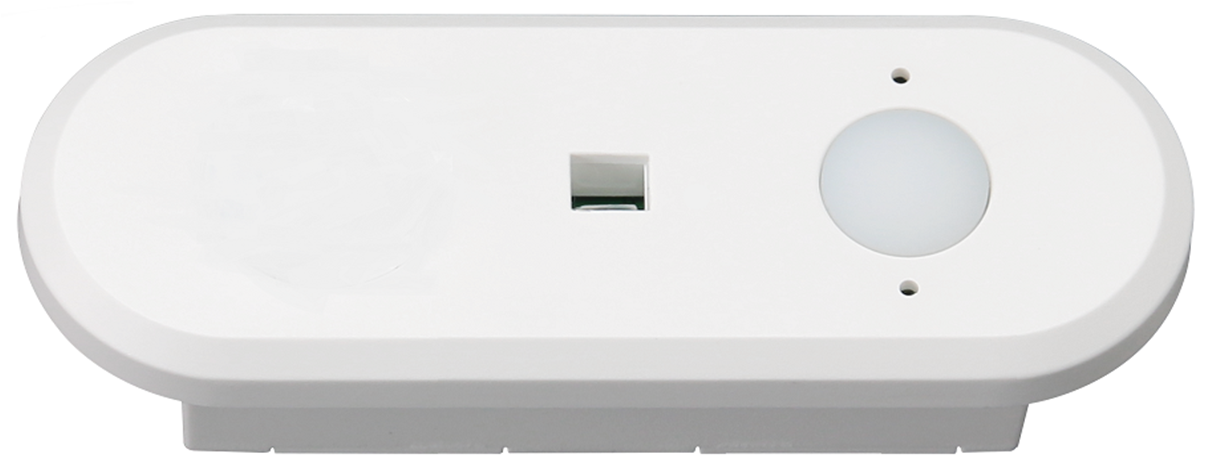

The fixture integrated multi-sensor is DALI-2 device which combines motion sensor and light lux sensor. The device performs motion detection and measures illuminance level. The DALI-2 multi-sensor can work with DALI LED drivers or luminaires and it is directly integrated into the fixture with knockout. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for low bay applications which need sensor based automation.
Başlıca Özellikler
• DALI-2 & D4i certified
• Microwave motion detection
• Motion sensor instance type 3 (303)
• Illuminance measurement
• Light Lux sensor instance type 4 (304)
• Autonomous sensor-based control
• Seamlessly working with D4i(DALI-150 enabled）drivers
• Zhaga book 20 knockout
• Plug & Play
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Çıkış Sinyali | Power Consumption | Sensör Tipi | Algılama Aralığı |
|---|---|---|---|---|---|
| SR-DA9035A-MW | 12-24VDC | DALI | Max. 30mA | Mikrodalga Sensörü | φ5m@2.5m |
Kablolama Şeması
