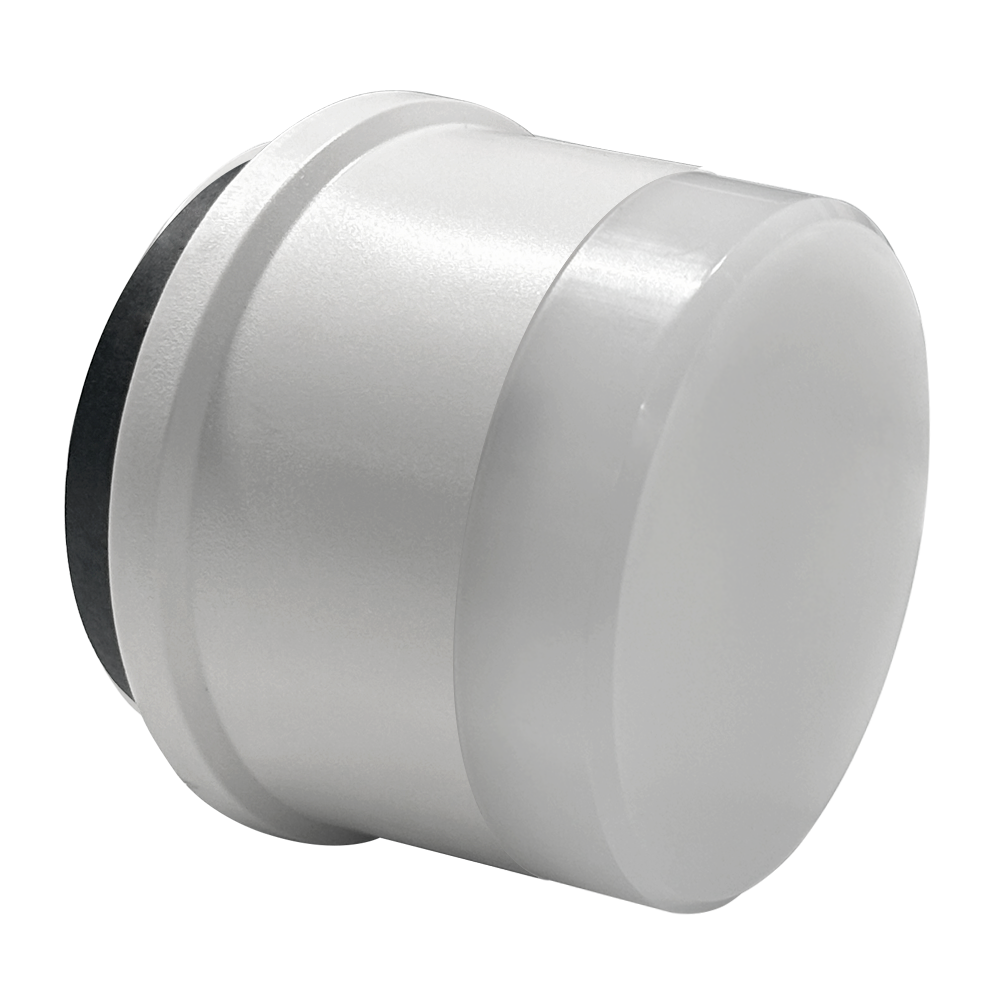

The IP65 motion sensor combines motion sensor and light sensor. The device performs motiondetection and measures illuminance level. With standard ZHAGA Book 18 interface socket, the sensor can easily fit into various luminaires with no tools required.
Başlıca Özellikler
- Bluetooth to 0-10V sensor controller , Bluetooth® mesh network
- Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
- All devices on 0-10V line are broadcast controlled by mobile application
- Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
- Autonomos sensor-based control
- ZHAGA Book 18 socket
- On-board antenna
- Available with Magnetic reset (touch the top part of sensor for 5 seconds)
- Waterproof grade: IP65, suitable for outdoor luminaries
- 5 Years Warranty
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Giriş Sinyali | Çıkış Sinyali | 0-10V Çıkış Akımı |
Sensör Tipi
|
Algılama Aralığı |
|---|---|---|---|---|---|---|
| SR-SV9033Z-MW-V |
12-24VDC
|
Silvair Bluetooth
|
0/1-10V
|
Maks. 20mA
|
Mikrodalga Sensörü |
φ13m@12m |
Kablolama Şeması
