RF LED Touch Dimmer Switch SR-2830A

RF LED touch dimmer switch SR-2830A is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, and designed with touch color line, the touch dimmer switch features accurate smooth dimming and switching functions without any flickering.

Stok kodu: SR-2830A Kategoriler:

RF LED touch dimmer switch SR-2830A is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, and designed with touch color line, the touch dimmer switch features accurate smooth dimming and switching functions without any flickering. Each dimmer can control 4 different zones separately or synchronously with endless receivers in each zone, and 3 brightness or scenes can be saved for each zone. 256 level brightness adjustment without any flickering really does good to human eyes. Humanized backlighting function enables the LED dimmer switch to be found even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Başlıca Özellikler

  • Ultra sensitive high strength glass touch panel with touch color line, accurate and fast control of brightness
  • Touch the color line to dim the brightness
  • Control 4 different zones separately or synchronously with endless receivers in each zone
  • Save 3 brightness or scenes for each zone
  • Cihaz kapatıldıktan veya sistem devre dışı bırakıldıktan sonra son parlaklık seviyesini hatırlayan hafıza fonksiyonu.
  • Çıkış gücünü sınırsız bir şekilde artırmak için güç tekrarlayıcı ile çalışın.
  • Italian/Australian, US wall mounted size available as well
  • Her beyaz için 256 kademeli parlaklık ayarı
  • Humanization backlighting design for finding in the dark
  • Alıcılar, iOS ve Android sistemlerine uygulama yüklendikten sonra WiFi-RF dönüştürücü ile çalışabilir.
  • Both DC and AC input versions are available



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar

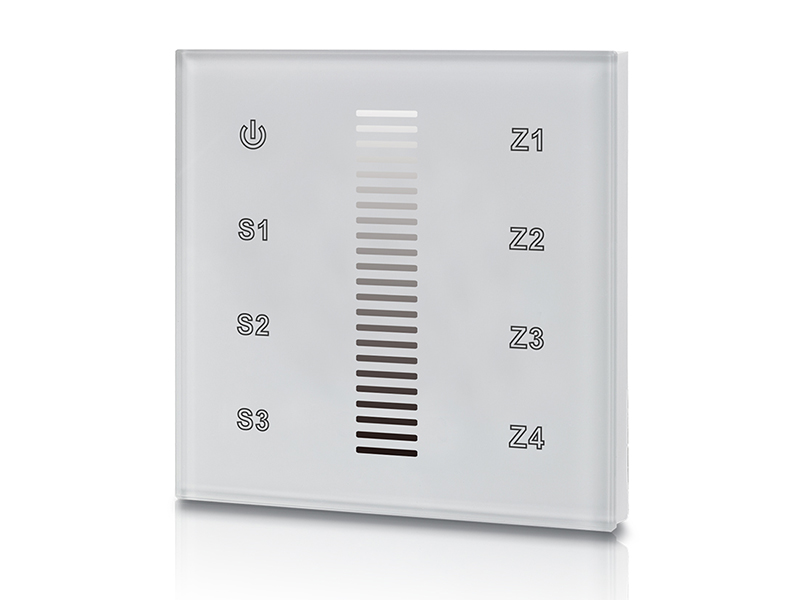

SR-2830A 12-24VDC/100-240VAC 434MHz/869.5MHz 86*86*41 Touch Sensor

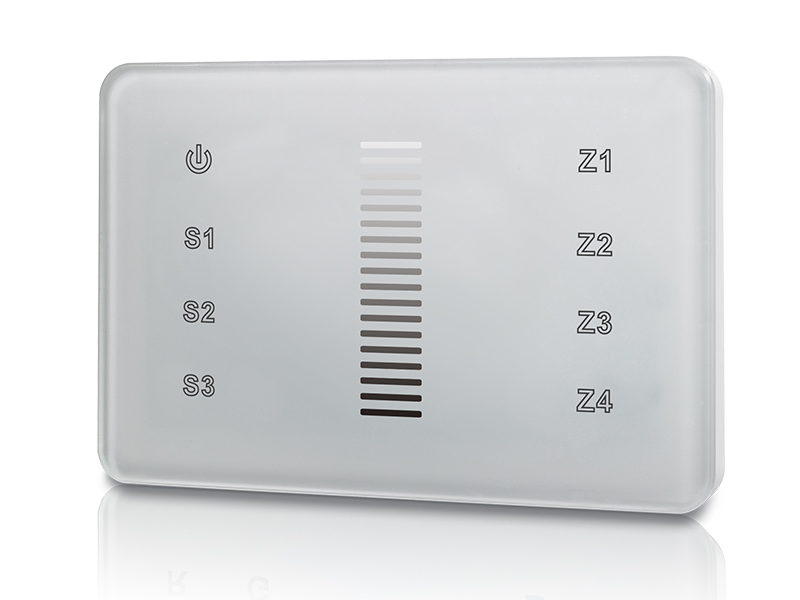

SR-2830A(IT) 12-24VDC/100-240VAC 434MHz/869.5MHz 120*80*41 Touch Sensor

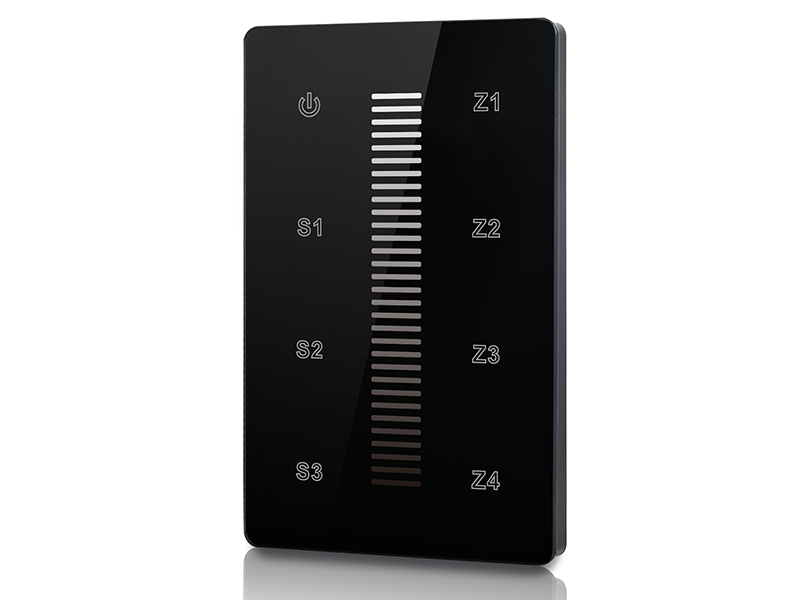

SR-2830A(US) 12-24VDC/100-240VAC 916,5 MHz 75*120*41 Touch Sensor











Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

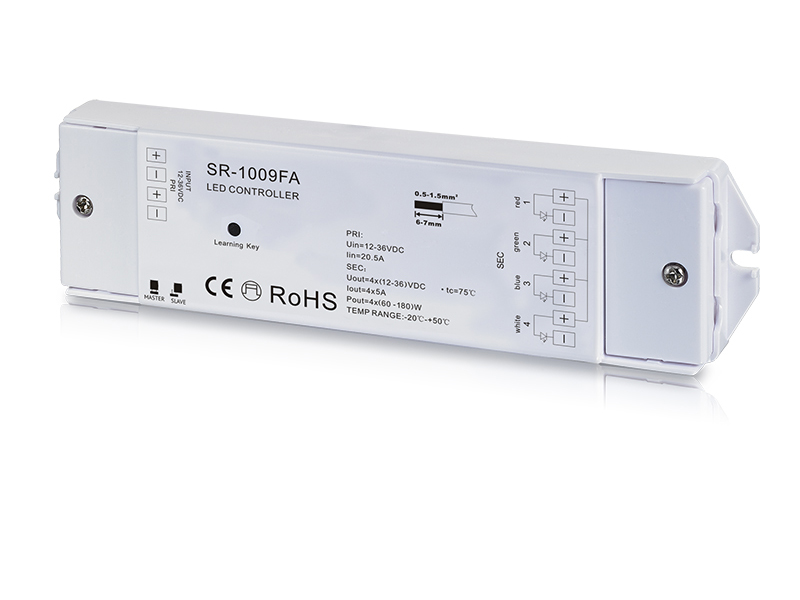

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Akım 58*168*28











Kurulum Şeması

Installation



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
