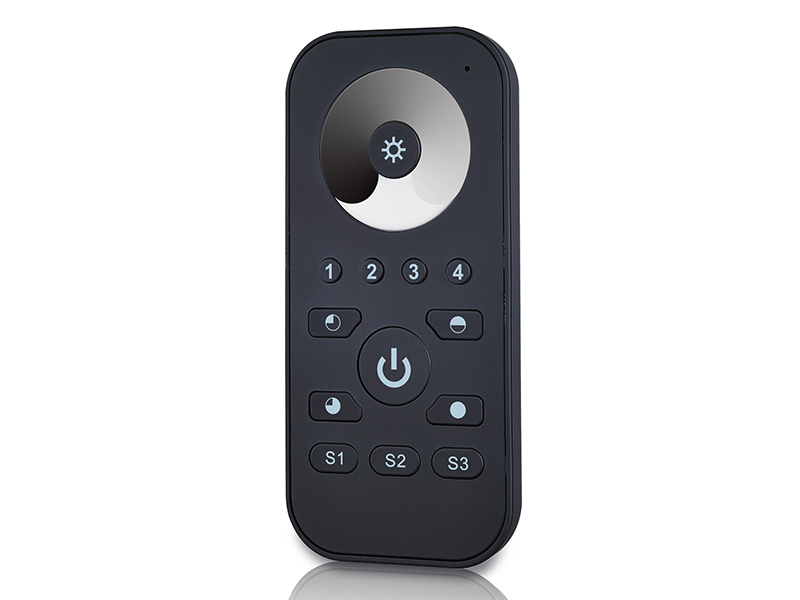

RF Uzaktan Kumandalı LED Işık Kısma Kontrol Cihazı SR-2819SDIM

RF LED ışık dimmer kontrol cihazı SR-2819SDIM, hem açma/kapama hem de kısma fonksiyonları sunan uzaktan kumandalı bir dimmer kontrol cihazıdır. Dokunmatik renk tekerleği ile tasarlanan dimmer kontrol cihazı, tek renkli LED aydınlatma için tekerleğe dokunarak kaydırma yöntemiyle titreşimsiz, yumuşak bir kısma sağlar.

Stok kodu: SR-2819SDIM Kategoriler:

RF LED light dimmer controller SR-2819SDIM is a remote dimmer controller which offers both switch and dimming functions. Designed with a touch color wheel, the dimmer controller offers smooth dimming without any flickering by slide touching the wheel for single color LED lighting. Each LED dimmer can control 4 different zones separately or synchronously with endless receivers in each zone and 3 different scenes can be saved for each zone. 256 level brightness adjustment with dimming range from 0.1% to 100% enables the LED dimmer to achieve millions of colors. 25%, 50%, 75% and 100% brightness can be accessed directly by buttons. Humanized memory function enables the controller to remember the last brightness after turn off or cut off. Compatible with SR-1009 series RF receivers that are available in constant voltage and constant current versions, the remote LED dimmer controller is capable of controlling different types of LED light. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Başlıca Özellikler

  • Ultra sensitive touch control brightness touch wheel for accurate and fast color control
  • Touch the color wheel to choose brightness
  • Her bölgede sınırsız sayıda alıcı kullanarak 4 farklı bölgeyi ayrı ayrı veya eş zamanlı olarak kontrol edin.
  • Save 3 different scenes for each zone
  • Control distance around 20-30 meters
  • 256 level brightness adjustment for each white to achieve millions of colors
  • 0,1% ile 100% arasında titreşimsiz, sorunsuz karartma.
  • 25%, 50%, 75% and 100% brightness can be accessed directly by buttons
  • Humanized memory function to remember last Kelvin after turn off or cut off
  • Çıkışı sınırsız bir şekilde genişletmek için güç tekrarlayıcı ile birlikte çalışmak.
  • Alıcılar, iOS ve Android sistemlerine uygulama yüklendikten sonra WiFi-RF dönüştürücü ile çalışabilir.



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar
SR-2819SDIM 4,5VDC 434MHz/869.5MHz/916.5MHz 55*120*17 RF Kablosuz











Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

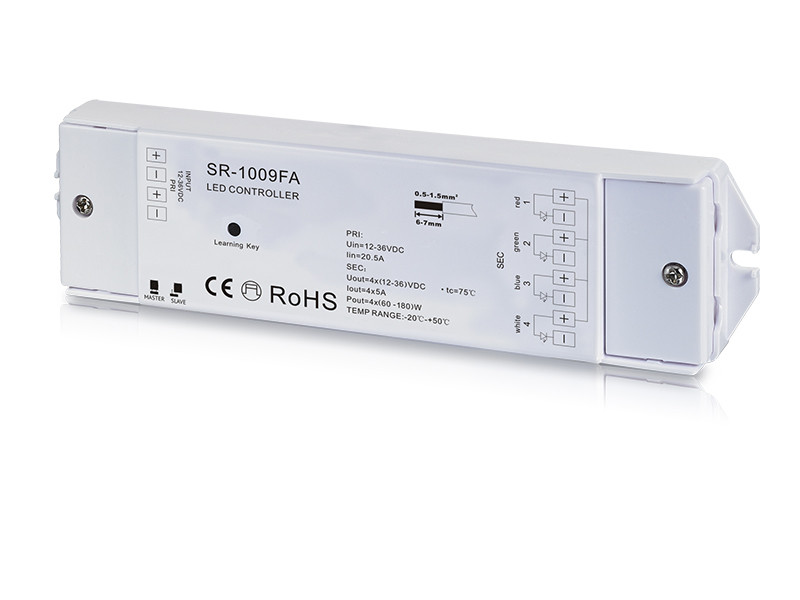

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18

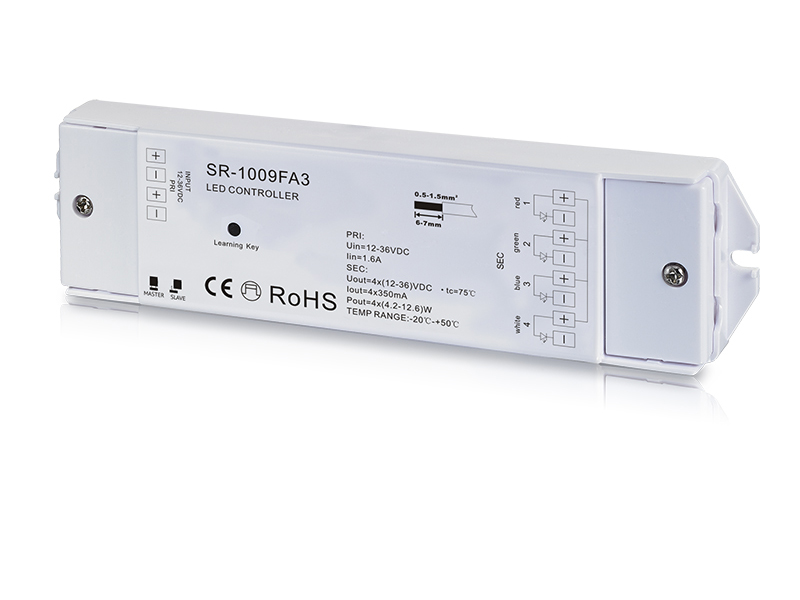

SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Akım 58*168*28













Ürün Boyutları

Product Dimension



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
