RF rotary LED dimmer SR-2836R is a rotary dimmer controller which offers both switch and smooth brightness dimming functions for single color LED lighting. Designed with sleek compact appearance, high strength tempered glass material and rotary knob, the LED dimmer switch offers accurate smooth dimming and switch functions without any flickering. Each rotary LED dimmer can control 1 zone with endless receivers in each zone. Smooth dimming from 0.1%-100% without any flickering can be very comfortable for human eyes. It is quite easy to switch on/off by clicking the rotary knob and dim brightness by rotating the rotary knob. Compatible with SR-1009 series RF receivers which are available in both constant voltage and constant current versions, the rotary LED dimmer is capable of controlling different types of LED lighting. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems. Push dim function is available while receivers are connecting with a push switch.
Başlıca Özellikler
- Reliable and stable switch and dimming control function, control distance can be over 20 meters
- Battery in the remote with long lifespan which can last for 2 years
- Işıklandırmayı titreme olmadan yavaşça açıp kapatın.
- Karartma aralığı 0,1%-100%
- Control 1 zone with endless receivers in each zone
- Alıcılar bağlandıktan sonra, bir düğmeye basılarak ışık şiddeti ayarlanabilir ve açılıp kapatılabilir.
- Receivers can work with power repeater to expand the output power unlimitedly
- Italian/Australian, US wall mounted size available as well
- Rotary adjustment, wall mounted panel
- Alıcılar, iOS ve Android sistemlerine uygulama yüklendikten sonra WiFi-RF dönüştürücü ile çalışabilir.
Uzak
| Parça No. | Çalışma Gerilimi | Çalışma Frekansı | Boyut (mm) | Notlar |
|---|---|---|---|---|

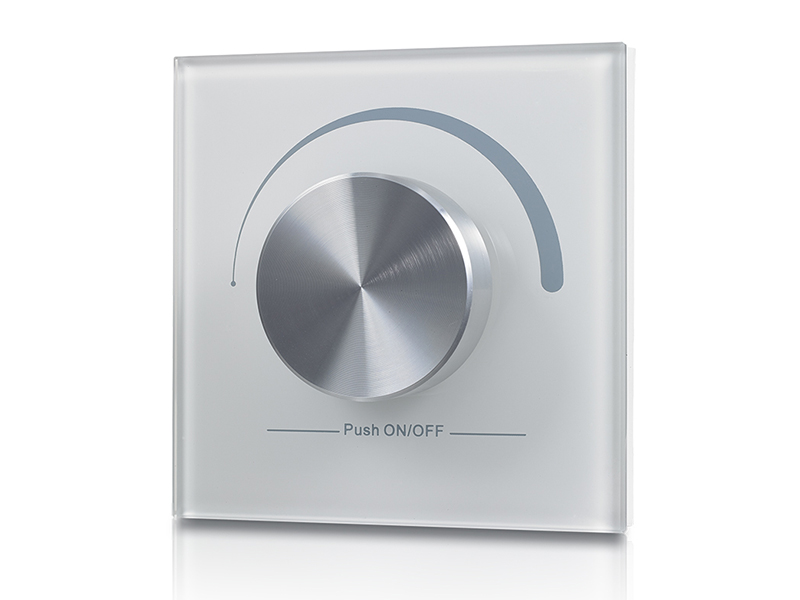

| SR-2836R | 3VDC | 434MHz/869.5MHz | 86*86*41 | RF Kablosuz |

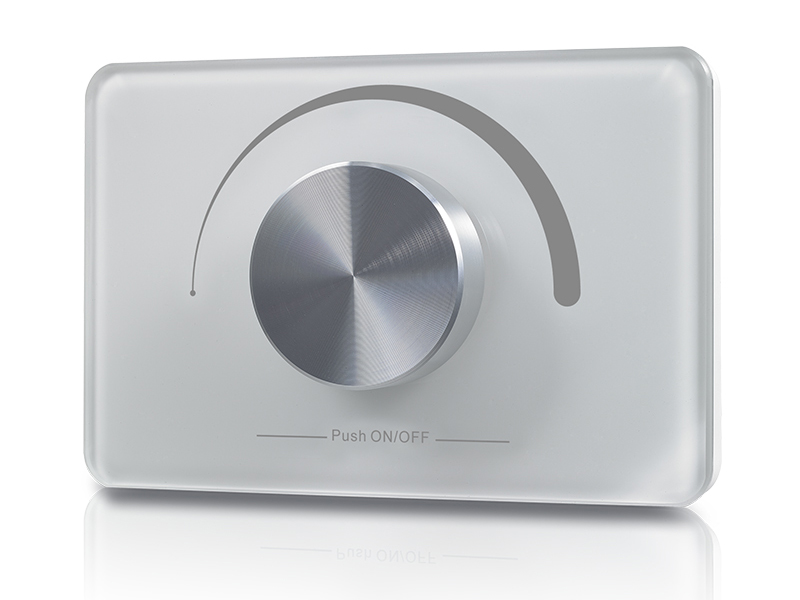

| SR-2836R(IT) | 3VDC | 434MHz/869.5MHz | 120*80*41 | RF Kablosuz |

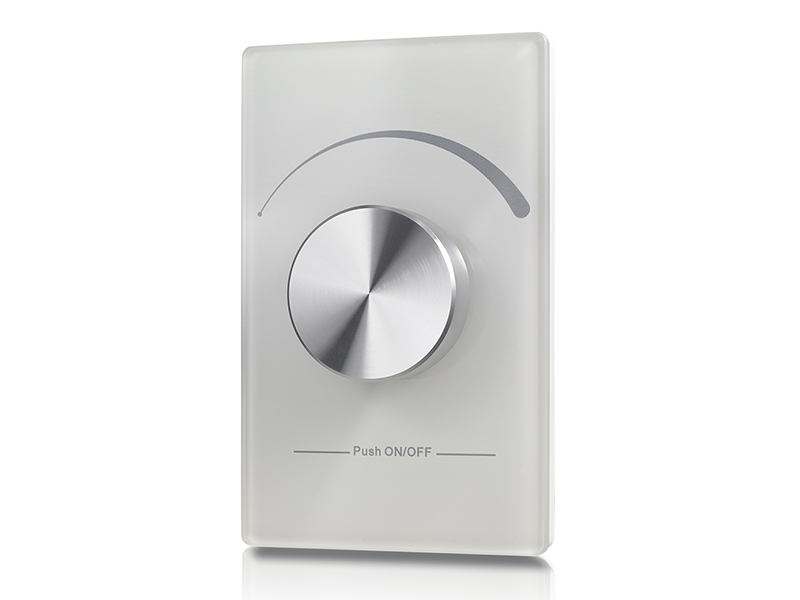

| SR-2836R(US) | 3VDC | 916,5 MHz | 75*120*41 | RF Kablosuz |
Uyumlu Alıcı
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Çıkış Gücü | Çıktı türü | Boyut (mm) |
|---|---|---|---|---|---|

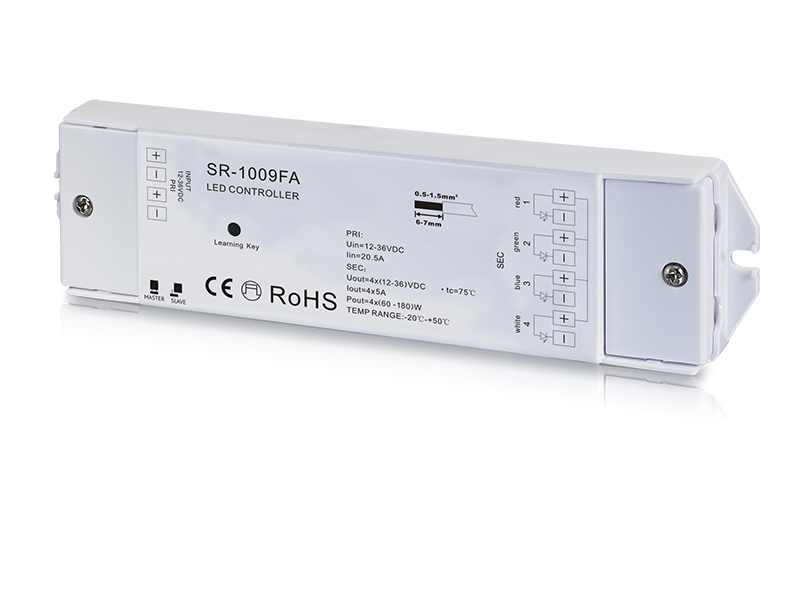

| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Sabit Gerilim | 46*178*18 |
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Sabit Akım | 46*178*18 |
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33,6-100,8 W | Sabit Akım | 46*178*18 |
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Sabit Akım | 58*168*28 |
Kurulum Şeması

Alıcı Kablolama Şeması
