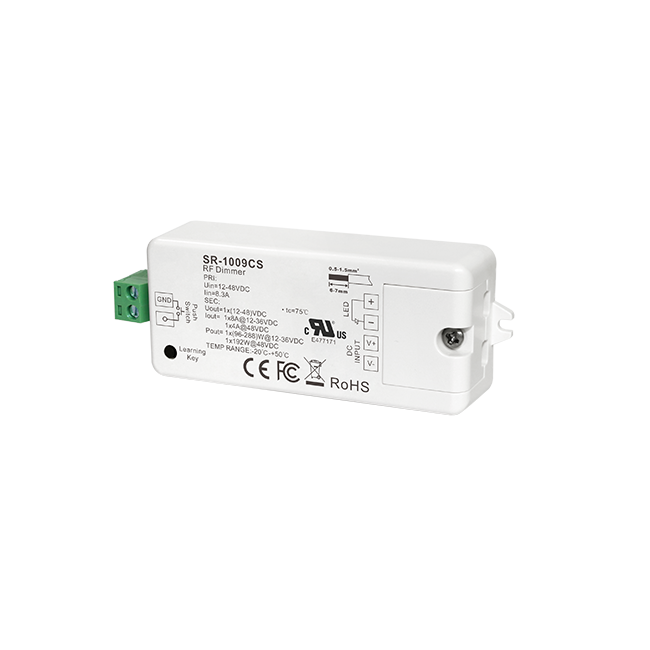

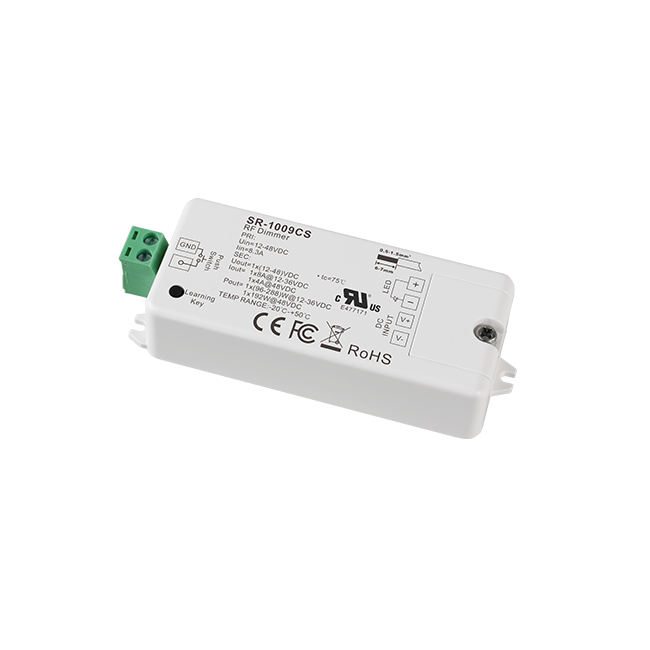

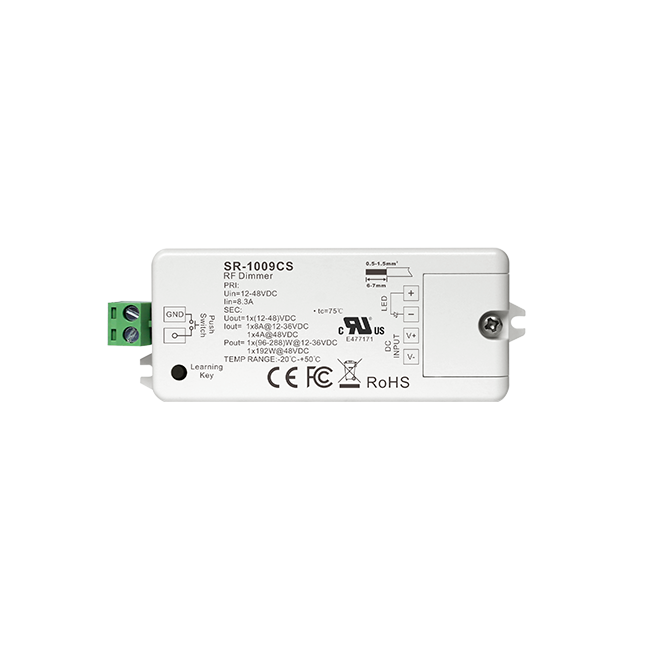

The RF receiver SR-1009CS is a 1 channel 12-48V constant voltage RF LED dimmer with maximum 8A per channel output, which can be compatible with a variety of remotes to switch and dim single color LED lighting. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Smooth brightness adjustment without any flickering can be achieved by the RF dimmer. Push dim function is available while connected with a push switch. While working with WiFi transmitter, the RF dimmer can be WiFi controlled by APP installed on IOS or Android mobile devices.
Key Features
- 1 channel 12-48V constant voltage rf controller, maximum 8A per channel
- To dim and switch single color LED lighting
- Full compatibility with a variety of single color RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be WiFi controlled by APP installed on IOS or Android moble devices while working with WiFi transmitter
- Smooth brightness adjustment without any flickering
- Radio frequency available: 869.5/434/916.5MHz
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (LxWxH) |
|---|---|---|---|---|---|
| SR-1009CS | 12-48VDC |
1x8A@12-36VDC
1x4A@48VDC
|
1x(96-288)W@12-36VDC
1x192W@48VDC
|
Constant Voltage | 95x37x20mm |
Product Dimension
Wiring Diagram
