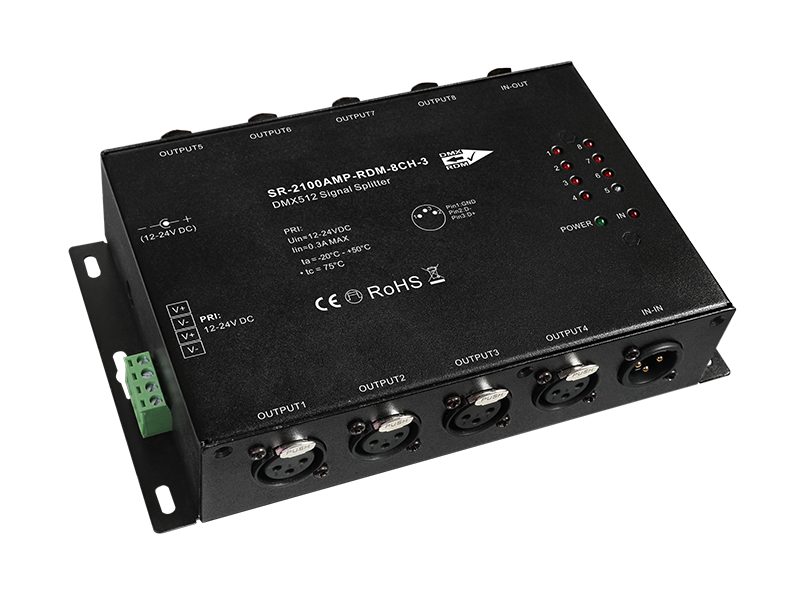

Product Description
This 8-Way RDM Enabled DMX Splitter can extend both cable distance (up to 300m) and the number of devices (up to 32 devices per output, total 256 devices). It is a plug and play device, with 3/5-Pin XLR male DMX input, eight XLR female DMX outputs. 8 outputs are full isolated from the input, and the outputs are not isolated from each other. Each output provides LED data indicators, providing full confirmation of proper operation. This splitter supports bi-directional communications for discovery, addressing and DMX control of RDM enabled devices. Moreover, a feed through XLR female connector is provided at the input, allowing this unit to be placed in the middle of an existing DMX chain.
Key Features
• 8-Way RDM enabled DMX splitter
• DMX/RDM compatible
• RDM enabled – ANSI E1.20 compliant
• Extend both cable distance (up to 300m) and the number of devices (up to 32 devices per output, total 256 devices)
• Plug and play, 3/5-Pin XLR male DMX input, eight XLR female DMX outputs
• 8 outputs are full isolated from the input, the outputs are not isolated from each other
• Each output provides LED data indicators, providing full confirmation of proper operation
• Supports bi-directional communications for discovery, addressing and DMX control of RDM enabled devices

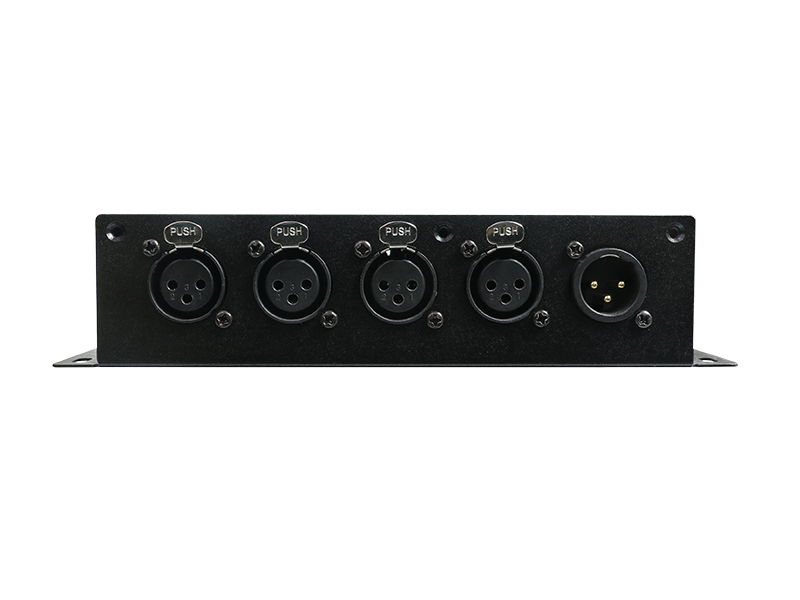

• A feed through XLR female connector is provided at the input, allowing this unit to be placed in the middle of an existing DMX chain
Specifications
| Part No. |
Input Voltage |
Input |
DMX/RDM |
Size(LxWxH) |
|---|---|---|---|---|
|
SR-2100AMP-RDM-8CH-5/3 |
12-24VDC |
DMX/RDM |
Input: (1x) Male 3-Pin XLR Input: (1x) Male 5-Pin XLR |
199x125x44mm |
Product Dimension
Wiring Diagram
