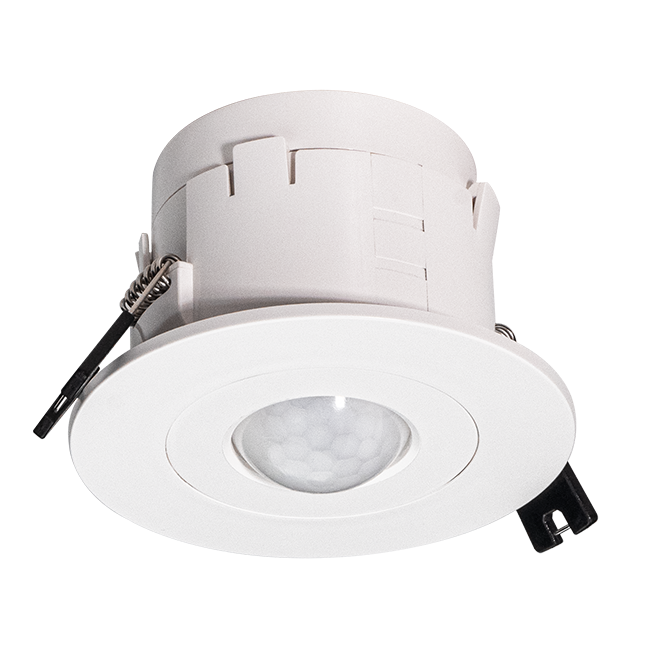

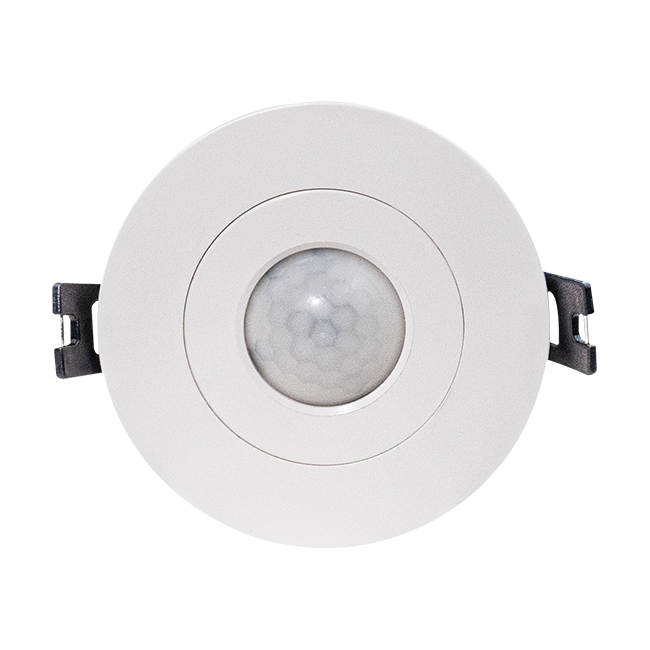

The ceiling-mounted sensor SR-SV9030D-PIR-10AD is a PIR Bluetooth-to-DALI sensor powered by 220-240VAC, with a 10A relay output. It receives Bluetooth mesh signal input and provides DALI output signal. The sensor combines occupancy sensing, daylight harvesting, DALI dimming, and Silvair Bluetooth into one device. It utilizes a Bluetooth® Low Energy (BLE) mesh network. Commissioning can be performed through the SILVAIR mobile app or desktop site.
Key Features
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• On-board antenna
• 5 years warranty
• Free Lens mask for aisle and semicircular lighting distribution

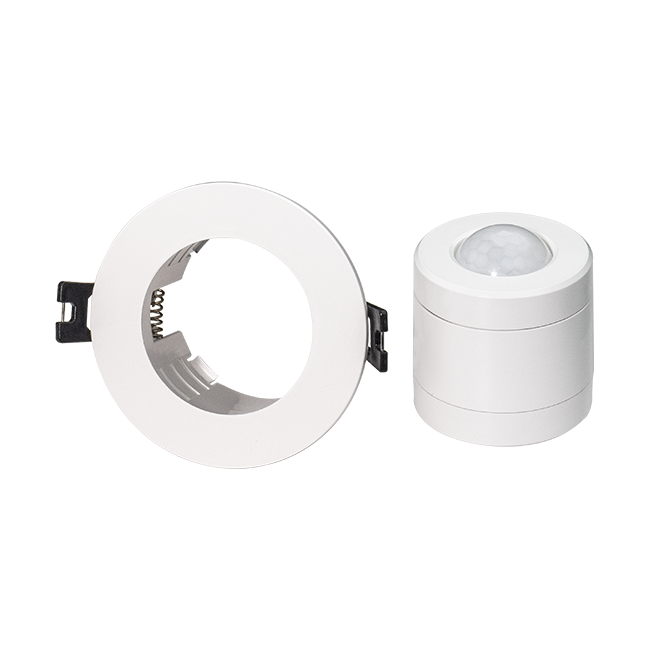

• Flexible installation: recessed-mounted or surfaced-mounted
Specifications
| Part No. | Operating Voltage | Input Signal | Output Signal | Relay | Sensor Type | Detection Range |
|---|---|---|---|---|---|---|
| SR-SV9030D-PIR-10AD | 220~240VAC, 50/60Hz | Silvair Bluetooth | DALI | Max.10A, 2000W LED | PIR Sensor | φ10m @ 3m |
Product Dimension
Wiring Diagram
