The IP65 motion sensor combines presence sensing, daylight harvesting, 0-10V dimming and Casambi radio technology. The sensor can work with 0-10V dim-to-off LED drivers, and the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.
Key Features
• PIR motion detection
• Daylight harvesting
• Works with 0-10V dim-to-off drivers
• Autonomous sensor-based control
• Can be use for outdoor applications

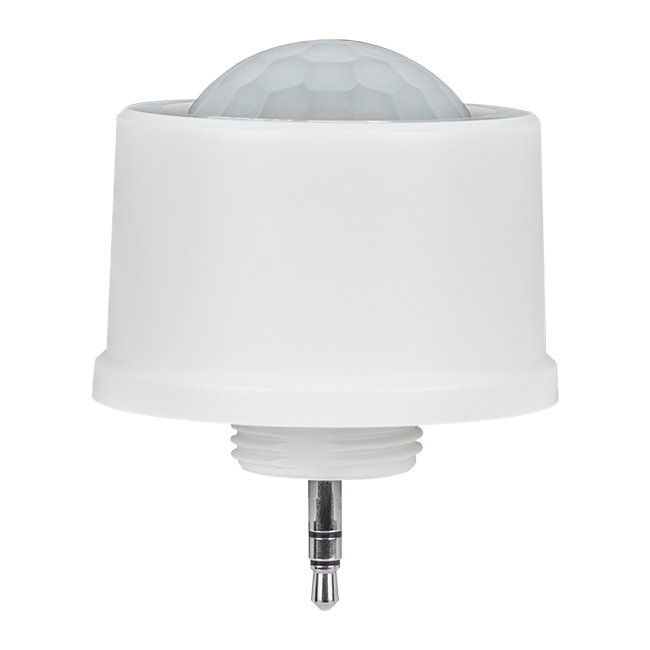

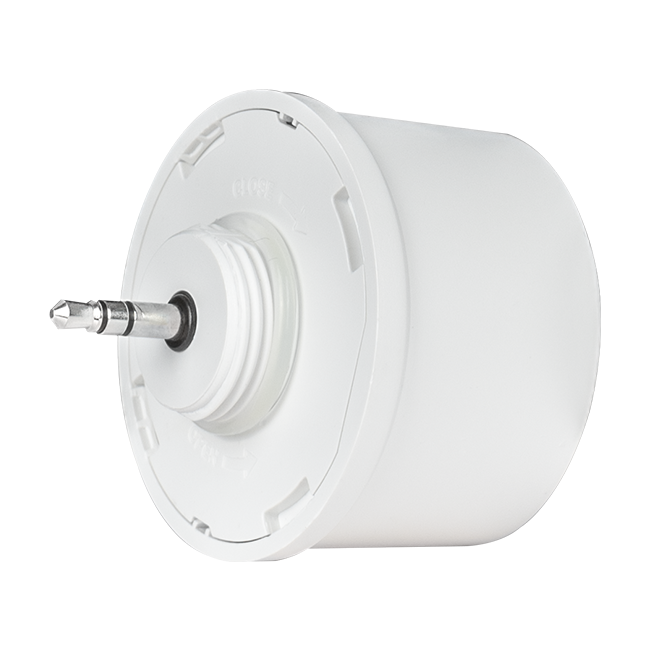

• 3.5mm Audio-Jack interface (Plug & Play)
• Daylight harvesting
• Works with 0-10V dim-to-off drivers
• Autonomous sensor-based control
• Can be use for outdoor applications
• 3.5mm Audio-Jack interface (Plug & Play)
Specifications
| Part No. | Power Supply | Input Signal | Output Signal | 0-10V Signal Output | Sensor Type | Detection Range |
|---|---|---|---|---|---|---|
| SR-CS9033J-PIR-V | 12-24VDC | Casambi Bluetooth | 0-10V | Max. 20mA | PIR Sensor | φ17m@17m |
Product Dimension
Wiring Diagram
