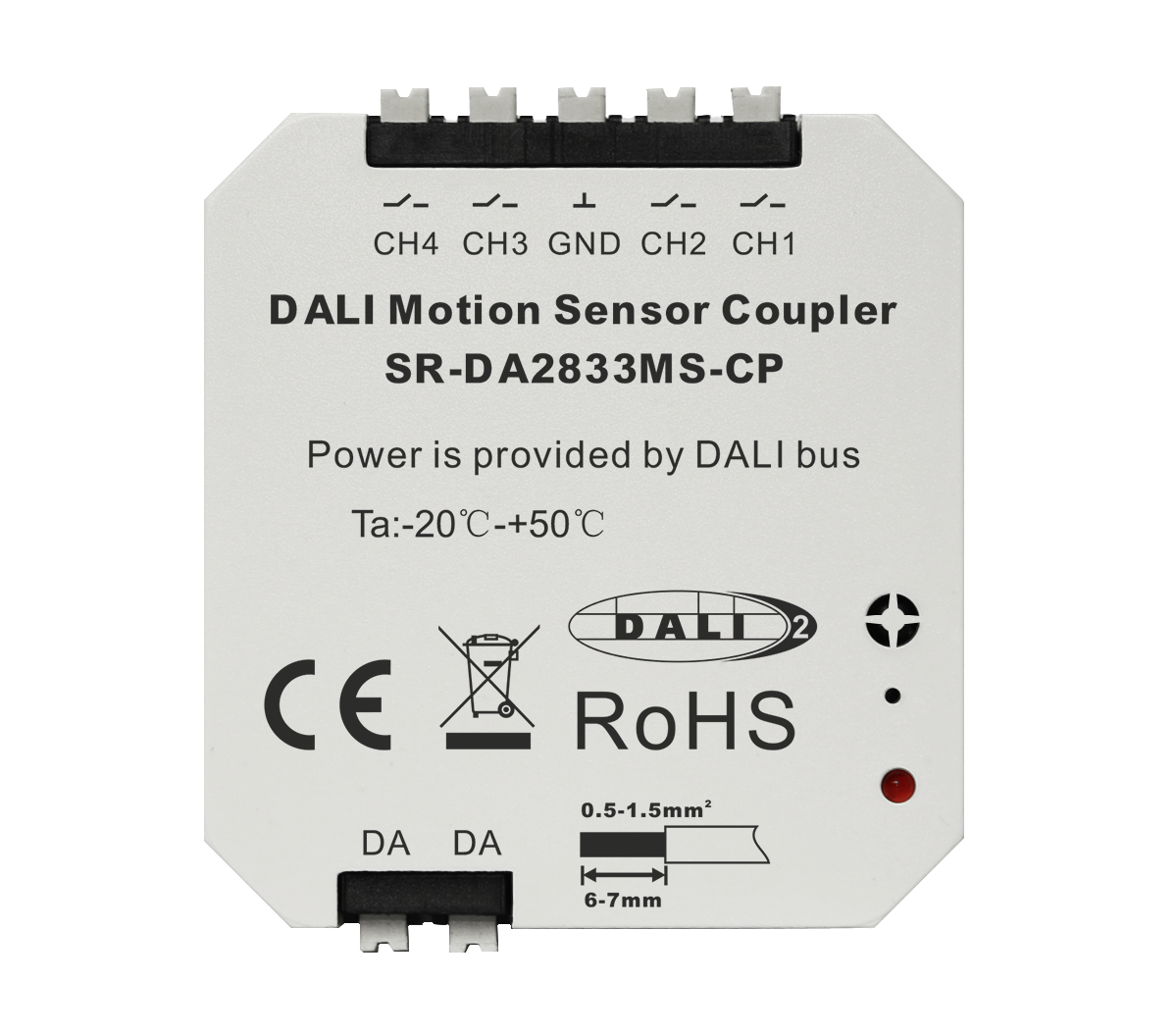

The DALI Motion Sensor coupler SR-DA2833MS-CP is DALI-2 certified DALI-2 control device with 4 channels dry contact input for normal motion sensors according to IEC62386-101, IEC62386-103 and IEC62386-301.
Key Features
- DALI-2 control device that integrates external motion detectors into DALI system
- Four DALI-2 motion detector instances are available for an easy integration
- In compliance with IEC62386-101, IEC62386-103, IEC62386-303, 4 occupancy sensor instances
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI bus powered, no extra power supply required
- Easy configuration via DALI-2 compliant central controller USB interface
- Easy installation: the device can be installed in a flush-mounted installation box
Specification
| Part No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | Dimension (mm) |
|---|---|---|---|---|
| SR-DA2833MS-CP | 2.7mA | 10mA | 4 | 49.8*43*15.1 |
Product Dimension
Wiring Diagram
