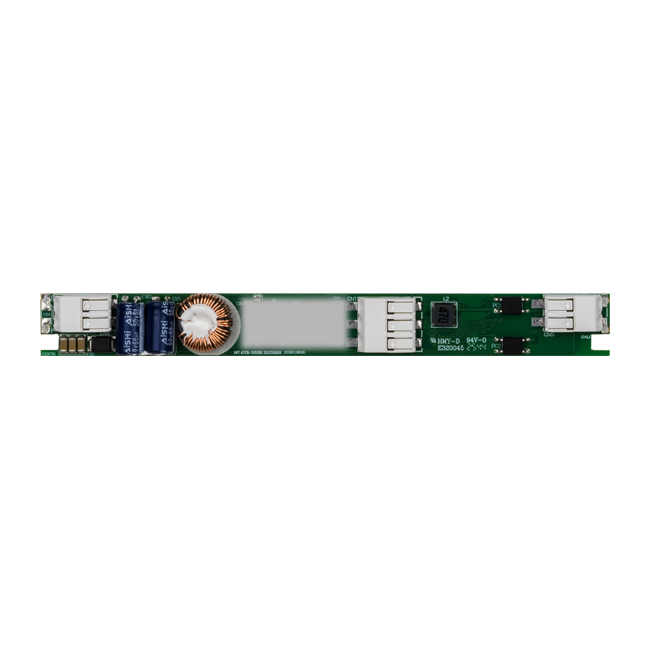

• Super slim design DALI DT8 LED controller
• Special design for magnet track light and linear lighting
• Magnet absorption installation application, no high frequency interference sound
• DC48V input, max. output power 38W total
• 2 channels 500-1050mA constant current output, dips to select multi operation current
• Deep and smooth dimming to 0.1%, flicker free
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-209.
• Built-in DALI-2 interface, DALI DT8 device
• Match all DALI systems in the market
• Waterproof grade:IP20
• 5 years warranty
Specifications
| Input Voltage | Input Current | Output Rated Power | Output LED Channel | Output Selectable Current |
|---|---|---|---|---|
| 48VDC±5% (Polarity Free) |
0.85A @ full load |
Max. 38W |
2 | 500-1050mA |
Product Dimension
