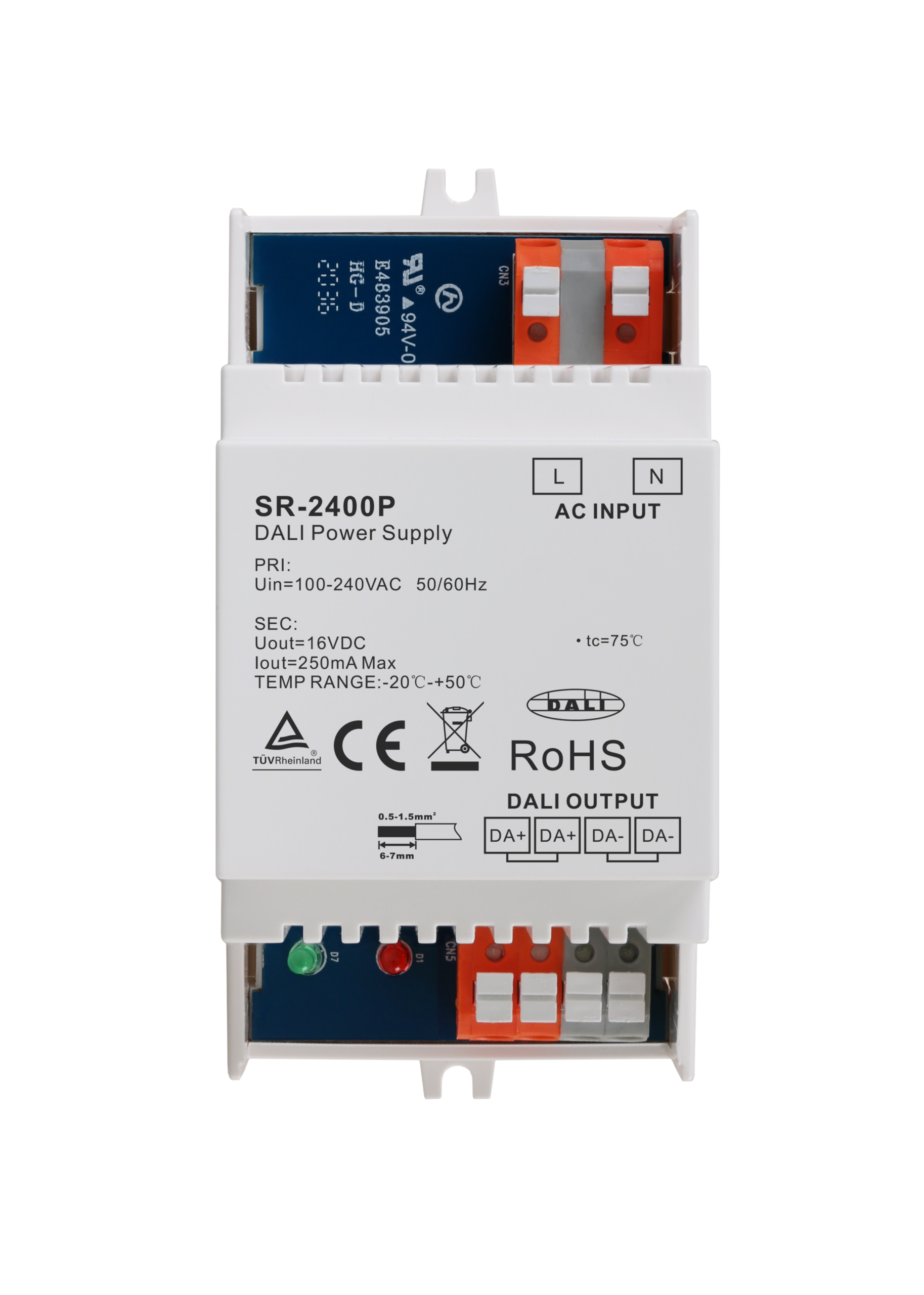

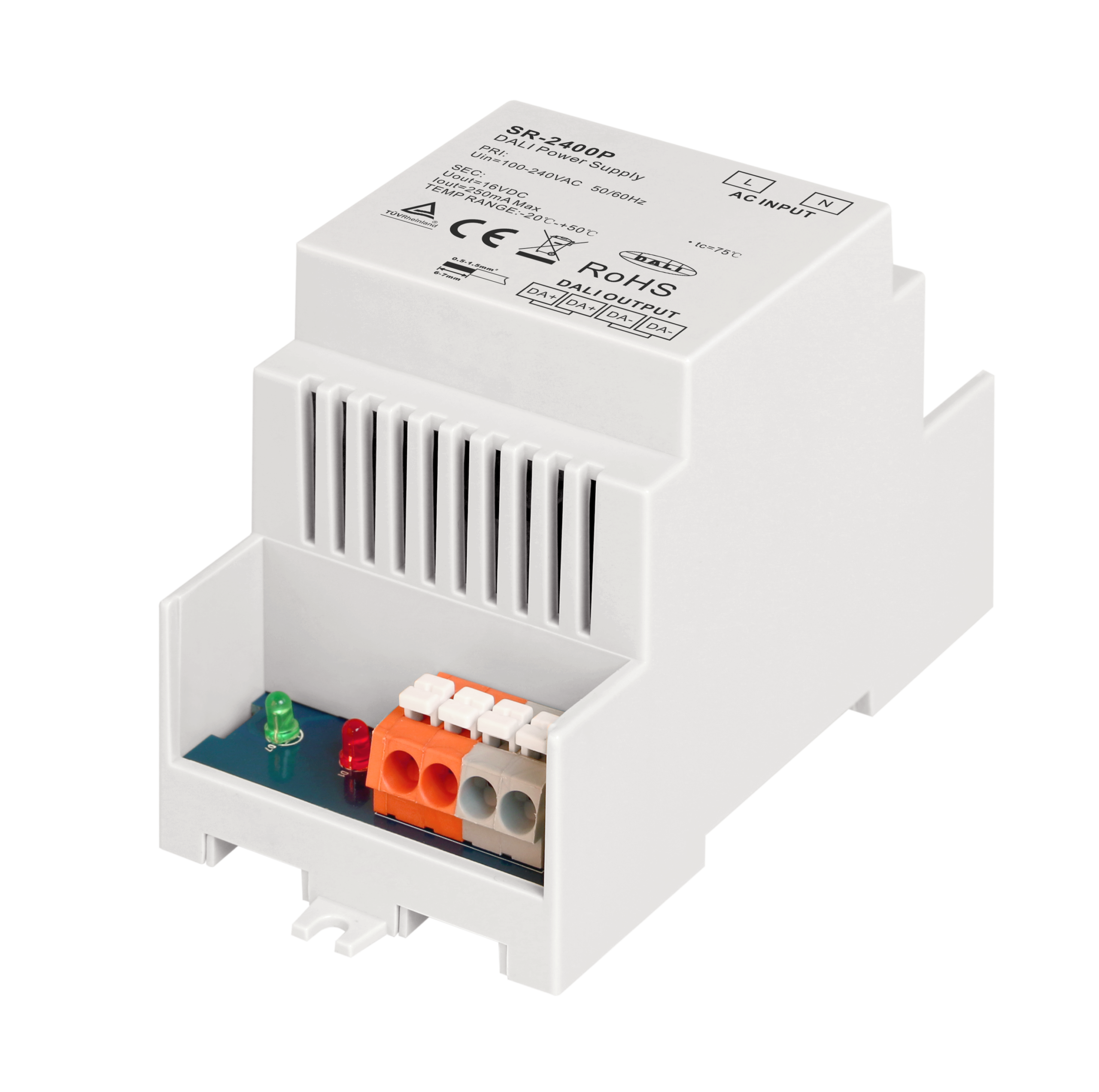

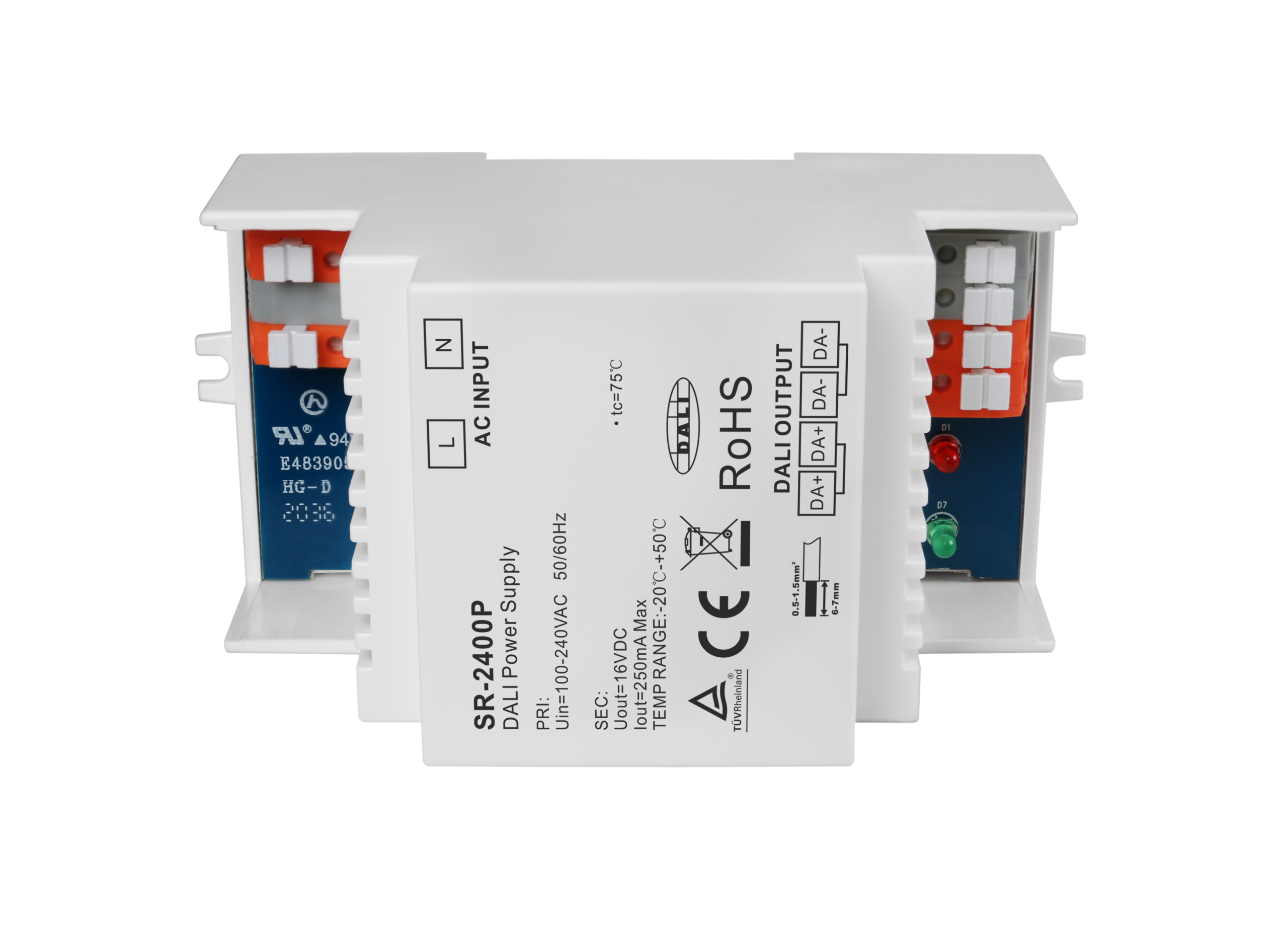

SR-2400P is a universal DALI power supply designed with compact size and wide range input voltage 100-240VAC with 250mA output current to power DALI bus. The DALI power features high reliability and stability with over current protection.
Key Features
- DALI power supply with 100-240VAC wide input and 250mA output current.
- To power DALI bus.
- Compact size.
- High reliability and stability.
- Over current protection.
Specifications
| Part No. | Input Voltage | Output Voltage | Output Current | Frequency | Dimension (LxWxH) |
|---|---|---|---|---|---|
| SR-2400P | 100-240VAC | 16VDC | 250mA Max | 50/60Hz | 110x53x65mm |
Product Dimension
Wiring Diagram
