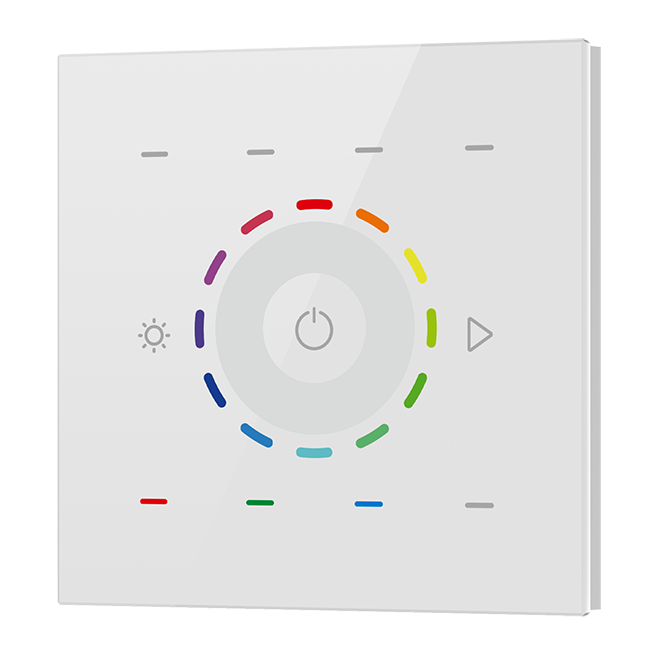

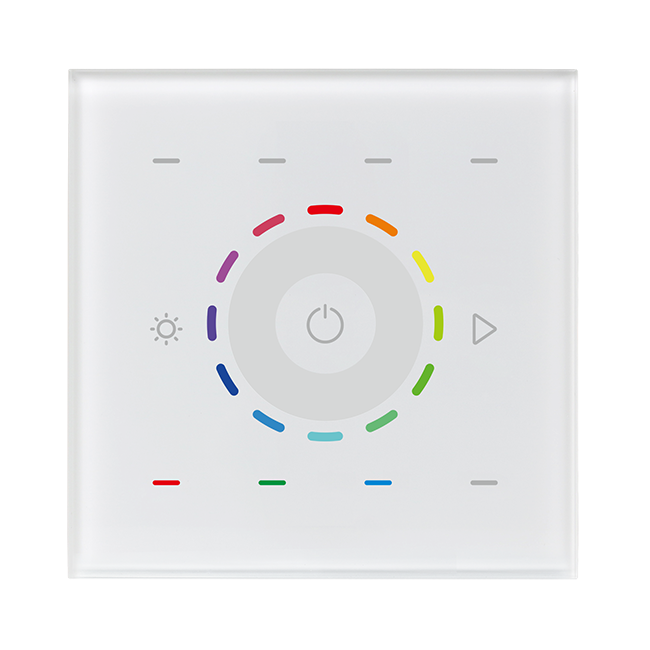

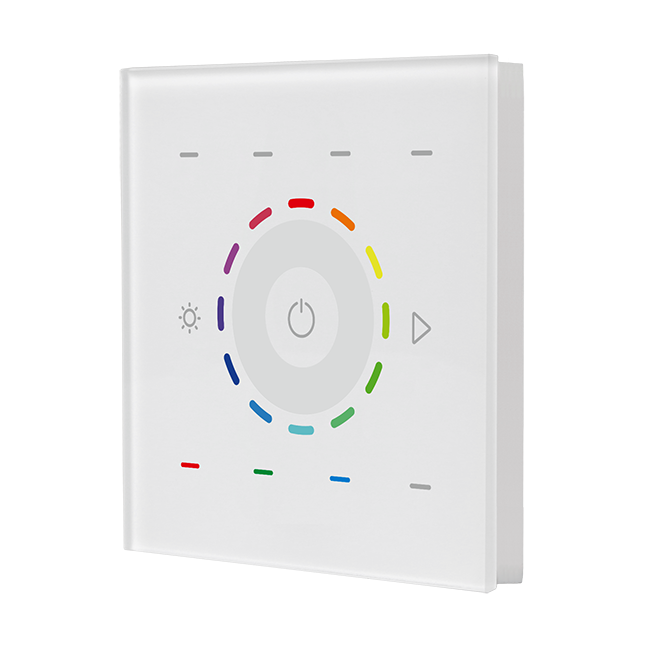

This touch-sensitive DALI glass panel (white/black) complies with IEC 62386 standards, ensuring compatibility with global DALI products. It controls 1 group and 4 scenes, configurable via rear rotary switches. Supporting DT8 RGBWAF devices, it enables precise color adjustment through a single DALI address and features 8 built-in color sequences.
Key Features
• Touch sensitive.
• Glass interface (white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation
• Enable to control 1 DALI Group and 4 DALI Scenes.
• Enable to set start DALI group number (0-15) and scene number (0-15) by rotary switches on the back.
• Support DT8 devices
• Color adjustment according to DALI specifications of Device Type 8, Color Type RGBWAF.
• Each DT8 device is controlled via a single DALI address
• Built-in 8 Color Sequences
Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|---|---|---|
| SR-2300NTR-RGBW-EU(DT8) | 12-24VDC | DALI Signal | 86x86x29.1 |

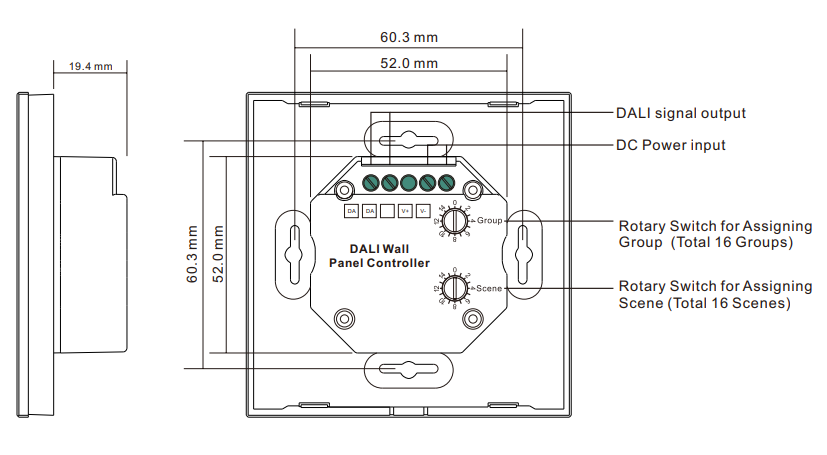

Product Dimension
-Dimension.png)
Wiring Diagram
-Wiring.png)
