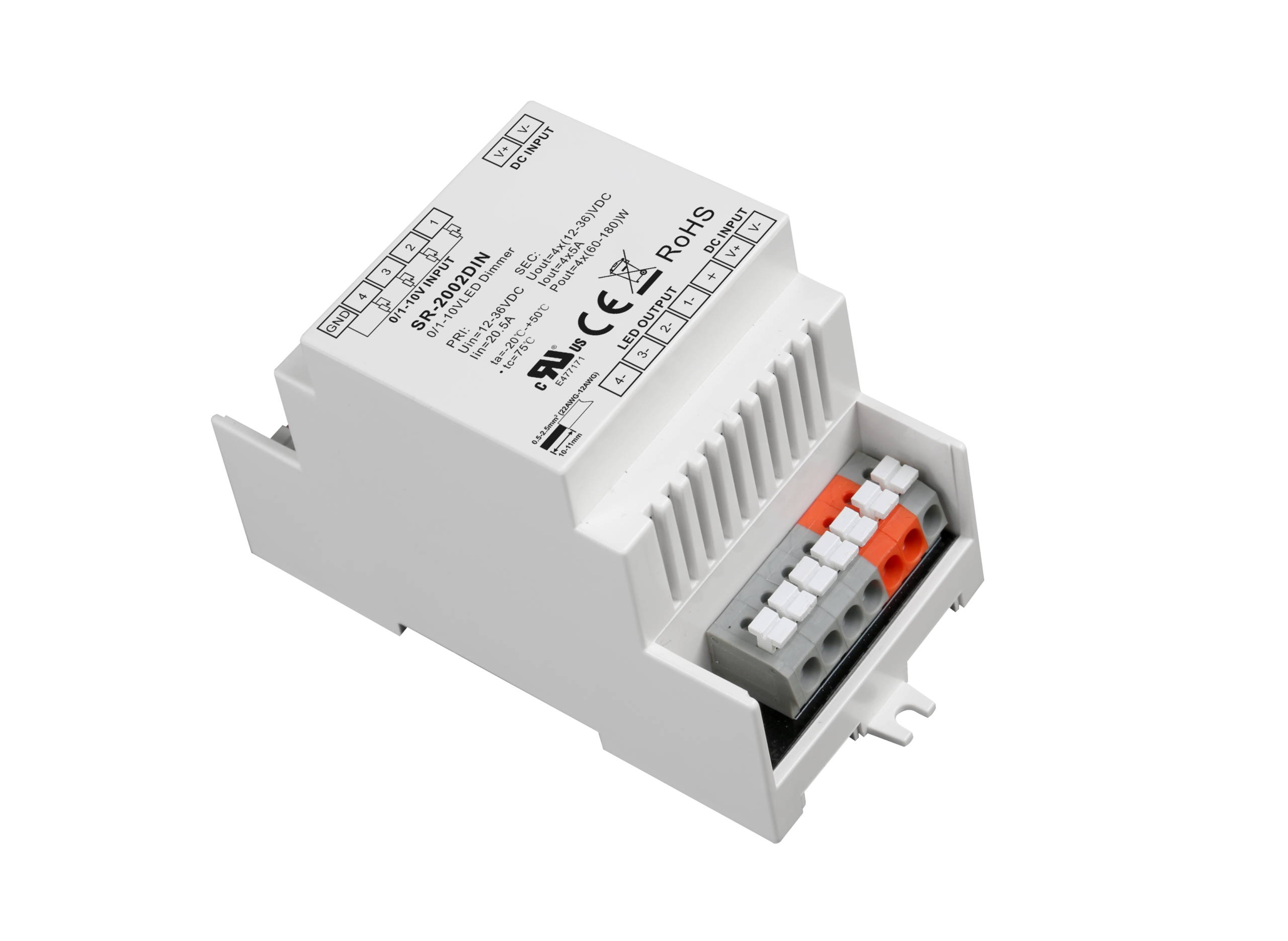

The SR-2002DIN series is a din rail mounted 0/1-10V dimmer which receives standard 1-10V dimming signal and outputs PWM signal. The dimmer switch is designed with 4 channel 1-10V input and 4 channel PWM output and available in constant voltage. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Key Features
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 4 channel 1-10V input and 4 channel PWM output
- Constant current and constant voltage versions both available
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2002DIN | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 65*106*53 |
Product Dimension
Wiring Diagram
