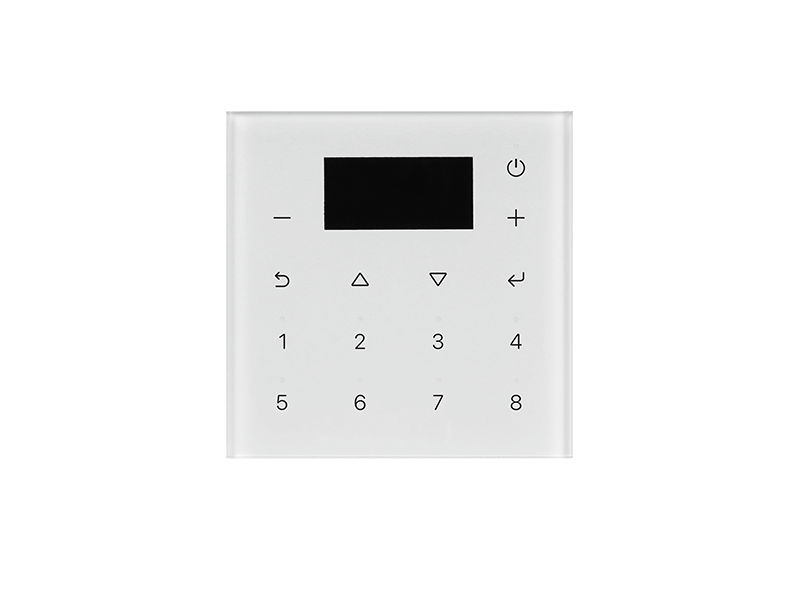

Product Description
The DMX512 control panel is a master controller designed to control the DMX decoders. The DMX512 control panel is a master controller designed to control the DMX decoders. It can control 512 DMX channels, and enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules configured to each group. The panel supports 5 different types of DMX load: Dim, CCT, RGB, RGBW, RGB+CCT. Moreover, this device has a five-year warranty.
Key Features
• A master controller designed to control the DMX decoders.
• Can control 512 DMX channels.
• Enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules configured to each group.
• Supports 5 different types of DMX load: Dim, CCT, RGB, RGBW, RGB+CCT.
• 5 years warranty
Specifications
| Part No. |
Power Supply |
Output Signal |
Power consumption |
Size(LxWxH) |
|---|---|---|---|---|
|
SR-2847 |
100-240VAC |
DMX512 signal |
< 15 mA |
86x86x41mm |
Product Dimension
Wiring Diagram
