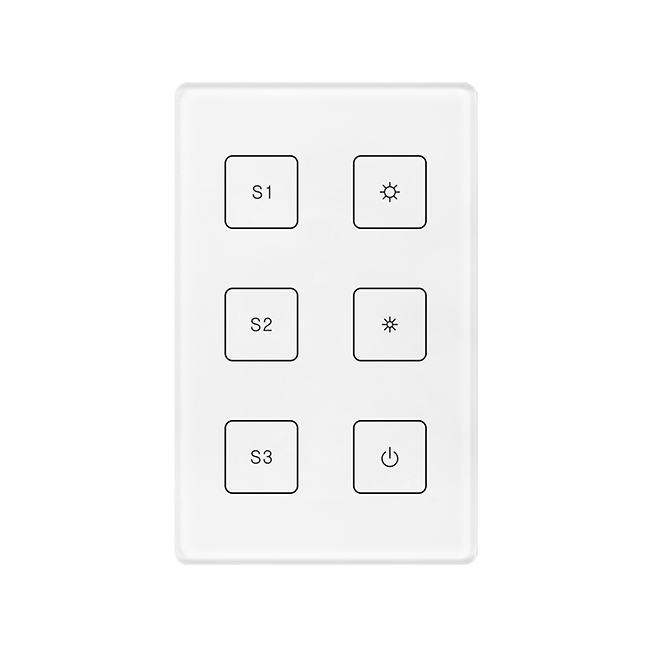

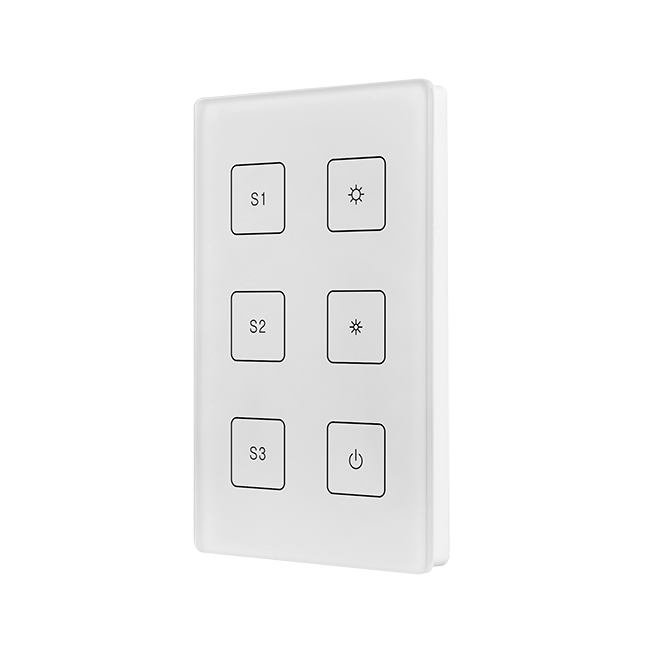

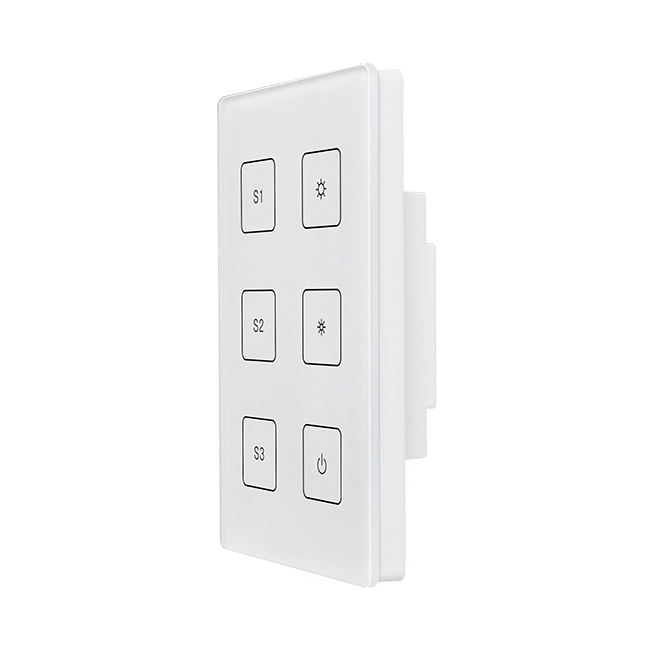

This DALI touch panel controller offers intuitive group and scene control for single-color lighting. Powered directly by the DALI bus with low 4mA current, it allows on/off switching, brightness adjustment, and control of one DALI group with up to 3 scenes. Rotary switches on the back enable easy configuration of group numbers (0–15) and scene numbers (0–15). With sleek touch operation, it provides a reliable and user-friendly solution for flexible DALI lighting management.
Key Features
• Touch sensitive, glass interface.
• Powered by DALI bus.
• Group & scene control; single color control

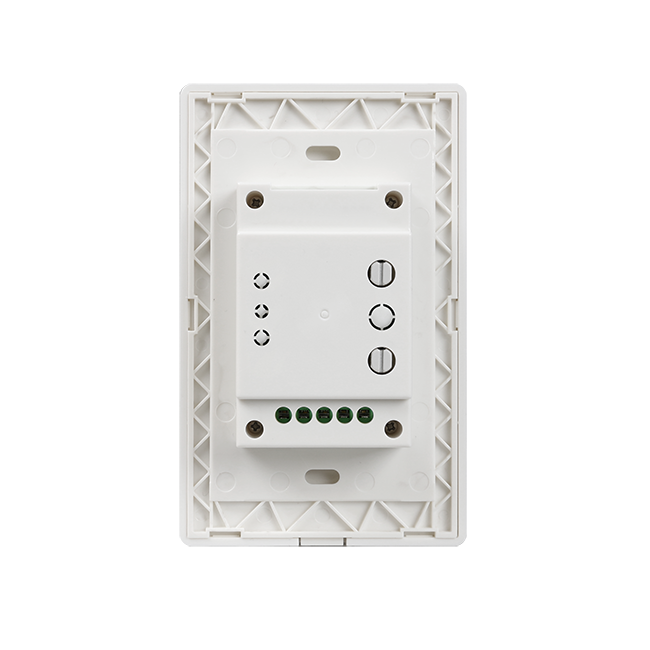

• Enable to control 3 DALI scenes, enable to set starting scene number via rotary switch on the back: (0-15 selectable).
• Enable to control 1 DALI group, set the starting Group number, and total 16 Groups (0-15) can be selected.
Specifications
| Power Supply | Operation Current | Output | Dimension (mm) |
|---|---|---|---|
| Supply By DALI Bus | 4mA | DALI Signal | 75x120x29.1 |

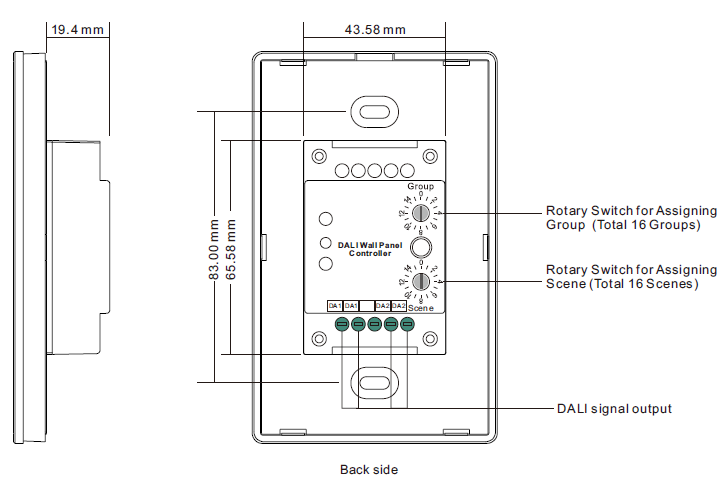

Product Dimension
-Dimension.png)
Wiring Diagram
-Wiring.png)
