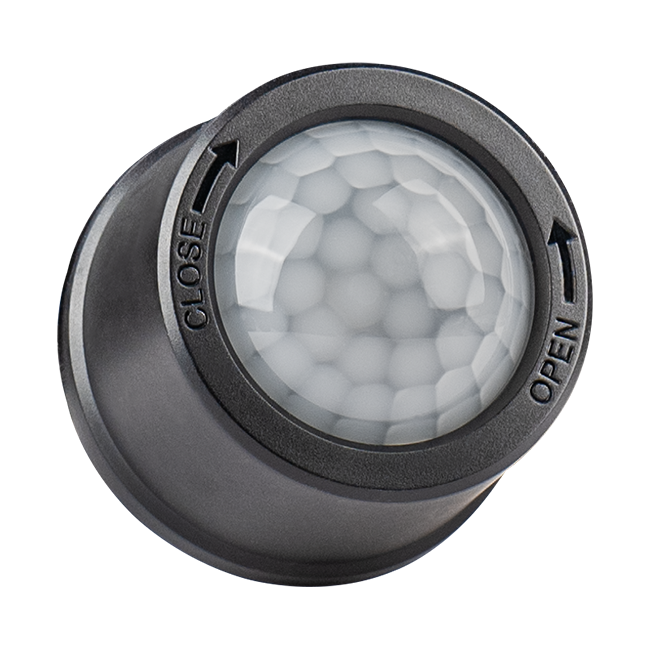

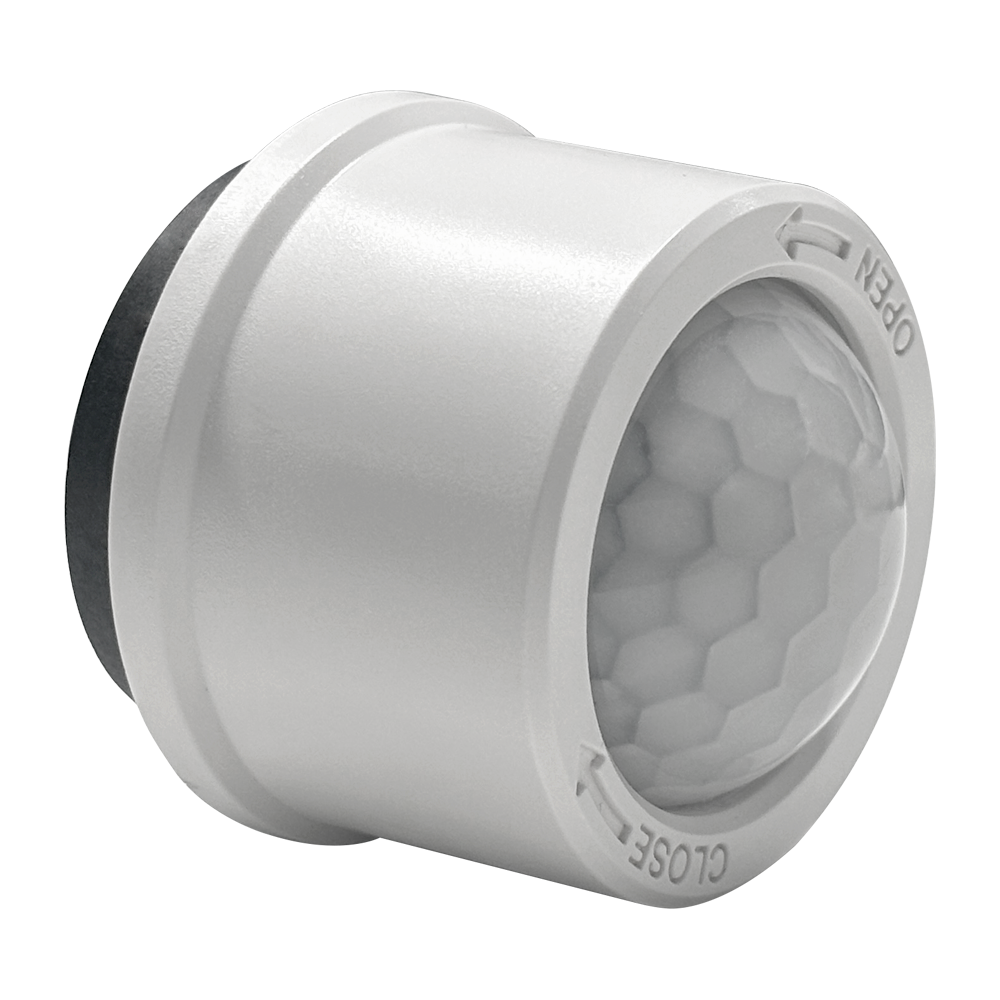

IP65 Z10 Socket Bluetooth to 0-10V PIR Sensor SR-SV9033Z-PIR-V
Key Features
• Bluetooth to 0-10V sensor controller, Bluetooth® mesh network
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• Autonomos sensor-based control
• Support sensitivity adjustment, Mesh Network, a better method to deal with false trigger

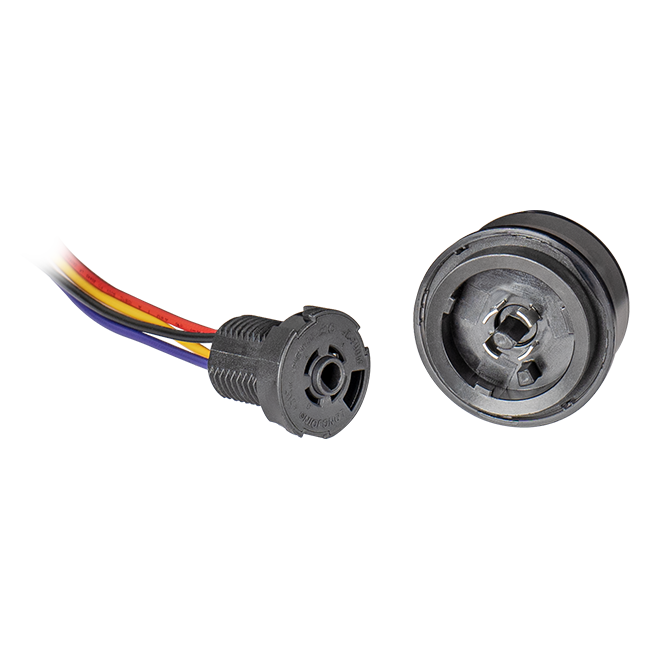

• Z-10 interface socket
• Available with Magnetic reset (touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP65, suitable for outdoor luminaries
• 5 years warranty
Specifications
| Part No. | Power Supply | Input Signal | Output Signal | 0-10V Signal Output | Sensor Type | Detection Range |
|---|---|---|---|---|---|---|
| SR-SV9033Z-PIR-V | 12-24VDC | Silvair Bluetooth | 0-10V | Max. 20mA | PIR Sensor | φ18m@15m |
Product Dimension
Wiring Diagram
