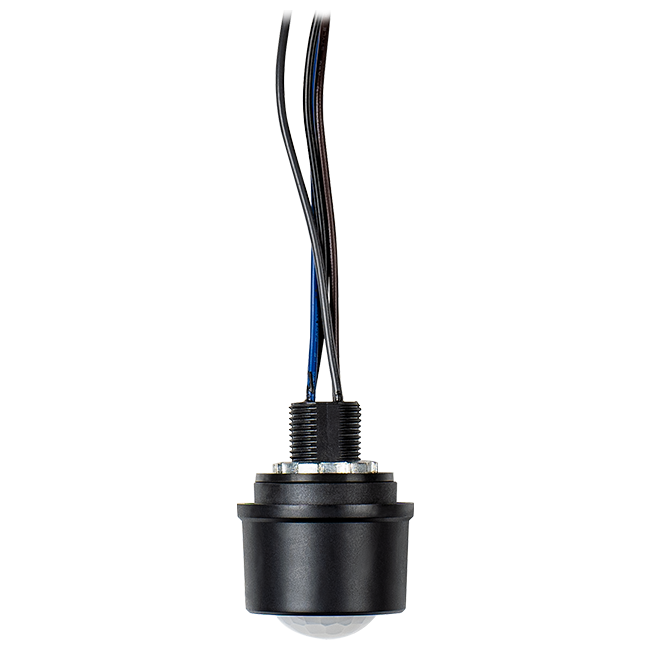

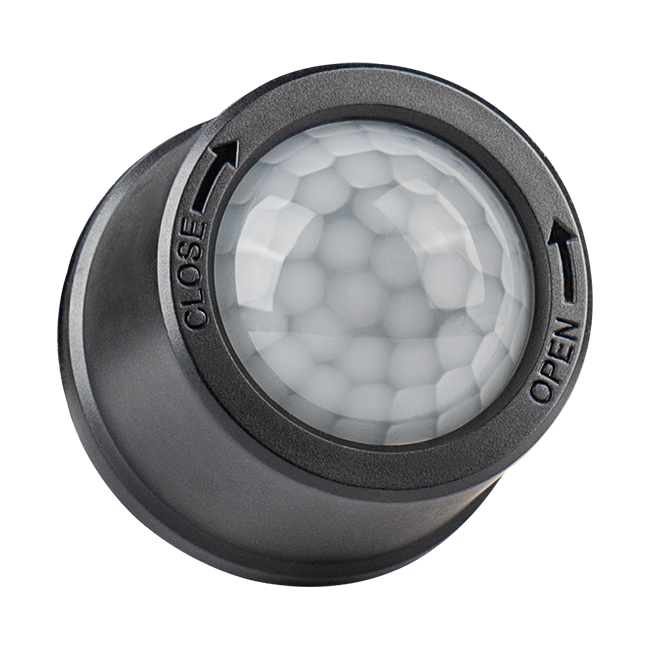

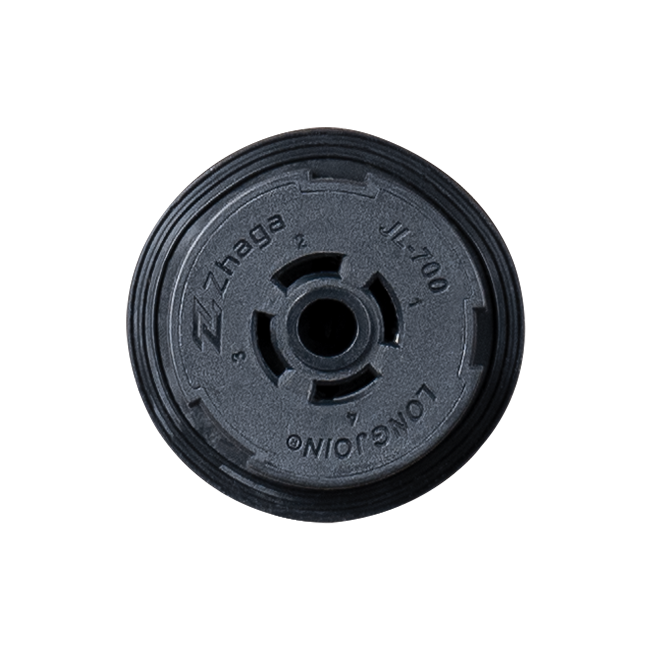

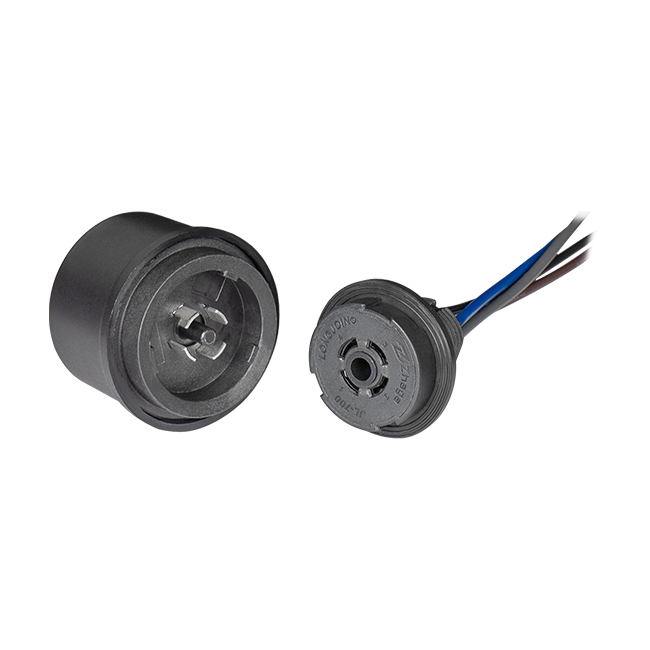

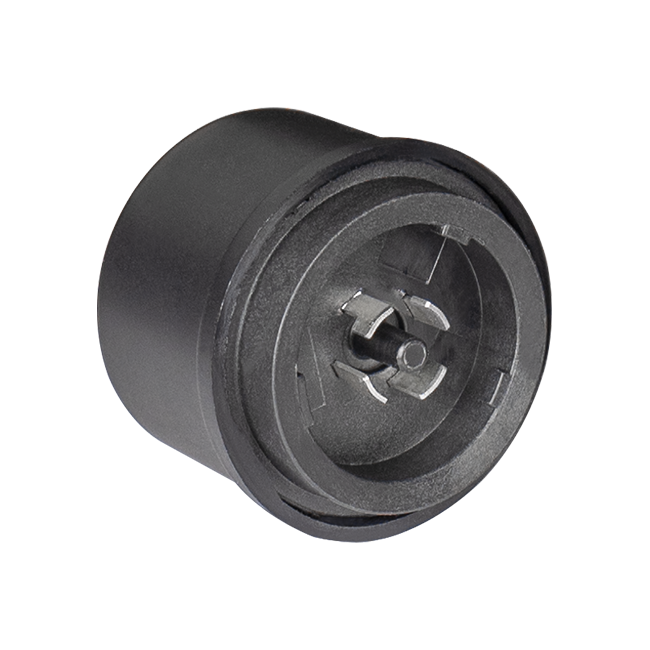

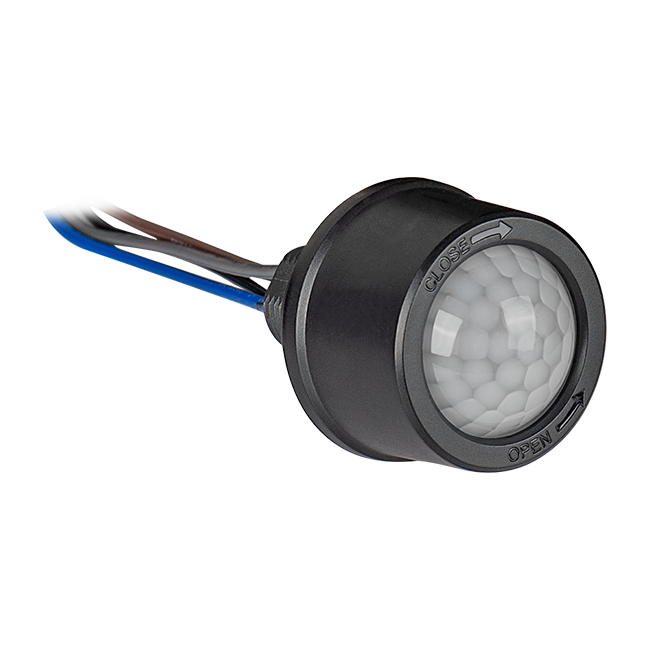

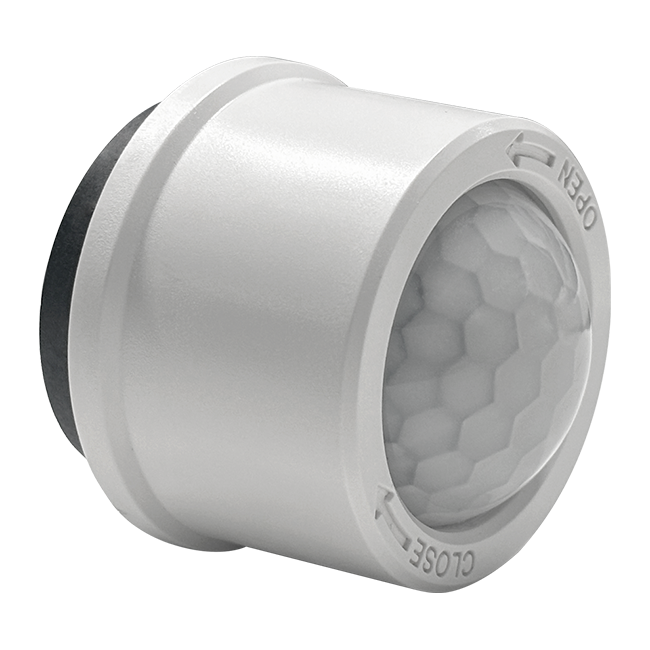

IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 2
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 3
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 4
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 5
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 6
IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V - Image 7

IP65 ZHAGA-BOOK 18 BLE 0-10V Sensor Controller (With Light Sensor) SR-BL9033A-PIR-V

• Bluetooth to 0-10V sensor controller , Bluetooth® mesh network • Mesh network, which has a much longer control distance, transmits received signals to neighboring devices • All devices on 0-10V line are broadcast controlled by mobile application • Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB • Autonomos sensor-based control • ZHAGA Book 18 socket • Available with Magnetic reset (touch the top part of sensor for 5 seconds) • On-board antenna • Waterproof grade: IP65, suitable for outdoor luminaries • 5 years warranty

SKU: SR-BL9033A-PIR-V Category:

Features

• Bluetooth to 0-10V sensor controller , Bluetooth® mesh network
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• Autonomos sensor-based control
• ZHAGA Book 18 socket
• Available with Magnetic reset (touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP65, suitable for outdoor luminaries
• 5 years warranty


Specifications

Part No. Input Voltage Input signal Output, 0/1-10V Mounting Height Detection Angle/Range
SR-BL9033A-PIR-V 12-24VDC
Bluetooth
 Max. 20mA

Up to 14m,

recommended height: 6-12m

 360° (ceiling)/16m(Diameter)







Kullanım Kılavuzu (PDF)
