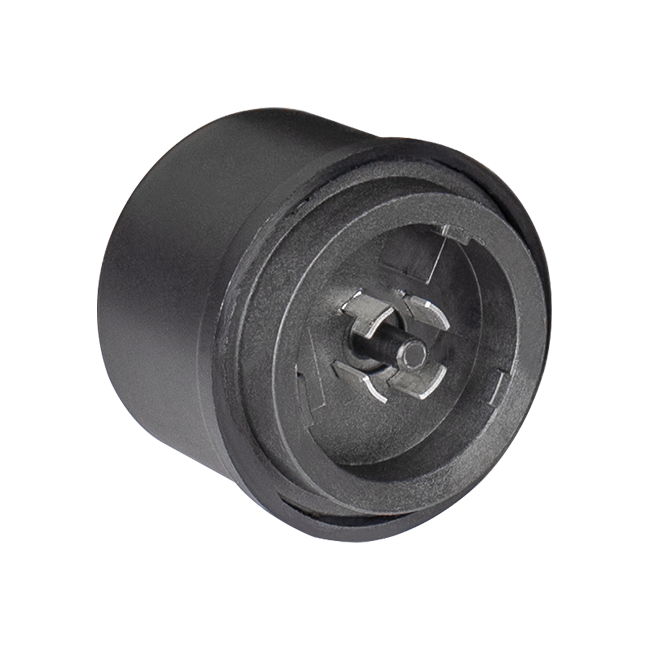

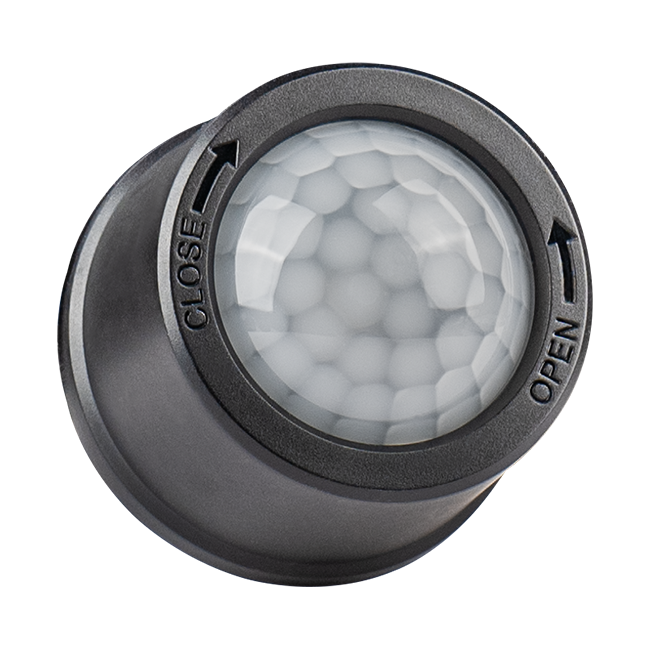

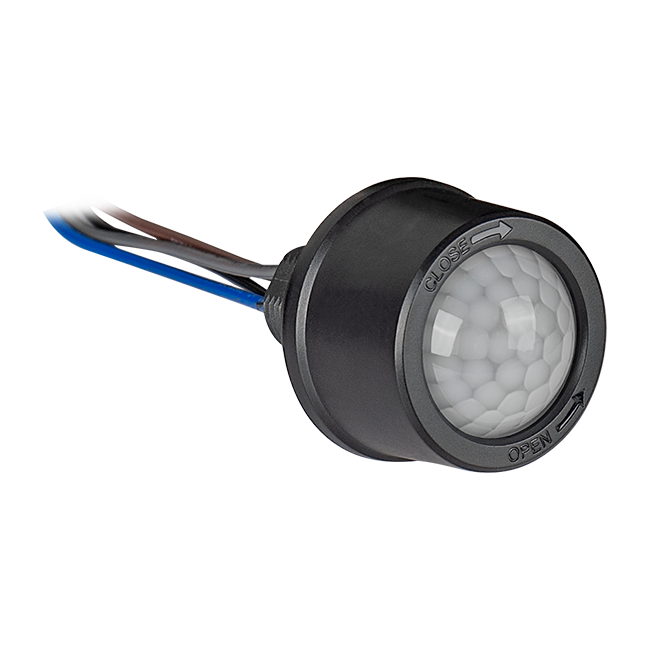

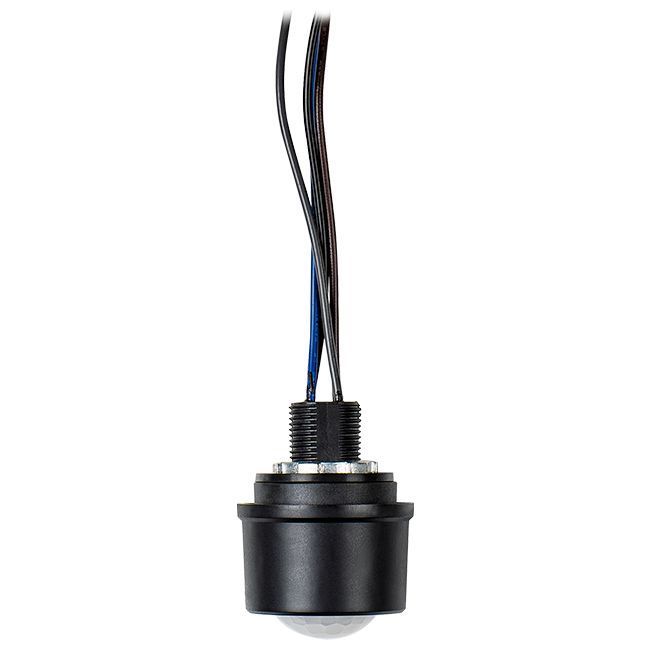

IP65 ZHAGA-BOOK 18 BLE DALI-2 Sensor Controller (With Light Sensor)
Key Features
• Bluetooth to DALI sensor controller
• Bluetooth® NLC Certified
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on DALI line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• Autonomos sensor-based control
• Support sensitivity adjustment, Mesh Network, a better method to deal with false trigger

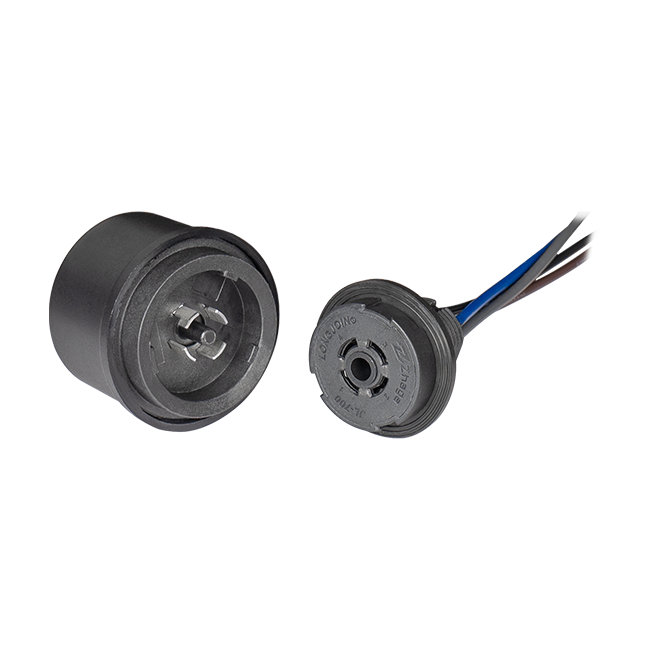

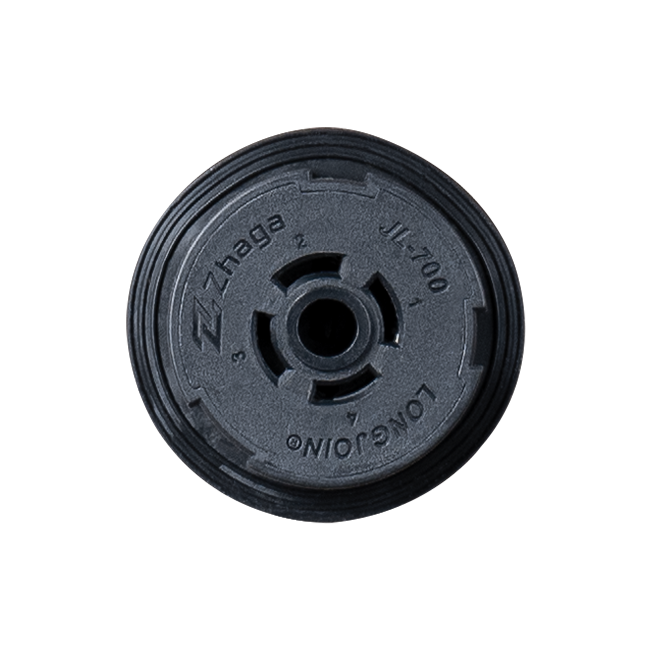

• ZHAGA Book 18 socket
• Available with Magnetic reset (touch “OPEN” on the sensor top for 5 seconds)*
• On-board antenna
• Waterproof grade: IP65, suitable for outdoor luminaries
• 5 years warranty
Specifications
| Part No. | Power Supply | Input Signal | Output Signal | DALI Bus Consumption | Sensor Type | Detection Range |
|---|---|---|---|---|---|---|
| SR-SV9033A-PIR-D-BUS | DALI Bus | Silvair Bluetooth | DALI | Max. 30mA | PIR Sensor | φ18m@17m |
Wiring Diagram
Dimension
