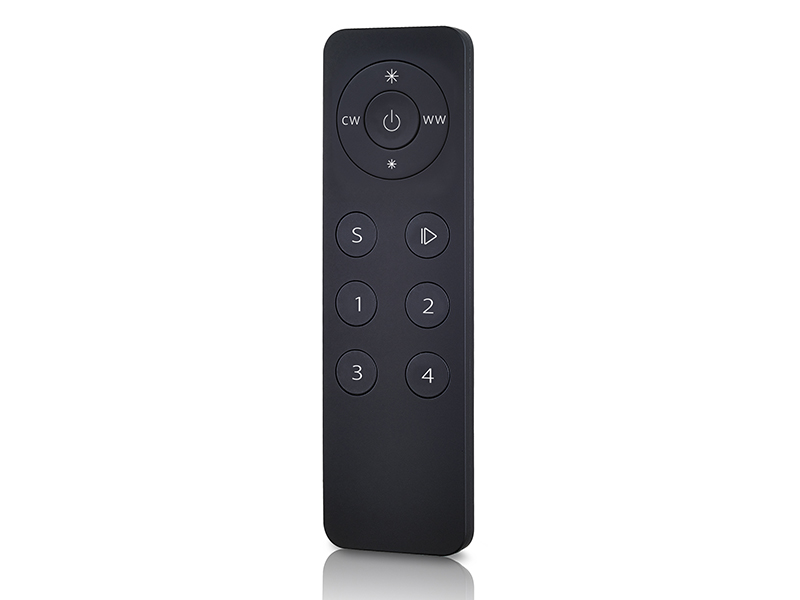

RF LED controller SR-2833CCT is an easy-to-use and user friendly dual color wireless controller which offers fast and accurate color temperature adjustment and independent brightness dimming of each white. Designed with a compact size and simple interface, the remote LED controller can adjust color temperature for warm white and cold white LEDs. Each controller can control 4 different zones separately or synchronously with endless receivers in each zone and kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with dimming range from 0.1% to 100% enables the dimmer controller to achieve millions of colors. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems. This remote is economical and perfect choice for home lighting control.
Key Features
- Compact size with simple and easy-to-use interface
- Accurate and smooth color temperature and brightness adjustment for warm white and cold white
- 256 level brightness adjustment for each white to achieve millions of color temperature
- Smooth dimming without any flickering from 0.1% to 100%
- Control 4 different zones separately or synchronously with endless receivers in each zone
- Save kelvins/scenes for each zone
- Control distance around 20-30 meters
- To work with power repeater to expand output unlimitedly
- Receivers can work with WiFi-RF converter after installing APP on IOS and Android systems
Remote
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) |
|---|---|---|---|
| SR-2833CCT | 3VDC | 434MHz/869.5MHz | 39*136.5*11.5 |
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2833CCT Receiver | 12-24VDC | 2CH, 5A/CH | 60-120W | Constant Voltage | 46*145*16 |
Product Dimension
Receiver Wiring Diagram
