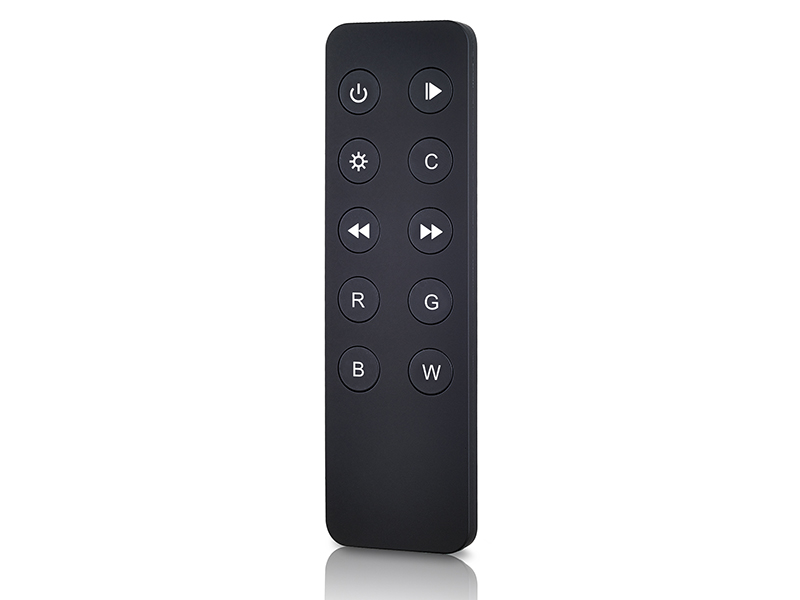

RF RGBW LED Remote Controller SR-2839WK

RF RGBW LED remote controller SR-2839WK is a RGBW wireless controller which offers fast and accurate color tone adjustment and independent brightness dimming of each R, G, B, W channel. Each RGB controller can control 1 zone with endless receivers in each zone.

SKU: SR-2839WK Category:

RF RGBW LED remote controller SR-2839WK is a RGBW wireless controller which offers fast and accurate color tone adjustment and independent brightness dimming of each R, G, B, W channel. Each RGB controller can control 1 zone with endless receivers in each zone. Independent dimming of each R, G, B, W channel enables the RGB LED remote to achieve millions of colors. 10 built-in changing patterns are available with 8 level adjustable changing speed. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Key Features

  • 256 levels of Grey Scale per RGB, even&smooth for full-color changes without any flash
  • Competitive price sender with powerful functions
  • 10 changing modes. Enable to stay at any color under
  • situation of color changing modes
  • R-G-B-W changing colors can be achieved smoothly by buttons
  • Changeable speed can be adjusted (10 levels), quickest speed is 2S, slowest speed is 512S
  • Receiver has synchronization function under changeable modes that can ensure all receivers work synchronously without any confusion
  • Enable to save 4 colors
  • Synchronization function of pattern changes ensure consistent change forever
  • To adjust brightness of each color independently that can achieve millions of changing colors
  • To work with power repeater to expand output unlimitedly



Remote

Part No. Operation Voltage Operation Frequency Dimension (mm) Remarks
SR-2839WK 3VDC 434MHz/868MHz 40*136.5*11.5 RF Wireless











Compatible Receiver

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)

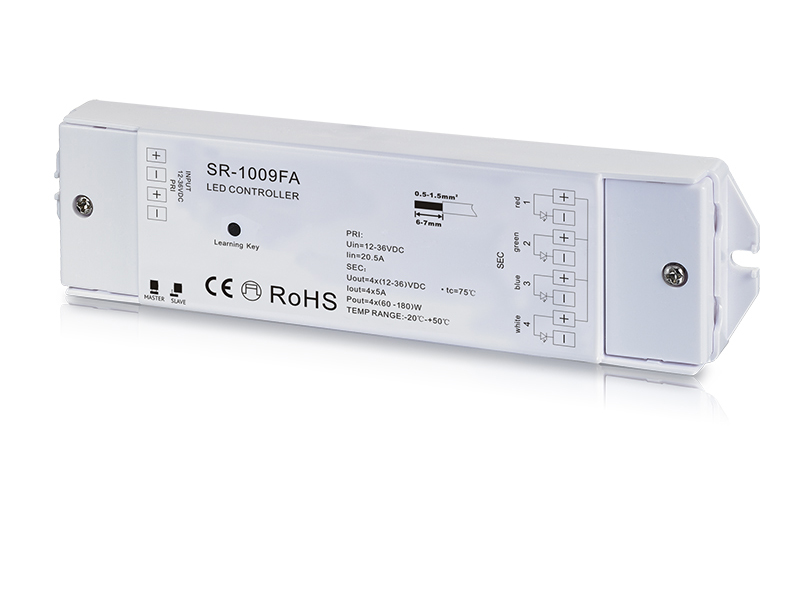

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 46*178*18

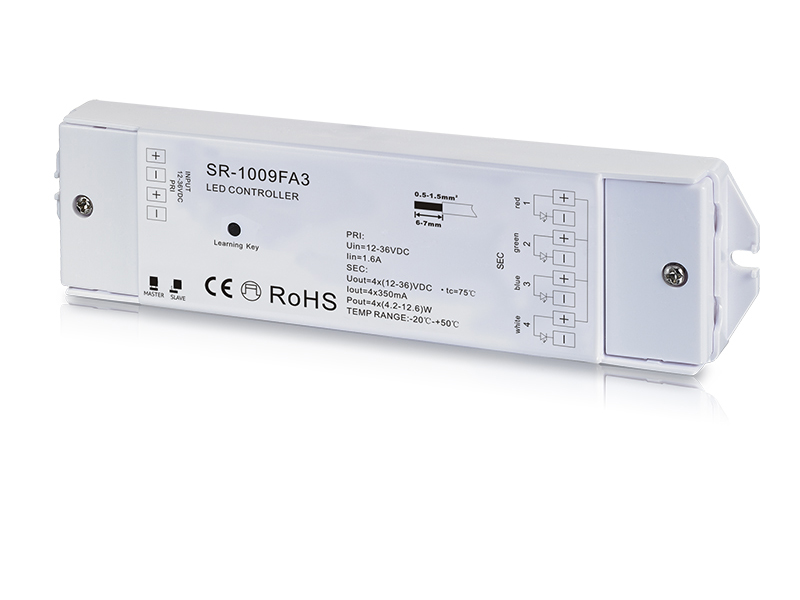

SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Constant Current 46*178*18













Product Dimension

Product Dimension



Receiver Wiring Diagram

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
