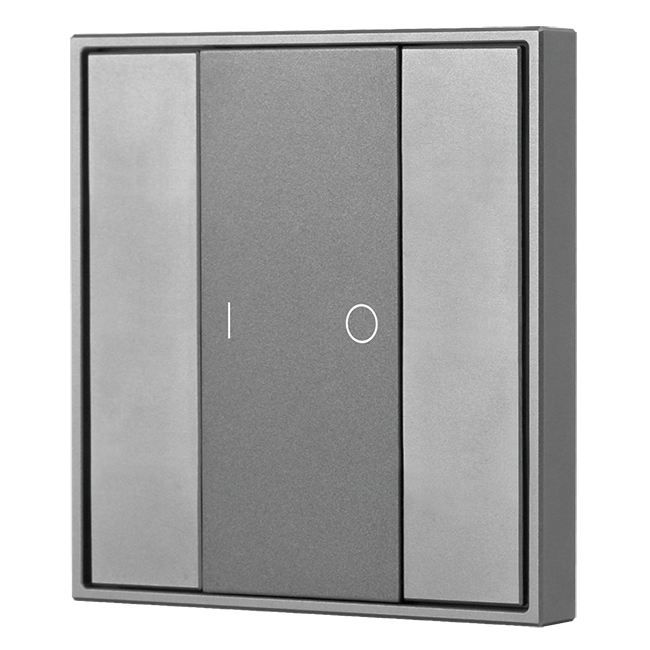

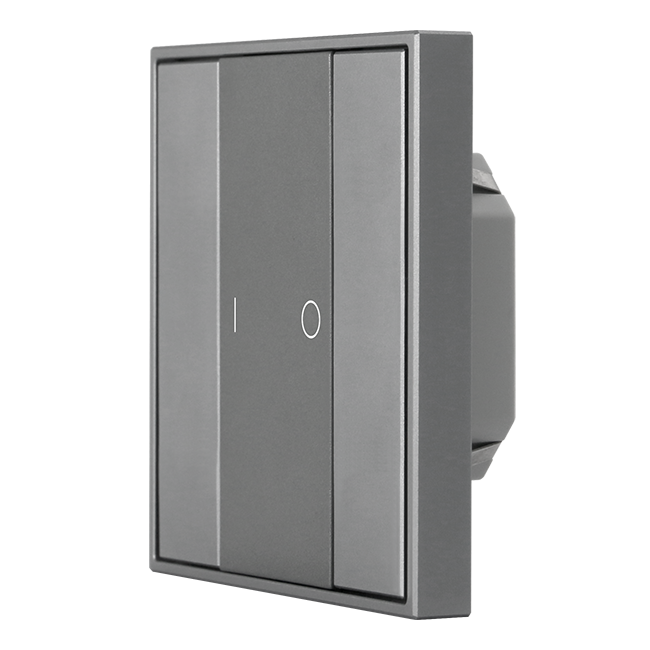

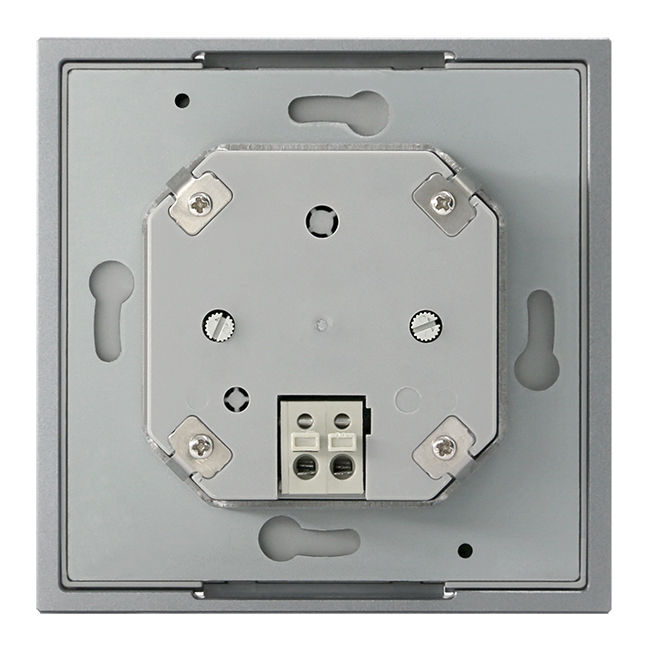

Push button DALI control panel SR-2422NK2-DIM-G1 is a single color DALI controller that controls 1 group address. The group of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the push button through broadcast. The DALI push button enables to switch on/off and increase/decrease light intensity of the group. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size wall box, the push button can be easily installed with metal mounting frame.
Key Features
- DALI DT6 push button controller

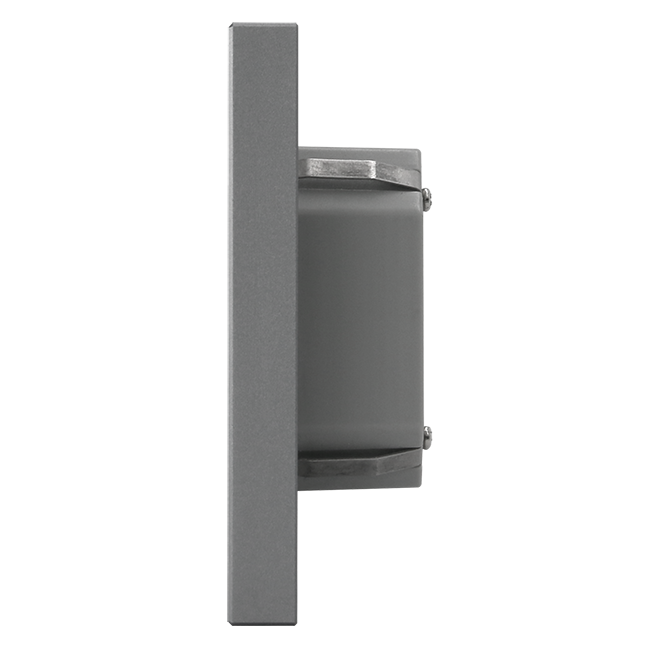

- Ultra slim and luxury design
- Material and finishing color can be customized
- With back lighting design, easy to find even in dark night

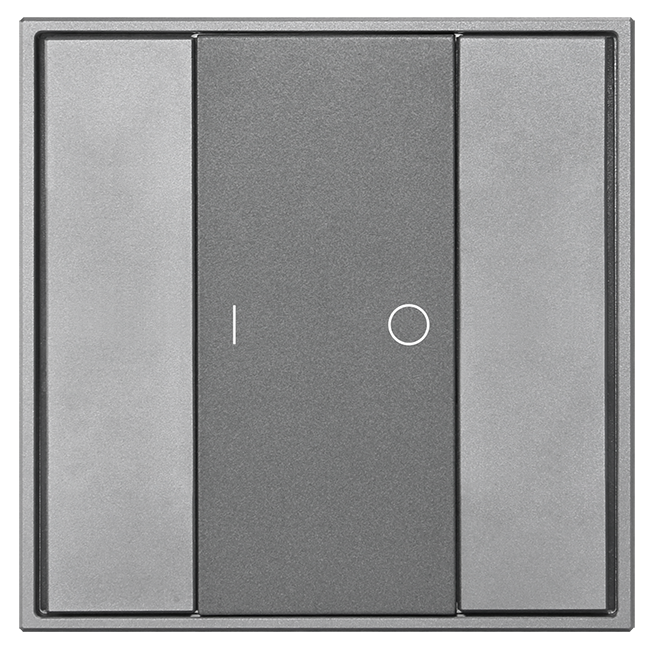

- 2 Button Design with Group Control
- DALI bus powered, no extra power supply required
- Control of All DALI Devices on the circuit through Broadcast
- Enables to select and control 1 DALI group from total 16 DALI groups
- Each channel DALI bus can install multiple controllers
- Easy to Use, No Configuration by Computer Required
- Compatible with All Universal DALI Masters

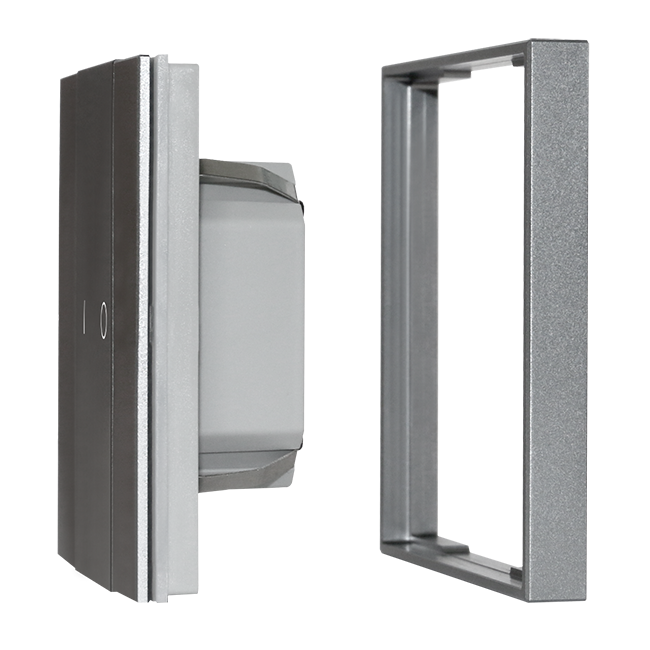

- Easy installation with mounting frame
Specification
| Part No. | Operation Voltage | Current Consumption | Dimension (mm) | Remarks |
|---|---|---|---|---|
| SR-2422NK2-DIM-G1 | Provided by DALI Bus | 30mA | 80x80x26.6 | DT6 |
Wiring Diagram
