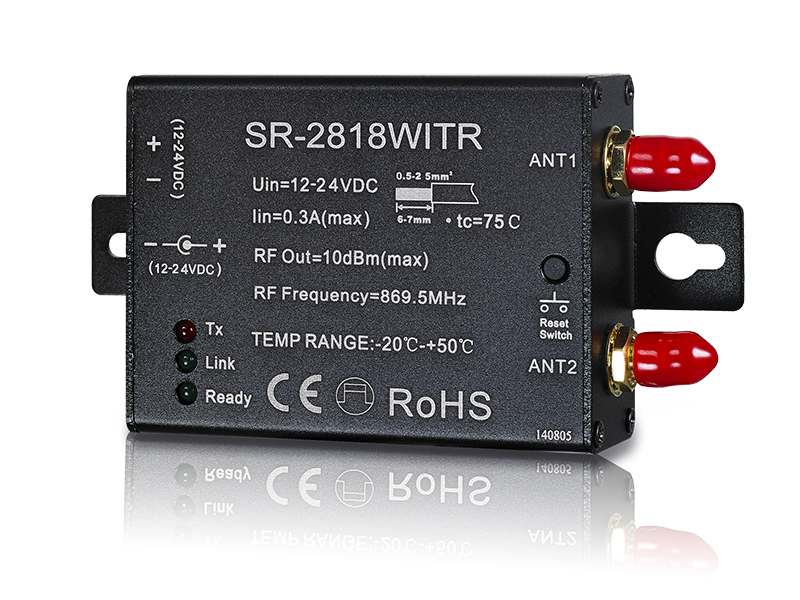

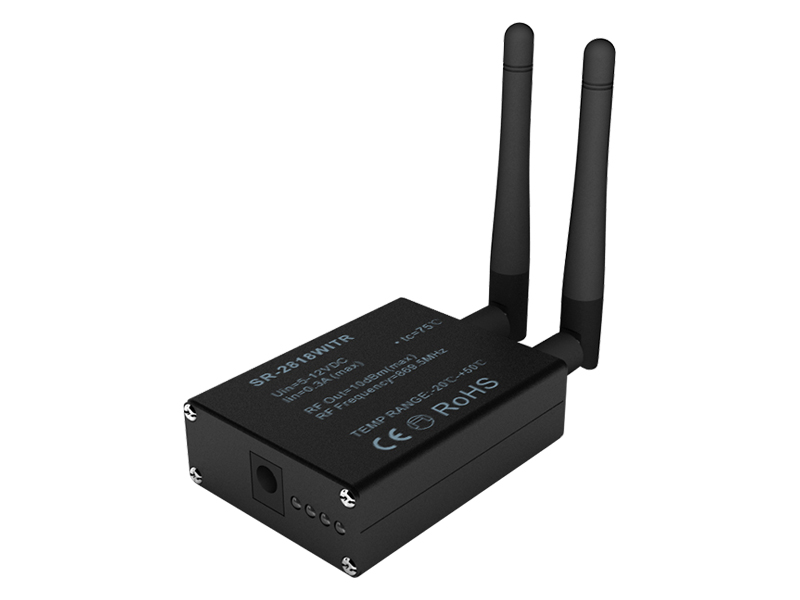

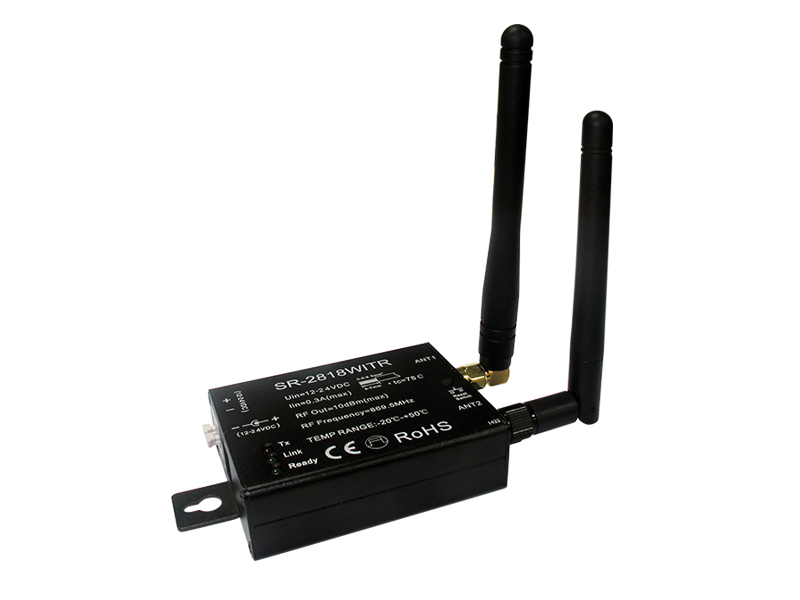

The WiFi-RF converter SR-2818WiTR is designed to convert WiFi signal to RF signal and compatible with SR-1009 series receivers, which enables the RF receivers to be WiFi controlled by APP installed on IOS and Android mobile devices. It is a wifi home automation solution for lighting control that receives WiFi signal from the mobile devices and then convert it to RF signal and send to the RF receivers. The wifi home automation solution greatly facilitates users to simplify the control, they do not have to find the remote controls everywhere, just a mobile phone is enough. The WiFi-RF converter can be compatible with SR-1009 series receivers to control single color, dual color and RGBW LED lighting. Free APP is available from APP store or Sunricher website.
Key Features
- Converts WiFi signal to RF
- Compatible with SR-1009 series receivers
- More convenient and flexible control
- Single or multiple receivers can be controlled by each control system
- Free APP available from APP store or Sunricher website
- Humanized APP interface, easy operation
SR-2818WiTR Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|---|---|---|
| SR-2818WiTR | 12-24VDC | RF signal | 55*99*20 |
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|---|---|---|---|---|
| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
Wiring Diagram
