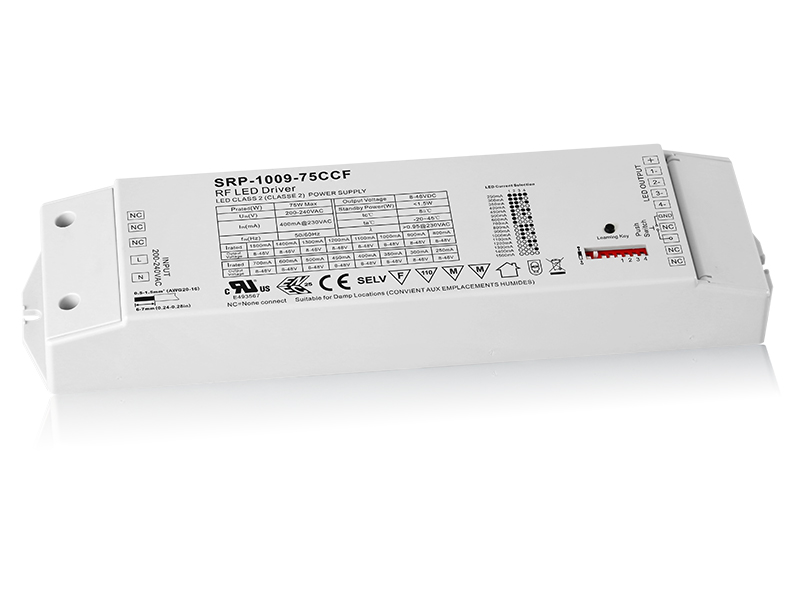

The SRP-1009-75CCF is an ENEC approved 75W constant current RF LED dimmable driver with 200-240VAC input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. Compatible with a variety of perfect RF series remote controllers, the RF LED driver is able to control single color, tunable white, RGB/RGBW LED lighting. Push dim function is available while the RF dimmable driver connected with a push switch. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. ENEC certification ensures high safety performance of the driver to be used in Europe.
Başlıca Özellikler
- 75W RF LED dimmable driver
- ENEC certification
- RF alıcı, 869.5MHz/916.5MHz/434MHz frekans
- 200-240VAC input
- Sabit akım çıkışı, 4 kanallı PWM çıkışı
- Output current adjustable from 250mA to 1500mA by DIP switch on the driver
- Current accuracy < ±5%
- Dahili aktif PFC fonksiyonu
- Power factor > 0.90, efficiency > 85%
- Smooth and deep dimming to 0.1%, flicker free
- Çeşitli RF uzaktan kumandalarla uyumludur.
- Basit bir basmalı anahtara bağlandığında, basmalı karartma işlevi kullanılabilir.
- To control single color, tunable white, RGB/RGBW LED lighting
- Over current protection, over heat protection, short circuit protection
Teknik Özellikler
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Giriş Akımı | Çıkış Akımı | Çıktı türü | Boyut (mm) |
|---|---|---|---|---|---|
| SRP-1009-75CCF | 200-240VAC | 0.9A Max. | 250mA-1500mA | Sabit Akım | 64*244*32 |
Kablolama Şeması
