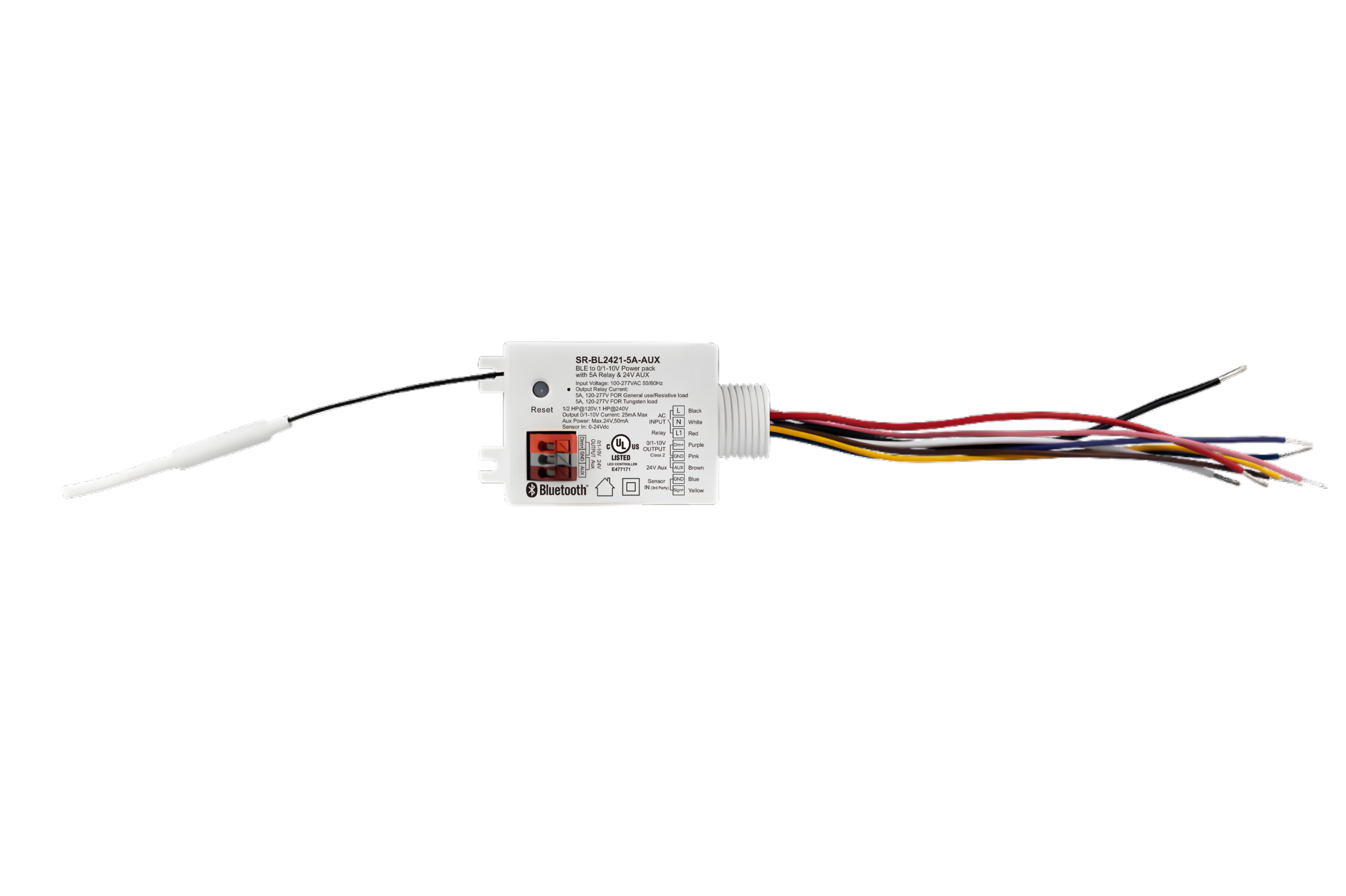

This Bluetooth to 0-10V signal converter enables seamless integration into Bluetooth® mesh networks, providing reliable dimming control with a built-in 25mA 0-10V output and a 5A relay. It supports third-party sensors via its sensor input for logic-based control of power packs or 0-10V loads. Utilizing mesh networking, it ensures extended range by transmitting signals across neighboring devices. All devices on the 0-10V line are broadcast-controlled using Silvair Commissioning tools. Compatible with Sunricher kinetic energy switches and EnOcean EWSSB/EWSDB switches, this converter features an IPEX antenna, IP20 protection, UL listing under category PAZX, and UL 2043 Plenum Rating, backed by a 5-year warranty.
Başlıca Özellikler
• Bluetooth'tan 0-10V sinyal dönüştürücü, Bluetooth® mesh ağı
• Built-in 25mA 0-10V signal output, with 5A relay
• Built-in Sensor input, allow to using 3rd party sensor in logic signal to control the power pack/0-10V Load.
• Çok daha uzun kontrol mesafesine sahip olan ağ yapısı, alınan sinyalleri komşu cihazlara iletir.
• All devices on 0-10V line are broadcast controlled by Silvair Commissioning tools
• Supporting Sunricher kinetic energy switches and EnOcean switches EWSSB and EWSDB
• UL listed, Category: PAZX (Management Equipment, Energy). UL 2043 Plenum Rated
• IPEX antenna
• Su geçirmezlik derecesi: IP20
• 5 yıl garanti
Özellikler
| Giriş Gerilimi | Giriş Sinyali | Çıkış Sinyali | Çıkış, 0/1-10V Akım |
Output Relay |
Output Relay Akım |
Output Aux Power | Boyutlar (UxGxY) |
|---|---|---|---|---|---|---|---|
| 100-277VAC | Silvair Bluetooth | 0-10V | Maks. 25mA | 100-277VAC | Maks. 20A | 24V | 82.5*55*31 mm |
Kablolama Şeması
Ürün Boyutları
