Başlıca Özellikler
- Bluetooth to DALI signal converter,Bluetooth® mesh network
- Built-in DALI bus power supply,no additional DALI bus PS is required
- Max.80mA DALI bus power current output, can control up to 40 DALI control gears
- All devices on DALI line are broadcast controlled by Silvair Commissioning tools
- Mesh network, which has a much longer control distance, transmits received signals to neighbor devices
- All device on DALI line are broadcast controlled by mobile application
- Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
- In typical indoor environment, the typical range for wireless communication about 25meters . Actual range is dependent on field installation
- Class 2 rated，UL listed
- On-board antenna
- Su geçirmezlik derecesi: IP20
- 5 Years Warranty
Teknik Özellikler
| Parça No. | Giriş Gerilimi |
DALI PS
current output
|
DALI current
consumption
|
Signal
|
Boyut (mm) |
|---|---|---|---|---|---|
|
SR-SV2421-DDI
|
200-240VAC
|
Max. 80mA
|
Max. 4mA
|
SIG Mesh
|
95x37x20
|

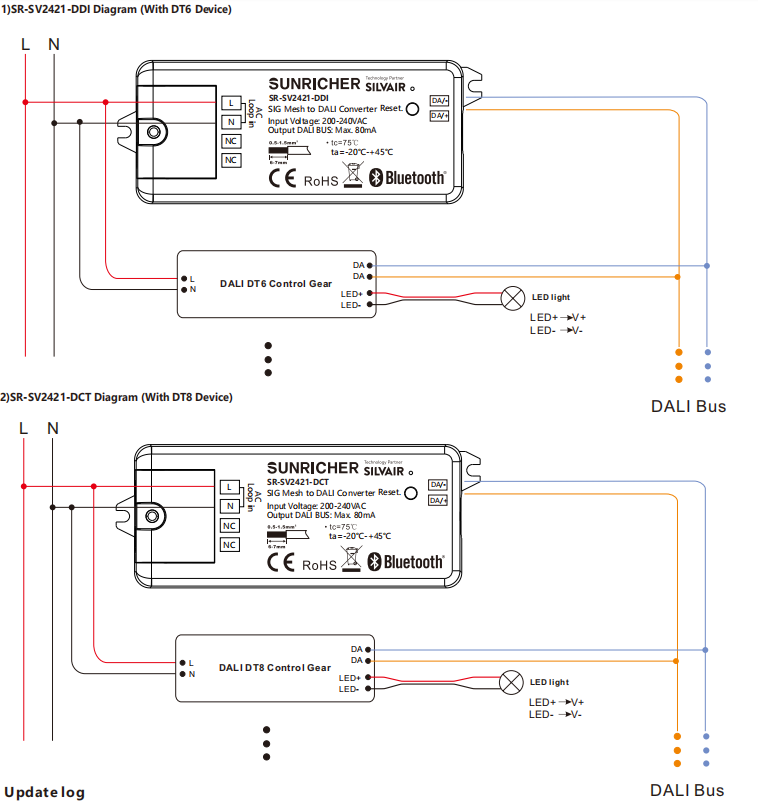

Kablolama Şeması
