Başlıca Özellikler

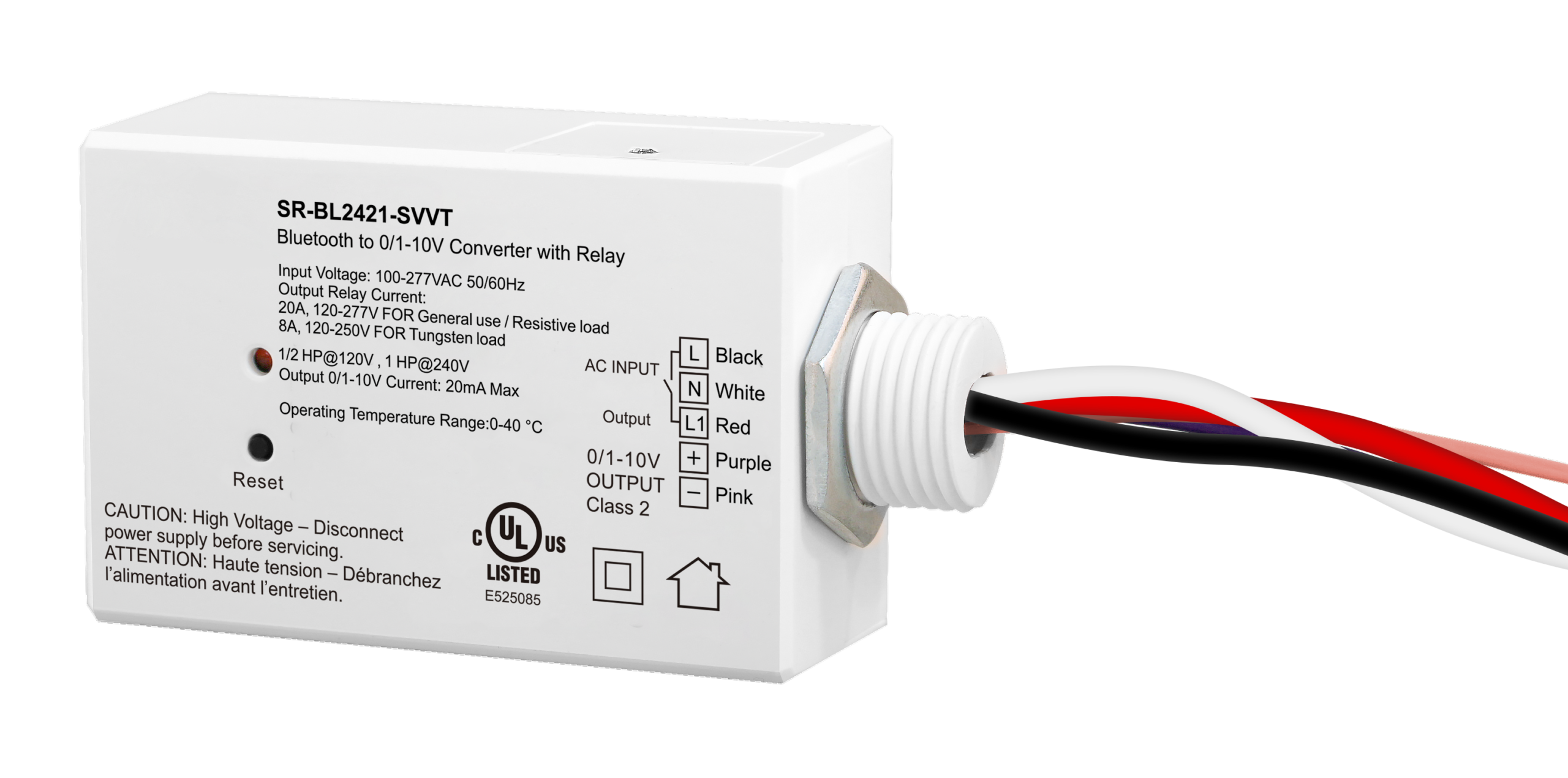

- Bluetooth to 0-10V signal converter, Bluetooth® mesh network
- Built-in 20mA 0-10V signal output, with 20A relay
- Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
- All devices on 0-10V line are broadcast controlled by Silvair Commissioning tools
- Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
- In typical indoor environment, the typical range for wireless communication about 65meters. Actual range is dependent on field installation
- Class 2 rated, UL listed
- IPEX antenna
- Su geçirmezlik derecesi: IP20
- 5 Years Warranty
Teknik Özellikler
| Parça No. | Giriş Gerilimi | Giriş Sinyali | Çıkış Sinyali | Output 0/1-10V Current | Output Relay | Output Relay Current | Boyutlar (UxGxY) |
|---|---|---|---|---|---|---|---|
| SR-BL2421-SVVT |
100-277V AC
|
Silvair Bluetooth
|
0-10V
|
Maks. 20mA
|
100-277VAC | Maks. 20A |
82.5*55*31 mm
|
Kablolama Şeması
Ürün Boyutları
