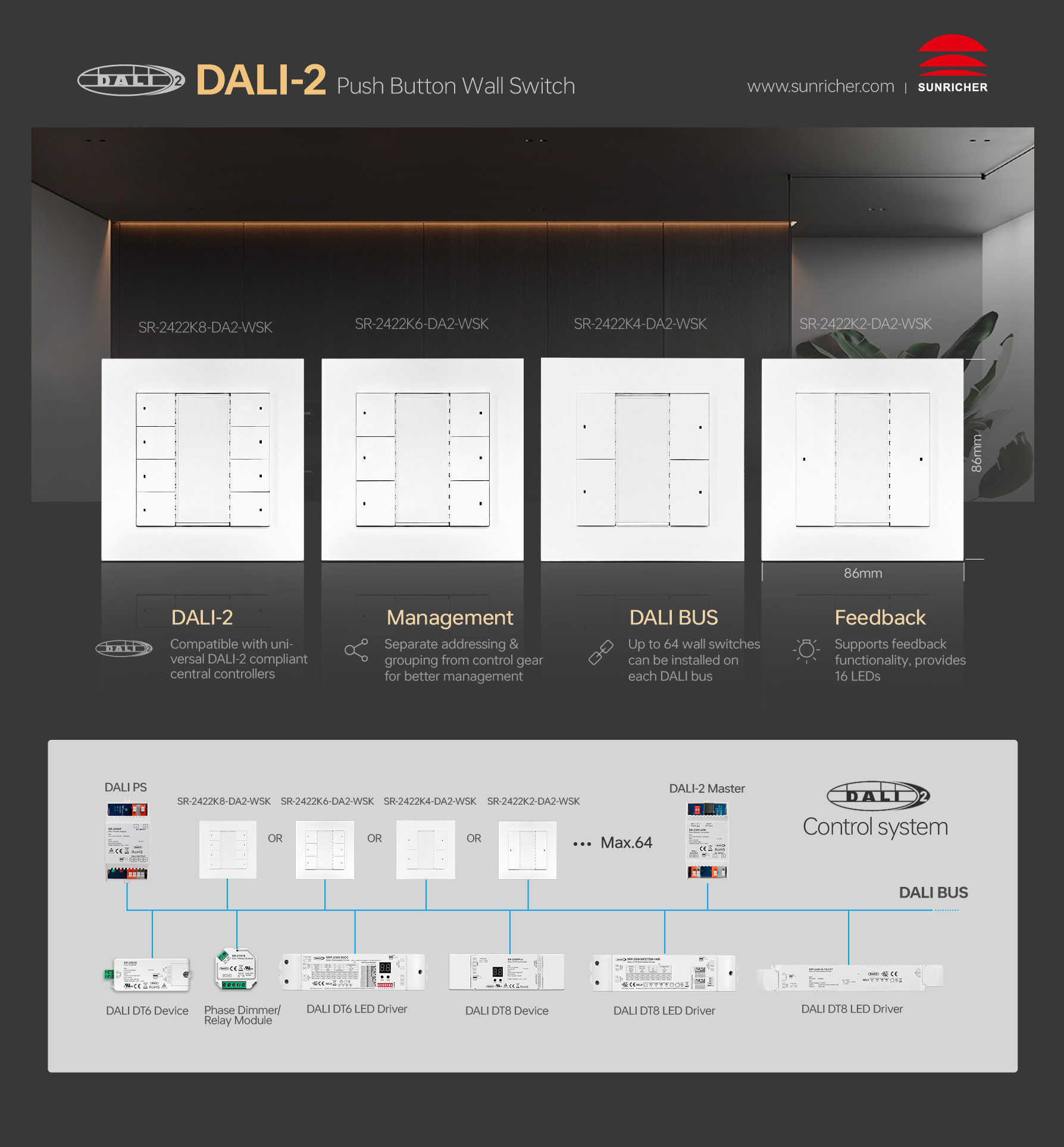

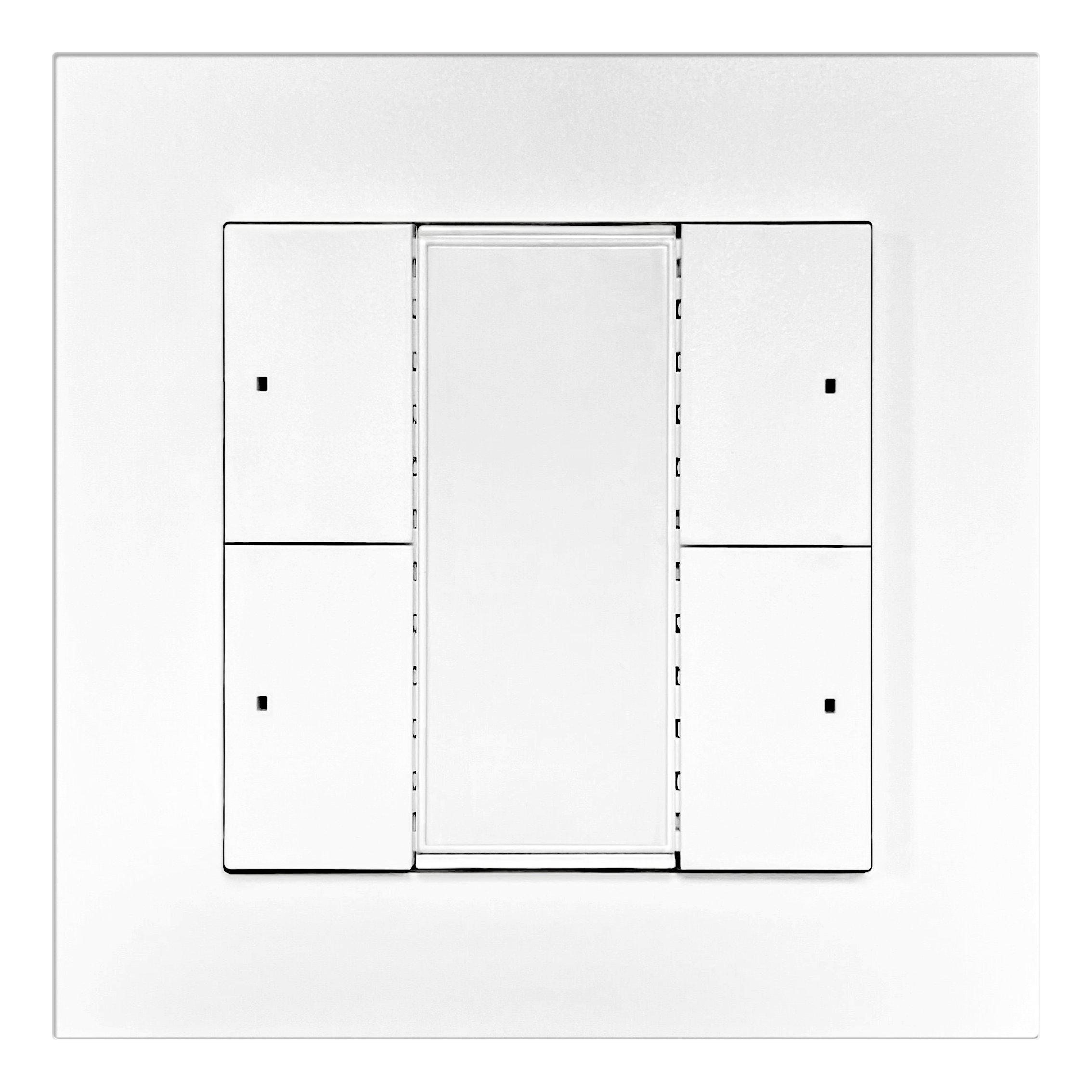

The wall switch SR-2422K4-DA2-WSK is industry first DALI-2 certified DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 8 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI-2 push button is designed with standard 55mm frame, and can be compatible with universal 55mm frames.
Başlıca Özellikler
- DALI-2 Certfied Input Device
- DALI-2 control device with 4 push buttons
- According to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 8 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI veri yoluyla çalışır, ek güç kaynağına gerek yoktur.
- Easy configuration via DALI-2 compliant central controller USB interface
- Easy installation, compatible with universal 55mm frames
Özellikler
| Parça No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | No. of Feedback LED | Boyut (mm) |
|---|---|---|---|---|---|
| SR-2422K4-DA2-WSK | 2mA | 10mA | 4 programmable push buttons | 8 programmable LEDs | 86mm x 86mm x 13.3mm |
Fonksiyon Tanıtımı
