The DALI Switch can be used as input device for the integration in DALI-2 compliant central lighting control systems. In this mode each input (“instance”) informs about changes by using so called “input notifications”. These event-messages can be evaluated by other controllers on the DALI-line e.g. as trigger for commands sent to luminaires.
Başlıca Özellikler
- DALI-2 control device according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-302
- Provides 2 instances, instance 0 is push button instance, instance 1 is rotary movement instance
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI veri yoluyla çalışır, ek güç kaynağına gerek yoktur.
- Easy configuration via DALI-2 compliant central controller USB interface
- Compatible with universal 55mm frames
Özellikler
| Parça No. | Çalışma Gerilimi | Mevcut Tüketim | Boyut (mm) | Notlar |
|---|---|---|---|---|

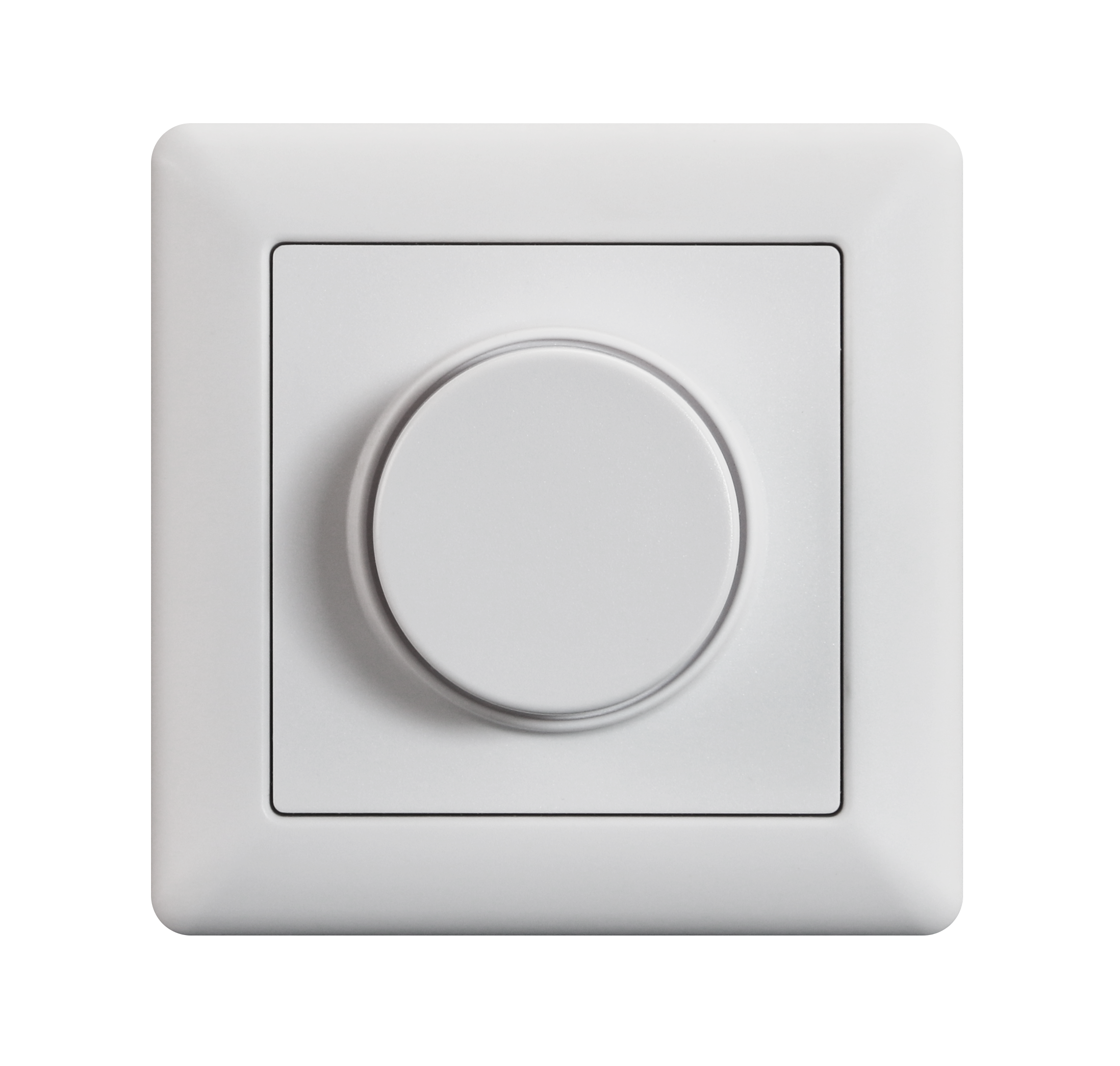

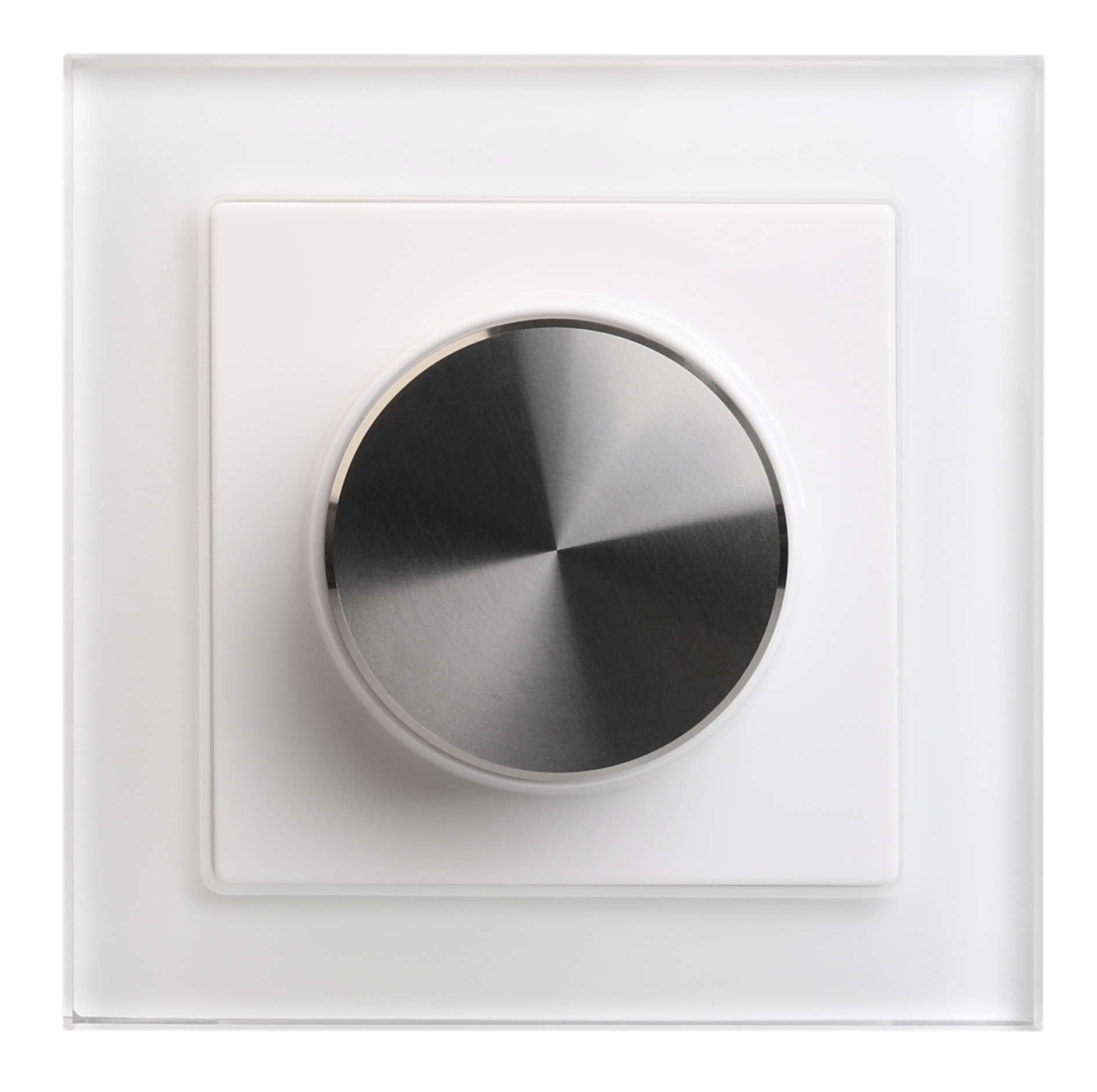

| SR-2410R-DA2 | Provided by DALI Bus | 2mA | 80*80*17.5 | Plastic Frame |
Ürün Boyutları
Kablolama Şeması
