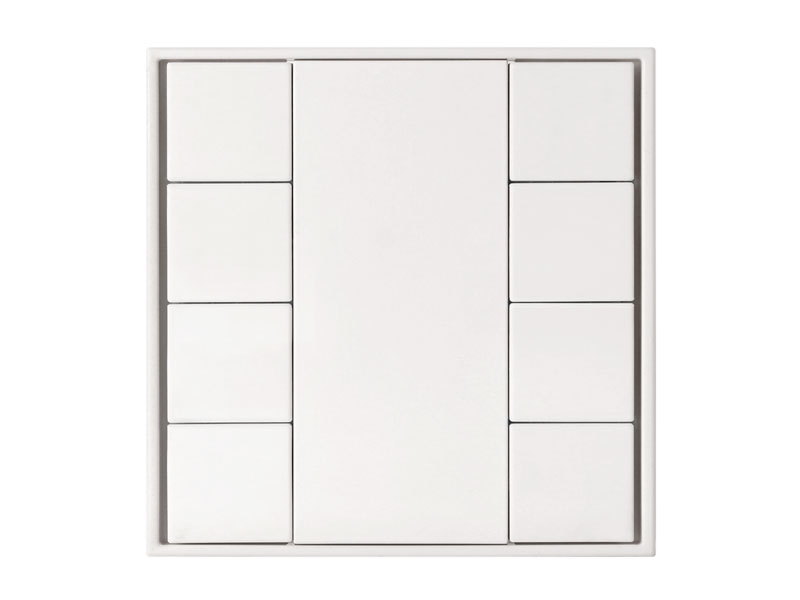

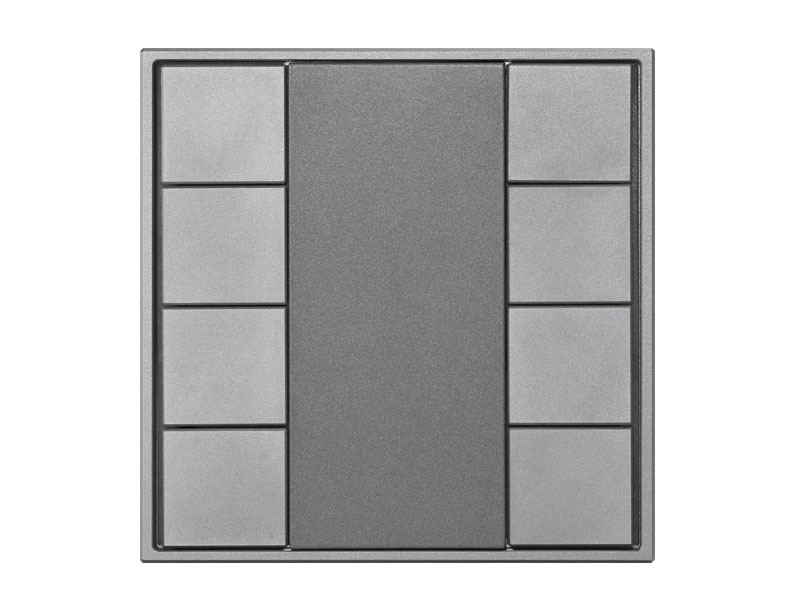

The keypad SR-2422NK8-DA2 is a DALI-2 certified DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. It is designed with sleek and low profile appearance. The input device supports feedback functionality and provides 16 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI-2 push button is available with different colors and materials for different application environments.
Başlıca Özellikler
- DALI-2 Certfied Input Device
- Designed with sleek and low profile appearance
- DALI-2 control device with 8 push buttons
- According to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 16 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI veri yoluyla çalışır, ek güç kaynağına gerek yoktur.
- Easy configuration via DALI-2 compliant central controller USB interface
- Available with different colors and materials for different application environments
Özellikler
| Parça No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | No. of Feedback LED | Boyut (mm) |
|---|---|---|---|---|---|
| SR-2422NK8-DA2 | 2mA | 10mA | 8 programmable push buttons | 16 programmable LEDs | 80*80*26.6 |
Kablolama Şeması
