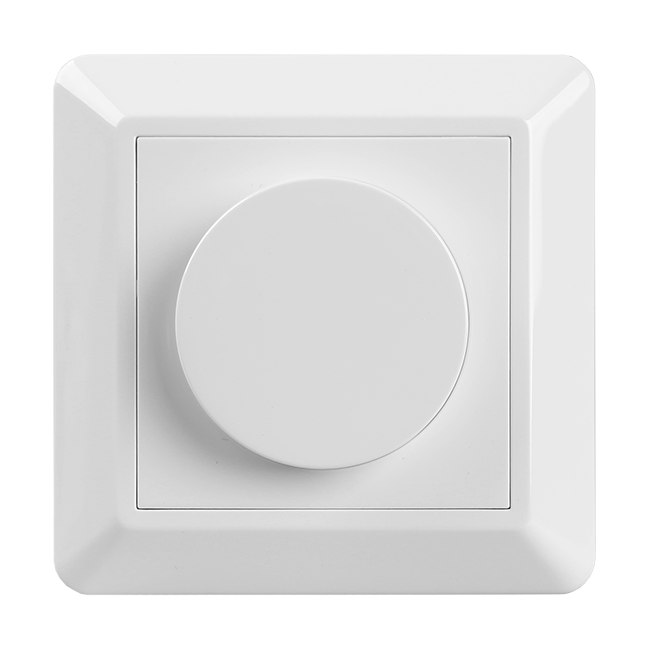

DALI-2 rotary control device with push and rotary instances for dimming, CCT, RGBW control. Supports event messaging, multiple modes, and easy DALI-2 system integration. Bus powered, no extra supply needed.
Başlıca Özellikler
• DALI-2 control device according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-302
• Provides 2 instances, instance 0 is push button instance, instance 1 is rotary movement instance
• DALI rotary switch for dimming, color and color temperature control
• Individual DALI Commands and operating modes can be assigned to the push and rotary button
• Multiple operating modes can be set by the DALI-2 controller using command SET OPERATING MODE (DTR0)
• Instance mode for sending DALI-2 rotating position event messages – integration in standard DALI-2 control systems
• Instance mode for sending rotating speed event messages – integration in specific control systems
• DIM mode, directly send DALI commands to DALI bus
• CCT mode, directly send DALI commands to DALI bus
• RGBW mode, directly send DALI commands to DALI bus
• Multi-master capable, multiple modules can be installed on one DALI line
• Factory default setting is DALI-2 instance mode for sending DALI-2 rotating position event messages
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
Teknik Özellikler
| Input Type | Input Voltage Range | Typ. Current Consumption DALI (at 16.5V) | Max. Current Consumption DALI (Inrush Current at 22.5V) |
Number of Addresses for DALI Control Devices | Dimension (L x W x H) |
|---|---|---|---|---|---|
| DALI | 12VDC – 22.5VDC | 2mA | 12mA | 1 | 83.8 x 83.8 x 47.1 mm |
Ürün Boyutları
