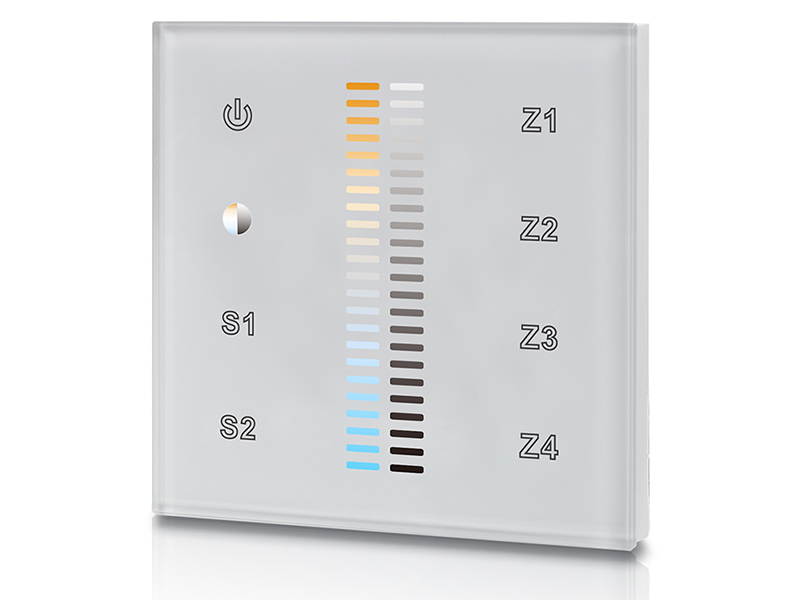

RF cct LED controller SR-2830B is a full touch controller which offers fast and accurate color temperature adjustment and independent brightness dimming of each white. Designed with touch color line in the middle, the cct controller can adjust color temperature and brightness for natural white, warm white and cold white LEDs. Each controller can control 4 different zones separately or synchronously with endless receivers in each zone and 2 different kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with 256 level brightness adjustment enables the LED controller to achieve millions of colors. Humanized memory function enables the controller remember the last Kelvin after turn off or cut off. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Başlıca Özellikler
- Ultra sensitive high strength glass touch panel with touch color line in the middle and backlighting
- Ideal for dual color LED lights warm white and cold white
- Her bölgede sınırsız sayıda alıcı kullanarak 4 farklı bölgeyi ayrı ayrı veya eş zamanlı olarak kontrol edin.
- Save 2 kelvins/scenes for each zone
- Enable to connect with warm white and cold white to achieve accurate adjustment of color temperature and brightness
- 256 level brightness adjustment for each white to achieve millions of color temperature
- 0,1% ile 100% arasında titreşimsiz, sorunsuz karartma.
- Humanized memory function to remember last Kelvin after turn off or cut off
- Çıkışı sınırsız bir şekilde genişletmek için güç tekrarlayıcı ile birlikte çalışmak.
- Remote control over 20 meters
- Alıcılar, iOS ve Android sistemlerine uygulama yüklendikten sonra WiFi-RF dönüştürücü ile çalışabilir.
- Both DC and AC input versions are available
- Italian/Australian, American size optional
Uzak
| Parça No. | Çalışma Gerilimi | Çalışma Frekansı | Boyut (mm) | Notlar |
|---|---|---|---|---|
| SR-2830B | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | RF Kablosuz |

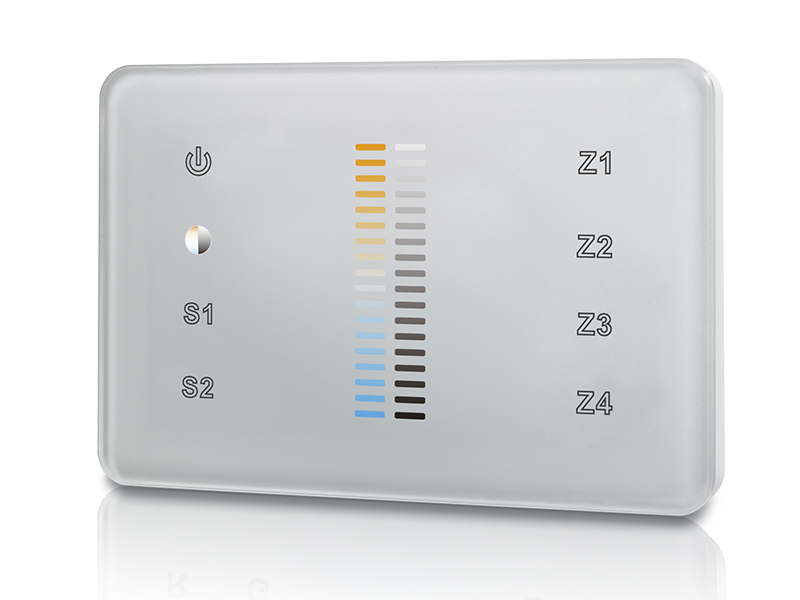

| SR-2830B(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | RF Kablosuz |

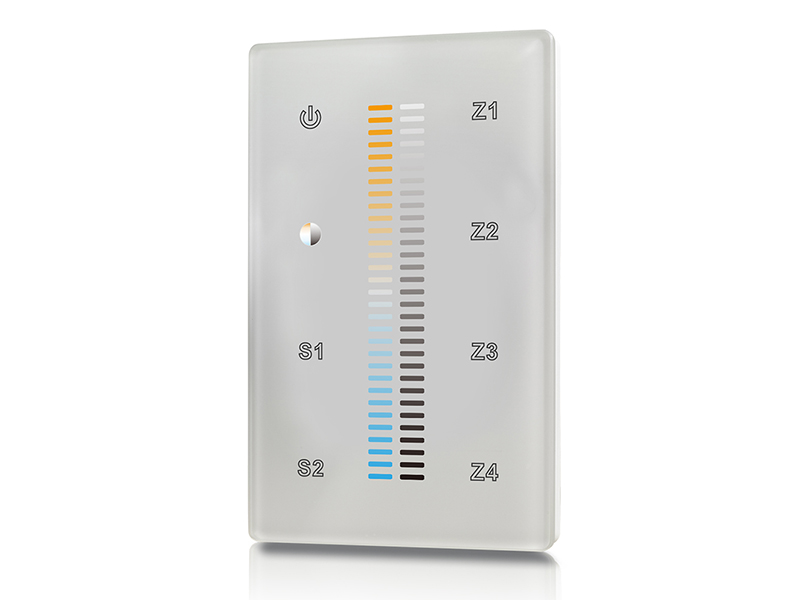

| SR-2830B(US) | 12-24VDC/100-240VAC | 916,5 MHz | 75*120*41 | RF Kablosuz |
Uyumlu Alıcı
| Parça No. | Giriş Gerilimi | Çıkış Akımı | Çıkış Gücü | Çıktı türü | Boyut (mm) |
|---|---|---|---|---|---|

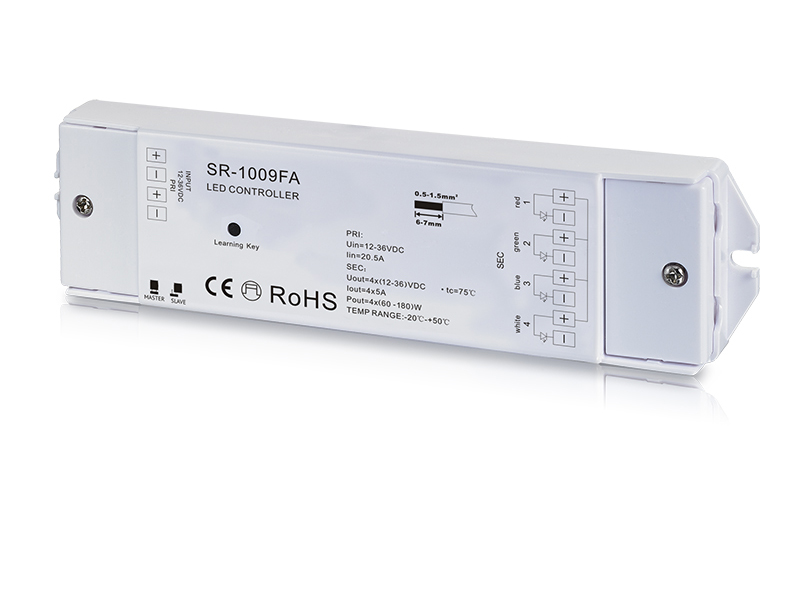

| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Sabit Gerilim | 46*178*18 |
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Sabit Akım | 46*178*18 |
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33,6-100,8 W | Sabit Akım | 46*178*18 |
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Sabit Akım | 58*168*28 |
Installation Diagram for SR-2830B

Installation Diagram for SR-2830B(US)

Installation Diagram for SR-2830B(IT)

Receiver Wiring Diagram for Single Unit
