Push Button RF RGB/RGBW LED Controller SR-2833RGB

SR-2833RGB is a RF wireless push remote controller which is designed control RGB or RGBW LEDs with both switch and brightness adjustment function. It is a single zone RGB or RGBW controller with 1 built-in dynamic changing pattern and 10 static colors.

Stok kodu: SR-2833RGB Kategoriler:

SR-2833RGB is a RF wireless push remote controller which is designed control RGB or RGBW LEDs with both switch and brightness adjustment function. It is a single zone RGB or RGBW controller with 1 built-in dynamic changing pattern and 10 static colors. Color changing speed is adjustable when played. Smooth and accurate color tone adjustment can be achieved by buttons. The push remote can be wall mounted or stuck on wall easily by 3M glue.

Başlıca Özellikler

  • RF wireless push remote
  • Single zone remote control with 1 built-in changing pattern and 10 static colors
  • Switch on/off and brigtness adjustment of RGB/RGBW
  • Smooth and accurate color tone adjustment by buttons
  • Easy installation



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar
SR-2833RGB 3VDC CR2430 Battery 434MHz/869.5MHz 86*86*13.8 RF Kablosuz







Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

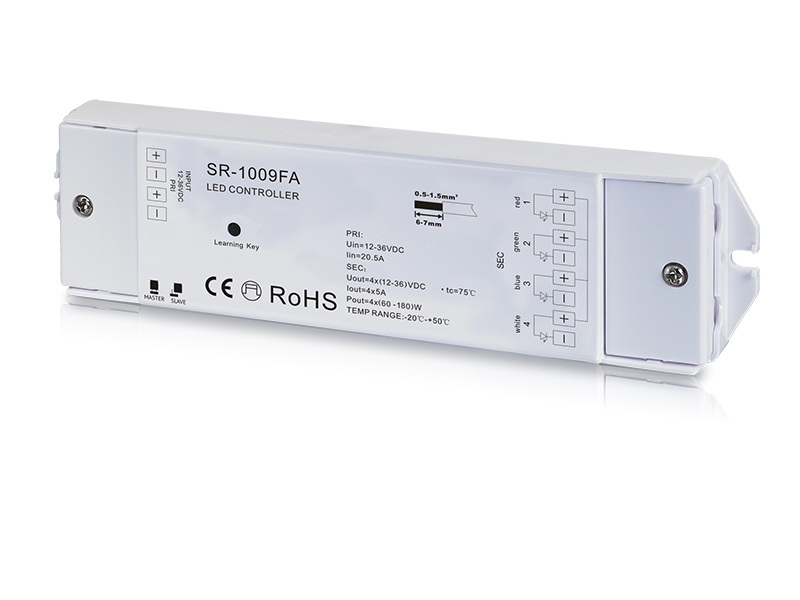

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18

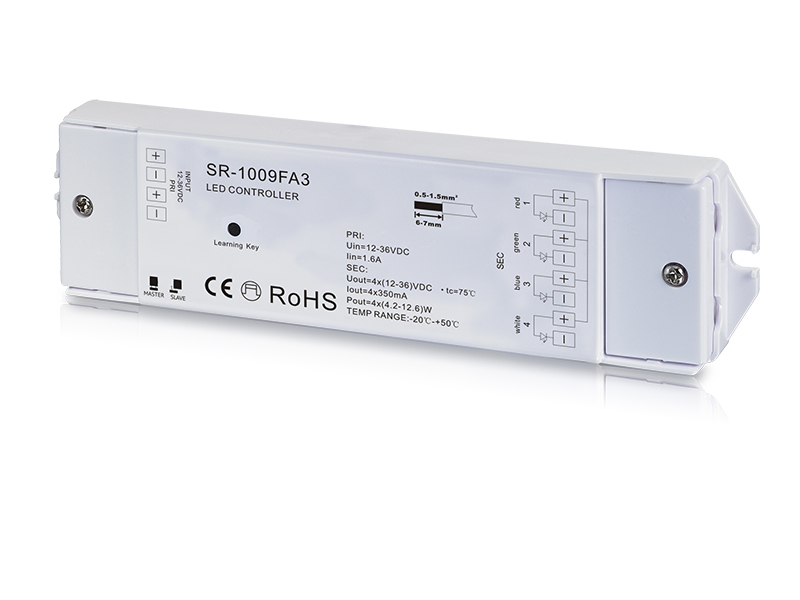

SR-1009FA3 12-36VDC 4CH, 0.35/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Gerilim 58*168*28











Kurulum

Installation



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
