RF RGB Controller SR-2836RGB

RGB LED controller SR-2836RGB is a LED rotary dimmer switch which offers switch, brightness dimming and color tone adjustment functions as well. The rotary LED dimmer features accurate and smooth color tone adjustment with the rotary knob.

Stok kodu: SR-2836RGB Kategoriler:

RGB LED controller SR-2836RGB is a LED rotary dimmer switch which offers switch, brightness dimming and color tone adjustment functions as well. The rotary LED dimmer features accurate and smooth color tone adjustment with the rotary knob. Smooth brightness adjustment from 0.1%-100% without flickering can protect human eyes. The rotary controller can control 1 zone with endless receivers. Accurate and smooth RGB color tone adjustment can be achieved by rotating the knob. The controller can be WiFi compatible while the receiver is working with a WiFi-RF converter and can be controlled by APP installed on IOS and Android systems. European, Italian/Australian and US wall mounted sizes are available.

Başlıca Özellikler

  • Reliable & stable switch and dimming control function, control range ≥20M.
  • Battery in the remote is with long life span. It normally can use for 5 years.
  • Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
  • Dimming range 0.1-100%.
  • Enable switch from color dimming to adjust RGB colors.
  • Receivers can work with power repeater to expand the output power unlimitedly.
  • Enable to control 1 zones separately, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes.
  • Rotary adjustment, wall panel
  • Italian/Australian, US wall size available for wall mounted
  • Receivers can work with RF-WIFI converter after installing software on IOS and Android system.



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar

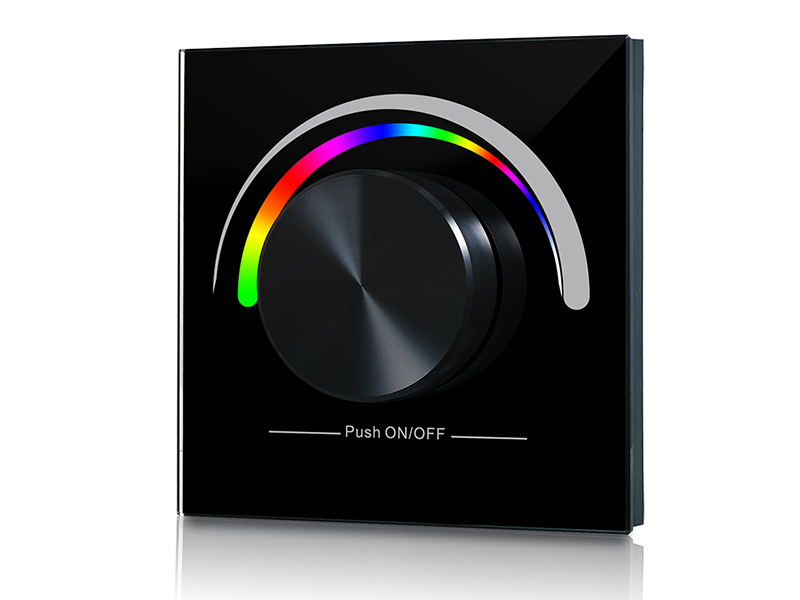

SR-2836RGB 3VDC 434MHz/869.5MHz 86*86*41 RF Kablosuz

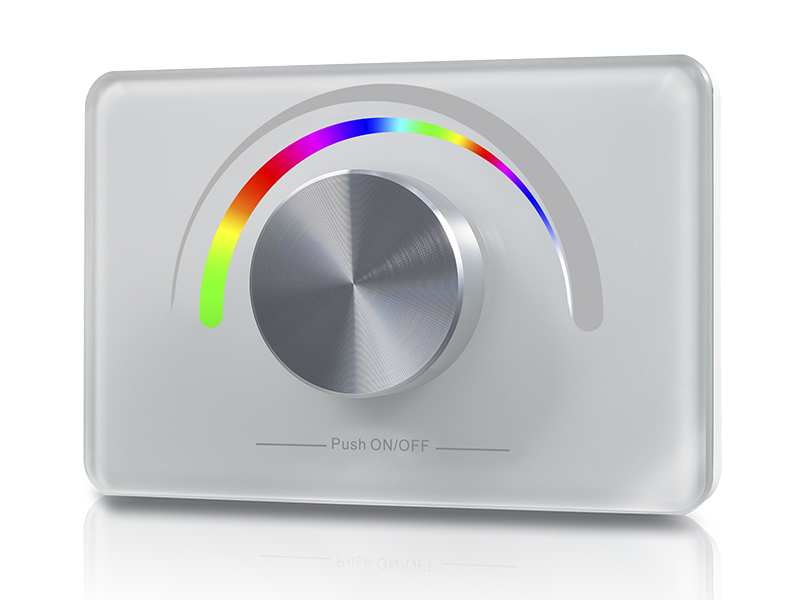

SR-2836RGB(IT) 3VDC 434MHz/869.5MHz 120*80*41 RF Kablosuz

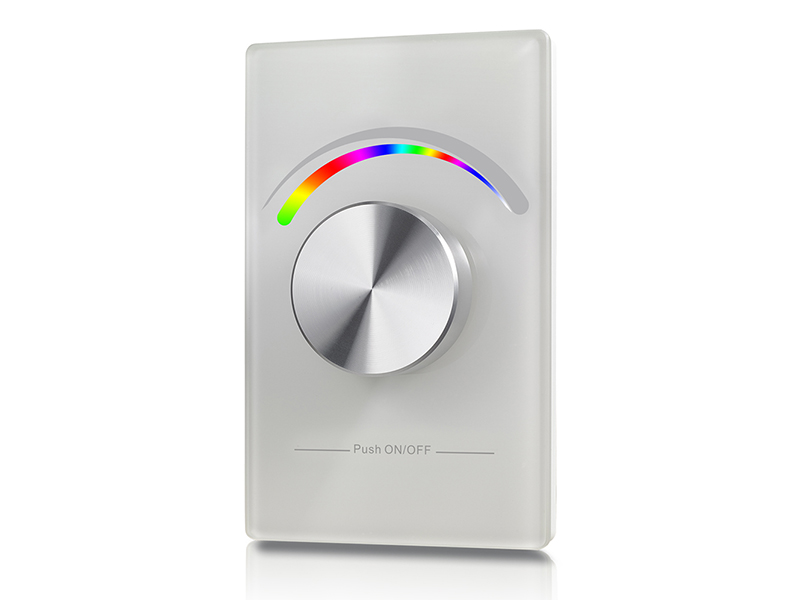

SR-2836RGB(US) 3VDC 916,5 MHz 75*120*41 RF Kablosuz











Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

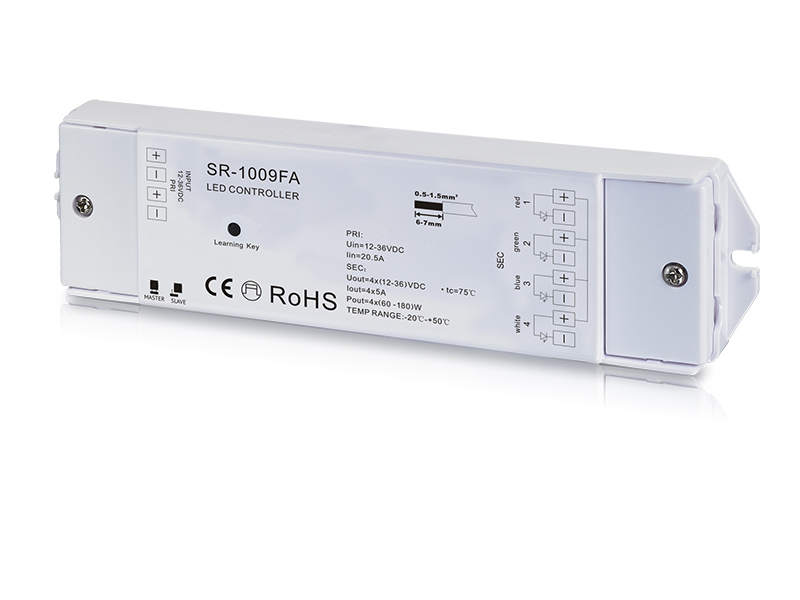

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Akım 58*168*20













Kurulum Şeması

Installation



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
