RF RGBW Wall Mounted LED Touch Controller SR-2820

SR-2820 is a RGB touch controller which adopts ultra sensitive full touch glass touch panel with touch color wheel to offer accurate and fast color tone adjustment. The touch panel controller is designed with sleek appearance and user-friendly interface for easy operation.

Stok kodu: SR-2820 Kategoriler:

SR-2820 is a RGB touch controller which adopts ultra sensitive full touch glass touch panel with touch color wheel to offer accurate and fast color tone adjustment. The touch panel controller is designed with sleek appearance and user-friendly interface for easy operation. Each controller can control up to 4 zones synchronously or independently with endless receivers in each zone. Built-in 10 dynamic changing patterns are available with pause function when played. Each zone can save 4 scenes if you do not like the built-in ones. Independent dimming function of each R, G, B, W channel enables the RGB controller to create millions of colors.

Başlıca Özellikler

  • Kullanıcı dostu arayüz, kolay ve basit kullanım.
  • İşlem dönüş fonksiyonu
  • Control up to 4 zones, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes
  • Set 4 scenes at each zone
  • 10 farklı mod önceden ayarlanmış, duraklatma fonksiyonlu.
  • Desen değişikliklerinin senkronizasyon işlevi, sürekli ve tutarlı bir değişim sağlar.
  • Alıcılar, iOS ve Android sistemlerine yazılım yüklendikten sonra RF-WIFI dönüştürücü ile çalışabilir.
  • Milyonlarca rengi karıştırmak için her bir Kırmızı, Yeşil, Mavi, Beyaz kanalının parlaklığını kısma özelliğini etkinleştirin.
  • Desen değişikliklerinin senkronizasyon işlevi, sürekli ve tutarlı bir değişim sağlar.
  • To adjust brightness of each color independently that can achieve millions of changing colors
  • DC and AC input versions are both available
  • Italian/Australian, US in-wall size available as well



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar

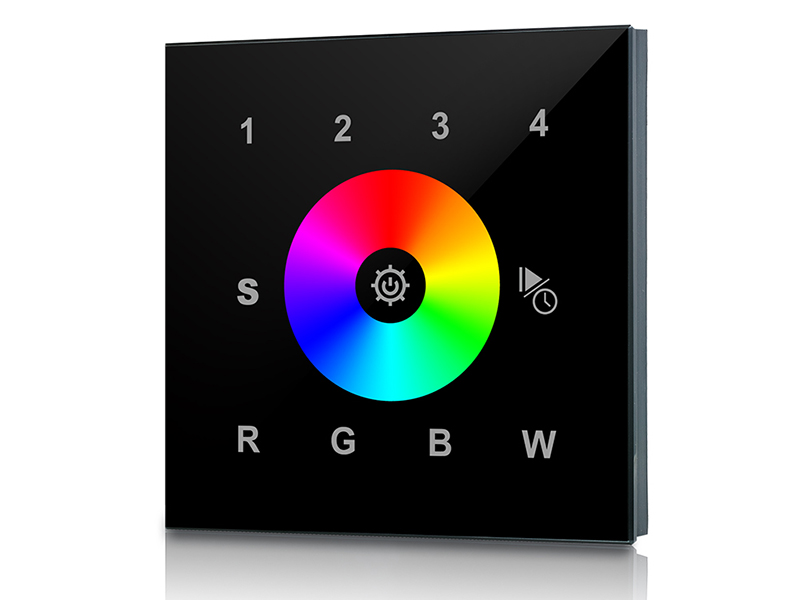

SR-2820 12-24VDC/100-240VAC 434MHz/869.5MHz 86*86*41 Touch Sensor

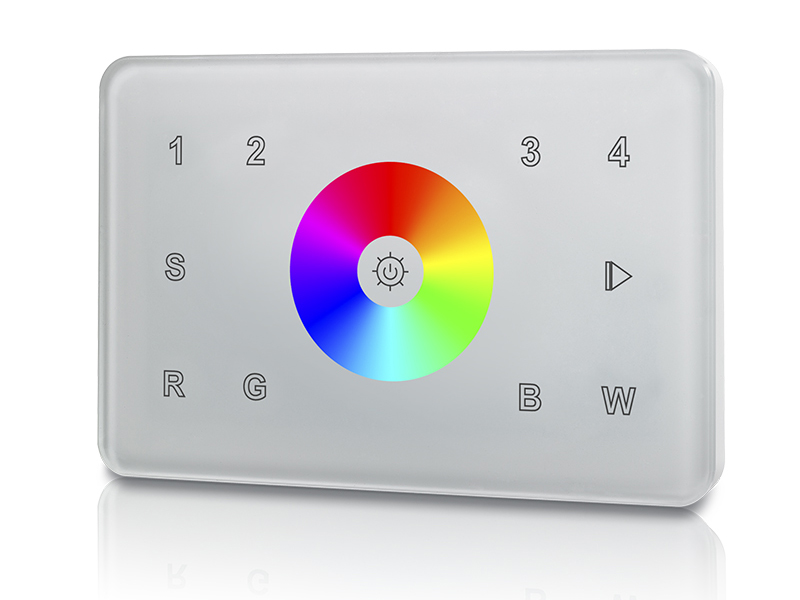

SR-2820(IT) 12-24VDC/100-240VAC 434MHz/869.5MHz 120*80*41 Touch Sensor

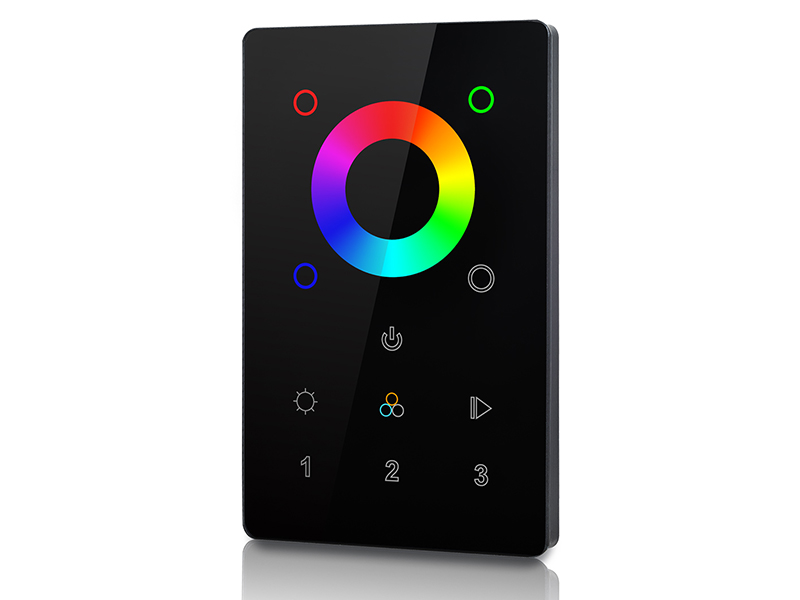

SR-2820(US) 12-24VDC/100-240VAC 916,5 MHz 75*120*41 Touch Sensor











Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

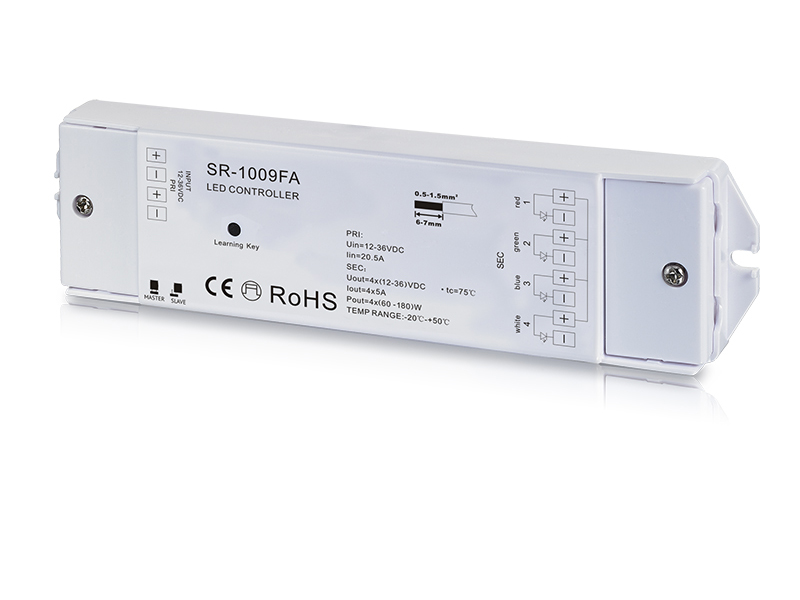

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Akım 58*168*28













Installation for SR-2820

Installation



Installation for SR-2820IT

Installation



Installation for SR-2820US

Installation



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
