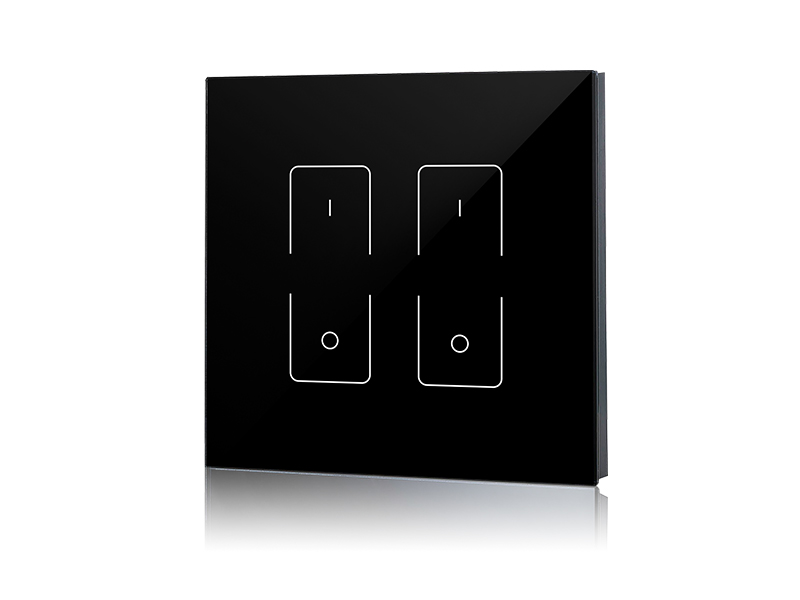

RF LED Touch Dimmer SR-2833T1
RF LED Touch Dimmer SR-2833T1 - Görsel 2
RF LED Touch Dimmer SR-2833T1 - Görsel 3
RF LED Touch Dimmer SR-2833T1 - Görsel 4

RF LED Touch Dimmer SR-2833T1

RF touch LED dimmer SR-2833T1 is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, the dimmer controller features smooth dimming and switching functions without any flickering.

Stok kodu: SR-2833T1 Kategoriler:

RF touch LED dimmer SR-2833T1 is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, the dimmer controller features smooth dimming and switching functions without any flickering. Each controller can control 2 different zones separately with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering really does good to human eyes. Humanized backlighting function enables the touch dimmer to be found even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.

Başlıca Özellikler

  • Güvenilir ve istikrarlı açma/kapama ve karartma kontrol fonksiyonu, kontrol mesafesi 20 metreyi aşabilir.
  • One button dim and switch on/off all zones
  • Control 2 different zones separately with endless receivers in each zone
  • Işıklandırmayı titreme olmadan yavaşça açıp kapatın.
  • Çıkış gücünü sınırsız bir şekilde artırmak için güç tekrarlayıcı ile çalışın.
  • Italian/Australian, US wall mounted size available as well
  • 0,1% ile 100% arasında titreşimsiz, sorunsuz karartma.
  • Backlighting for finding in the dark
  • Alıcılar, iOS ve Android sistemlerine uygulama yüklendikten sonra WiFi-RF dönüştürücü ile çalışabilir.
  • Hem DC hem de AC girişli versiyonları mevcuttur.



Uzak

Parça No. Çalışma Gerilimi Çalışma Frekansı Boyut (mm) Notlar
SR-2833T1 12-24VDC/100-240VAC 434MHz/869.5MHz 86*86*41 Touch Sensor

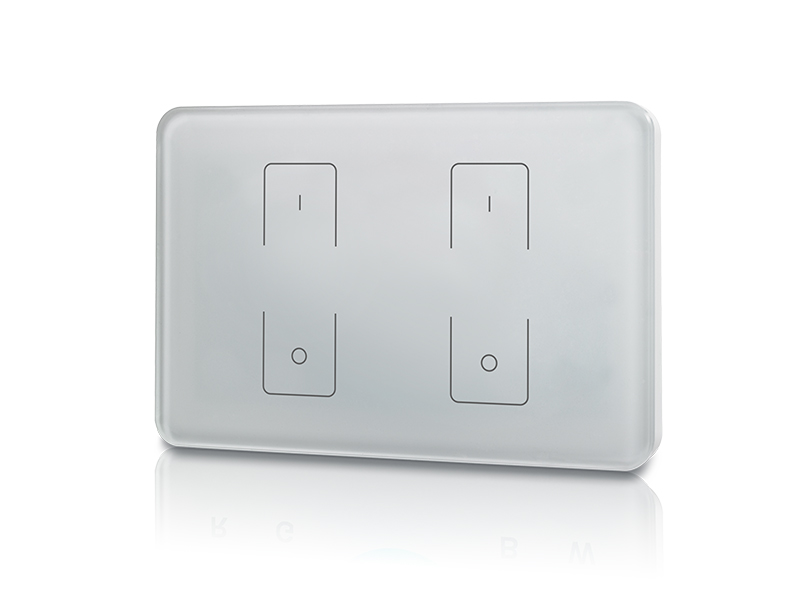

SR-2833T1(IT) 12-24VDC/100-240VAC 434MHz/869.5MHz 120*80*41 Touch Sensor

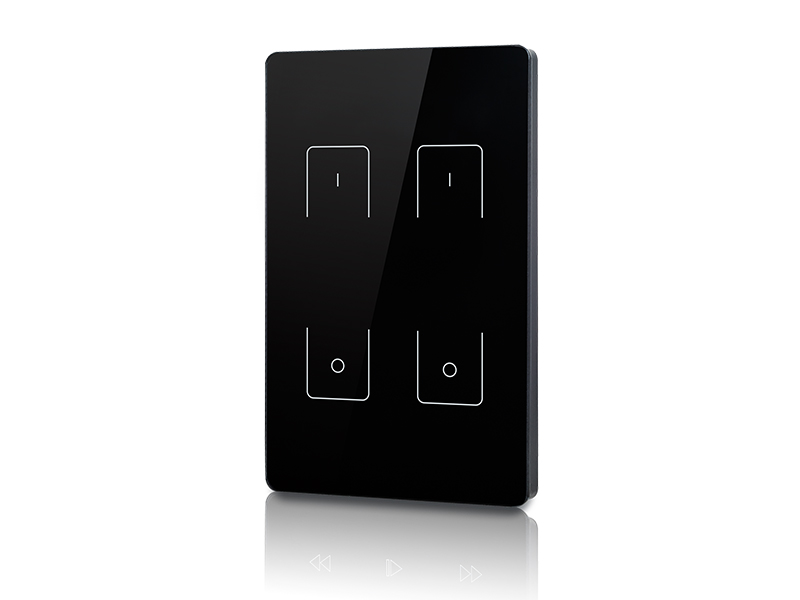

SR-2833T1(US) 12-24VDC/100-240VAC 916,5 MHz 75*120*41 Touch Sensor











Uyumlu Alıcı

Parça No. Giriş Gerilimi Çıkış Akımı Çıkış Gücü Çıktı türü Boyut (mm)

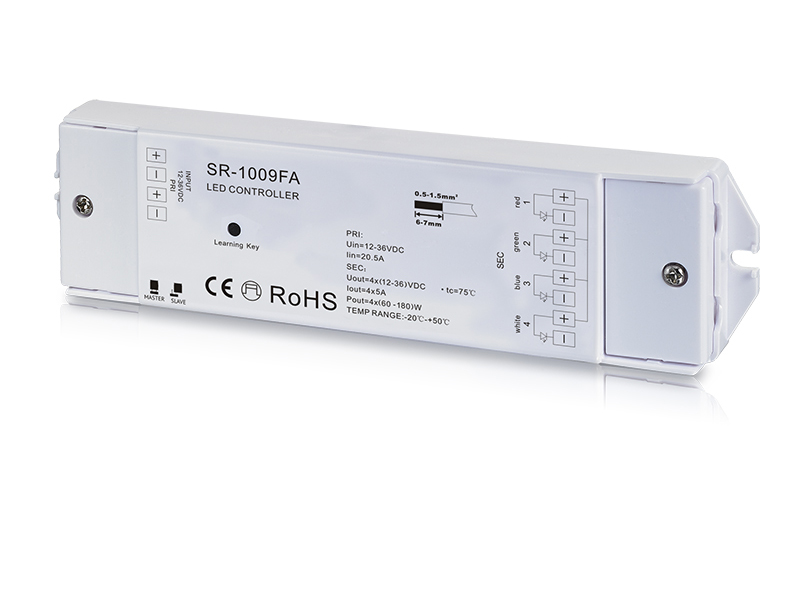

SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Sabit Gerilim 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Sabit Akım 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33,6-100,8 W Sabit Akım 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Sabit Akım 58*168*28













Kurulum Şeması

Installation



Alıcı Kablolama Şeması

Receiver Wiring Diagram

Kullanım Kılavuzu (PDF)
